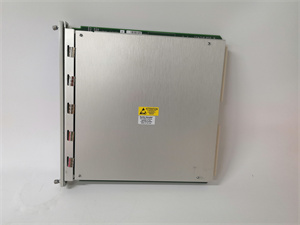

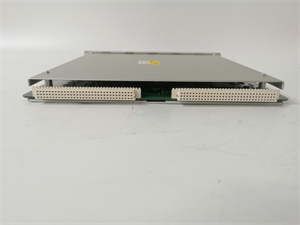

BENTLY 3500/60 163179-01

Product introduction

The 3500/60 163179-01 from Bently Nevada is a dedicated operator display module designed as the primary user interface for 3500 Machinery Protection Systems, providing real-time visualization and control of critical machinery health data. This 2-slot rack-mounted module features a 10.4-inch color touchscreen that consolidates information from all connected system components, serving as the central hub for operators to monitor, analyze, and respond to machinery conditions.

Unlike generic industrial displays, 3500/60 163179-01 is engineered specifically for machinery protection applications, offering pre-configured screens optimized for vibration, temperature, and transient data visualization. It seamlessly integrates with transient modules like the 3500/22M 138607-01, allowing operators to access detailed event recordings alongside real-time measurements, creating a complete picture of machinery health.

In industrial operations, 3500/60 163179-01 plays a pivotal role in translating complex monitoring data into actionable insights. By presenting alarm statuses, trend analysis, and transient event waveforms in an intuitive format, it empowers operators to make informed decisions quickly—whether responding to critical alarms or reviewing historical data to optimize maintenance strategies across power generation, oil and gas, and manufacturing sectors.

Core advantages and technical highlights

Optimized machinery protection visualization: 3500/60 163179-01 features pre-configured display templates specifically designed for machinery protection data, including vibration spectra, temperature profiles, and transient event waveforms captured by modules like 3500/22M 138607-01. These specialized screens eliminate the need for custom programming, providing immediate value with intuitive layouts that highlight critical parameters while minimizing information overload for operators.

Dual interaction methods: The module combines a responsive touchscreen interface with physical navigation buttons, ensuring reliable operation even in harsh industrial environments where gloves or screen contamination might affect touch functionality. This dual-control system allows operators to quickly access critical functions—from acknowledging alarms to reviewing transient data—under any operational conditions.

Comprehensive alarm management: 3500/60 163179-01 prioritizes and displays system alarms in a dedicated interface with color-coded severity indicators, timestamp tracking, and detailed diagnostic information. Operators can drill down from summary alarms to specific sensor data or transient recordings from 3500/22M 138607-01, accelerating root cause identification. Alarm history logs support trend analysis to identify recurring issues and improve system performance.

Seamless system synchronization: The display maintains precise time synchronization with all 3500 modules, ensuring that real-time measurements, historical trends, and transient events from 3500/22M 138607-01 are accurately correlated. This synchronization is critical for analyzing how machinery conditions evolve over time and how transient events relate to operational changes or maintenance activities.

Typical application scenarios

In coal-fired power plants, 3500/60 163179-01 serves as the primary operator interface for turbine and generator protection systems, displaying real-time vibration data alongside temperature readings from 3500/72M modules. When a transient event is captured by 3500/22M 138607-01 during startup, operators can immediately review the pre- and post-event waveforms on the display, comparing them to historical baselines stored in the system. This capability enables rapid assessment of whether the event represents a genuine machinery issue or normal startup behavior.

Offshore oil platforms utilize 3500/60 163179-01 in compressor monitoring systems, where the display consolidates data from multiple 3500 modules into a single operator interface. The touchscreen allows technicians to switch between real-time compressor vibration displays and transient event recordings from 3500/22M 138607-01 during surge conditions. Its rugged design withstands the harsh marine environment while providing clear visibility in both direct sunlight and low-light conditions common in offshore installations.

Automotive manufacturing facilities employ 3500/60 163179-01 to monitor production line critical machinery, including robotic welders and conveyor drives. The display shows continuous vibration trends alongside temperature data, with dedicated screens for reviewing transient events captured during equipment startups or product changeovers. Operators can quickly acknowledge alarms, review diagnostic data from 3500/22M 138607-01, and coordinate maintenance responses without leaving the production floor.

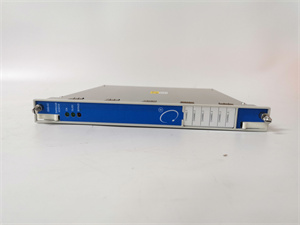

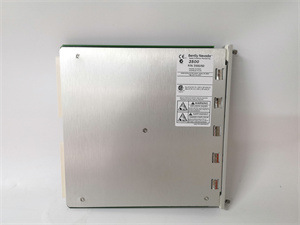

BENTLY 3500/60 163179-01

Related model recommendations

3500/22M 138607-01: Transient data module whose recordings are visualized on this display.

3500/15 127610-01: Power supply module providing regulated power to the display system.

3500/72M: Temperature monitor whose data is integrated into 3500/60 163179-01 screens.

3500/40M 140734-01: Vibration monitor whose measurements appear on this display.

3500/05-01-01-00-00-01: Communication module enabling data sharing with this display.

330106-05-30-10-02-00: Proximity probe system whose data is visualized here.

177230-01-01-05: Extension cable supporting sensor networks feeding data to this display.

3500/25 184684-01: Relay module whose status is displayed on this interface.

Installation, commissioning and maintenance instructions

Installation preparation: Before installing 3500/60 163179-01, verify the 3500 rack has two adjacent slots available and a properly sized 3500/15 127610-01 power supply. Position the rack in a location with clear visibility for operators, avoiding direct sunlight that could affect screen readability. Prepare Ethernet cabling for network integration, using shielded cables routed away from high-voltage equipment to minimize interference. Confirm the installation environment maintains temperatures within 0°C to +60°C with adequate ventilation.

Maintenance suggestions: Include 3500/60 163179-01 in monthly system inspections, checking for screen clarity, responsive touch functionality, and proper display of data from modules like 3500/22M 138607-01. Clean the touchscreen weekly with a soft, dry cloth; for stubborn contamination, use a mild, alcohol-free cleaner applied to the cloth (not directly to the screen). Verify Ethernet connectivity and backplane communication quarterly. Update firmware during scheduled maintenance to ensure compatibility with other 3500 modules and access new features. If display issues occur, check power connections and backplane communication before considering module replacement.

Service and guarantee commitment

Bently Nevada provides the 3500/60 163179-01 with a 36-month warranty covering manufacturing defects and performance issues under normal operating conditions, including display functionality, touchscreen responsiveness, and communication capabilities when used with compatible 3500 series components like 3500/22M 138607-01 and 3500/15 127610-01. Our technical support team offers expert guidance on display configuration, screen customization, and data interpretation for machinery protection applications.

We offer specialized training on 3500/60 163179-01 operation, alarm management, and advanced data visualization techniques to maximize its effectiveness in your monitoring system. Beyond the warranty period, our service agreements include technical support, firmware updates, and repair services to ensure continued reliable operation. Bently Nevada’s commitment to quality ensures that this display module remains a critical component of your machinery protection ecosystem, backed by our global network of service professionals dedicated to your operational success.
