BENTLY 3500/92 136180-01

Description

Detailed parameter table

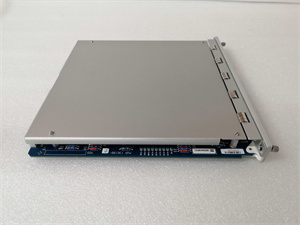

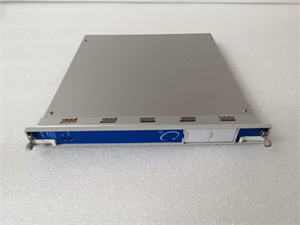

BENTLY 3500/92 136180-01

Product introduction

The 3500/92 136180-01 from Bently Nevada serves as the central nervous system of the 3500 Machinery Protection System, providing comprehensive management, configuration, and diagnostic capabilities for the entire monitoring ecosystem. This 1-slot rack-mounted module acts as the primary interface between the hardware components of the 3500 system and the software management tools, enabling seamless coordination between modules like the advanced 3500/40M 176449-01 vibration monitor and other system components.

Unlike basic communication modules, 3500/92 136180-01 is specifically engineered for system-wide oversight, offering centralized control over configuration parameters, alarm settings, and data flow across all connected devices. It serves as the critical link that ensures modules operate in harmony, synchronizes data acquisition, and provides a unified view of machinery health status for operators and maintenance teams.

In industrial monitoring architectures, 3500/92 136180-01 plays an irreplaceable role in maximizing system efficiency and reliability. By providing a single point of management for complex setups involving advanced vibration monitors like 3500/40M 176449-01, it simplifies system administration, accelerates troubleshooting, and ensures that critical machinery protection data is properly aggregated and accessible across power generation, oil and gas, and manufacturing facilities.

Core advantages and technical highlights

Unified system orchestration: 3500/92 136180-01 enables centralized configuration and management of all modules in the 3500 rack, including precise synchronization of data acquisition across devices like the 3500/40M 176449-01. This orchestration ensures that vibration data, temperature readings, and other parameters are time-aligned, enabling accurate correlation of events across different monitoring points—essential for diagnosing complex machinery issues where multiple factors contribute to equipment degradation.

Comprehensive diagnostic intelligence: The module continuously monitors the health and performance of all connected components, maintaining detailed logs of operational events, communication errors, and module-specific faults. It provides granular diagnostic information for advanced modules like 3500/40M 176449-01, including sensor connection status, calibration validity, and internal processing errors, enabling rapid identification of issues ranging from simple wiring problems to complex hardware malfunctions.

Integrated alarm management: 3500/92 136180-01 aggregates and prioritizes alarms from all system modules, including vibration alerts from 3500/40M 176449-01, enabling operators to quickly identify and respond to the most critical issues. It supports configurable alarm routing and notification protocols, ensuring that important alerts reach the appropriate personnel through the preferred channels, while reducing alarm fatigue through intelligent filtering and grouping.

Simplified firmware administration: The module facilitates coordinated firmware updates across all compatible system components, ensuring that advanced modules like 3500/40M 176449-01 maintain compatibility with other system elements. This centralized approach eliminates version mismatches that could cause communication failures or feature incompatibilities, while streamlining the process of deploying updates to enhance functionality or address security concerns.

Typical application scenarios

In large-scale power generation facilities with multiple turbine trains, 3500/92 136180-01 modules provide centralized management of distributed monitoring systems, each containing 3500/40M 176449-01 vibration monitors and other specialized modules. Engineers use the rack interface to standardize vibration monitoring parameters across all units, ensuring consistent measurement practices and alarm thresholds. The module’s diagnostic capabilities enable remote troubleshooting of vibration monitor issues, reducing the need for physical inspections of hard-to-access turbine components.

Offshore oil platforms utilize 3500/92 136180-01 to manage compressor health monitoring systems, where it coordinates operation between 3500/40M 176449-01 vibration monitors, pressure transducers, and temperature sensors. The module ensures that vibration data is properly correlated with process parameters, enabling operators to distinguish between normal operational vibrations and those indicating mechanical issues. Its centralized alarm management ensures that critical vibration alerts from subsea compressors are prioritized and delivered to onshore monitoring centers with minimal latency.

Steel mills employ 3500/92 136180-01 in rolling mill monitoring systems, where it synchronizes data collection between 3500/40M 176449-01 modules monitoring drive train vibration, tension sensors, and temperature probes. The module’s unified data view allows maintenance teams to correlate vibration patterns in gearboxes with rolling loads and material temperatures, identifying optimal operating parameters that minimize machinery wear while maintaining product quality. Its diagnostic logs help track the performance of vibration monitoring channels over time, enabling proactive replacement of sensors before they fail.

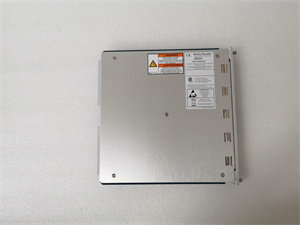

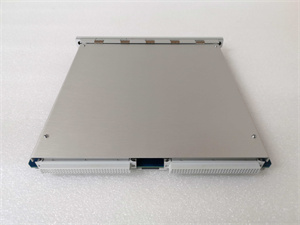

BENTLY 3500/92 136180-01

Related model recommendations

3500/40M 176449-01: Advanced vibration monitor managed and synchronized by this interface module.

3500/15 133292-01: Power supply module whose status is continuously monitored by this interface.

3500/60 163179-01: Display module that receives aggregated data from this central interface.

3500/53 133388-01: Ethernet communication module connected through this management hub.

3500/32M 149986-02: Multi-parameter monitor whose data is correlated via this interface.

3500/22M 138607-01: Transient module triggered through this centralized alarm system.

3500/05-01-02-00-00-01: Serial communication module coordinated by this interface.

System 1 Software: Platform for advanced analysis of data aggregated by this module.

Installation, commissioning and maintenance instructions

Installation preparation: Before installing 3500/92 136180-01, verify the 3500 rack has an available slot (preferably the first slot for optimal backplane communication) and that a properly sized 3500/15 133292-01 power supply is installed. Prepare Ethernet cabling for connection to the plant network, ensuring shielded cables are used to minimize electromagnetic interference. Configure initial network parameters (IP address, subnet mask, gateway) to match the plant’s network architecture before installation.

Maintenance suggestions: Include 3500/92 136180-01 in monthly system health checks, reviewing diagnostic logs for communication errors or module faults involving connected devices like 3500/40M 176449-01. Verify that all modules appear as “healthy” in the management interface and that data synchronization is maintained. Perform quarterly firmware compatibility checks, planning coordinated updates for the interface module and all managed components during scheduled maintenance windows. Inspect Ethernet and backplane connections for corrosion or 松动，cleaning contacts as needed. Test redundancy features annually by simulating a primary communication failure and verifying failover to backup paths.

Service and guarantee commitment

Bently Nevada provides the 3500/92 136180-01 with a 36-month warranty covering manufacturing defects and performance issues under normal operating conditions, including management functionality, diagnostic accuracy, and communication reliability when used with compatible components like 3500/40M 176449-01 and 3500/15 133292-01. Our technical support team offers specialized guidance on system architecture design, configuration best practices, and advanced troubleshooting of complex integration issues.

We offer comprehensive training on 3500 system management, including module configuration, alarm management, and diagnostic interpretation specific to this central interface. Beyond the warranty period, our service agreements include priority technical support, firmware updates, and performance validation services to ensure continued reliable operation of the entire monitoring system. Bently Nevada’s commitment to quality ensures robust management of your machinery protection infrastructure, backed by our global network of experts dedicated to maximizing the availability and performance of your critical equipment monitoring systems.
