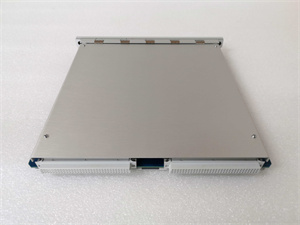

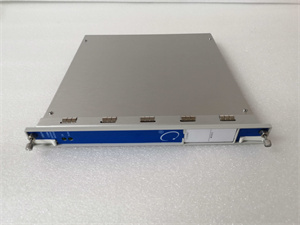

BENTLY 3500/92 136180-01

Product introduction

The 3500/92 136180-01 from Bently Nevada is a critical rack interface module that serves as the central management component of the 3500 Machinery Protection System, enabling configuration, monitoring, and diagnostics of the entire system. This 1-slot rack-mounted module acts as the primary interface between the 3500 rack hardware and software management tools, facilitating communication between all connected modules and providing essential system oversight capabilities.

Unlike standard communication modules, 3500/92 136180-01 is specifically designed for system management rather than data transmission, offering specialized functionality for configuring complex monitoring setups involving modules like the 3500/32M 149986-02 multi-parameter monitor. It enables centralized control over module parameters, alarm settings, and data acquisition schedules, ensuring consistent operation across the entire protection system.

In industrial monitoring ecosystems, 3500/92 136180-01 plays an indispensable role in maintaining system integrity and performance. By providing a unified management interface for modules like 3500/32M 149986-02, it simplifies complex configuration tasks, enables efficient troubleshooting through comprehensive diagnostics, and ensures all system components work in harmony to provide reliable machinery protection in power generation, oil and gas, and manufacturing facilities.

Core advantages and technical highlights

Centralized system management: 3500/92 136180-01 provides a single point of control for configuring and monitoring all modules in the 3500 rack, including advanced units like the 3500/32M 149986-02. This centralized approach eliminates the need for individual module configuration, ensuring consistent parameter settings across the system and simplifying complex multi-module setups where synchronization between temperature, pressure, and vibration monitoring is critical.

Comprehensive diagnostic capabilities: The module continuously monitors the health of all connected components, logging faults, communication errors, and performance degradation in real time. It provides detailed diagnostic information for troubleshooting issues with modules like 3500/32M 149986-02, including error codes, signal quality metrics, and historical fault data that accelerates root cause identification and reduces system downtime.

Simplified firmware management: 3500/92 136180-01 enables coordinated firmware updates across all compatible modules in the rack, ensuring version compatibility between interdependent components like the 3500/32M 149986-02 and communication modules. This capability eliminates the risk of operational issues caused by mismatched firmware versions and simplifies the process of keeping the entire system up to date with the latest features and security patches.

Redundant communication paths: The module maintains dual communication paths—direct backplane connection to all rack modules and Ethernet connectivity to external management systems—ensuring uninterrupted access to system data even if one communication channel fails. This redundancy is critical for maintaining visibility of critical monitoring data from modules like 3500/32M 149986-02 in mission-critical applications.

Typical application scenarios

In large-scale power generation facilities with multiple 3500 racks, 3500/92 136180-01 modules provide centralized management of distributed monitoring systems, including racks equipped with 3500/32M 149986-02 multi-parameter monitors. Engineers use the rack interface to configure temperature and strain monitoring parameters across all turbine and generator protection systems, ensuring consistent measurement practices and alarm settings. The module’s diagnostic capabilities enable remote troubleshooting of issues in any rack, reducing the need for on-site visits to remote plant locations.

Oil refineries utilize 3500/92 136180-01 to manage compressor train monitoring systems, where it coordinates configuration between 3500/32M 149986-02 modules, vibration monitors, and pressure transducers. The module ensures that temperature and pressure alarm thresholds are properly aligned with vibration limits, creating a cohesive protection strategy for critical rotating equipment. During scheduled maintenance, technicians use the rack interface to perform firmware updates across all system components simultaneously, minimizing shutdown time.

Chemical processing plants employ 3500/92 136180-01 in redundant 3500 rack configurations, where it synchronizes monitoring parameters between primary and backup systems. The module ensures that 3500/32M 149986-02 settings are mirrored in both racks, enabling seamless failover in the event of a primary system issue. Its diagnostic logging helps track process-related trends across multiple production lines, supporting predictive maintenance of both monitoring equipment and the machinery it protects.

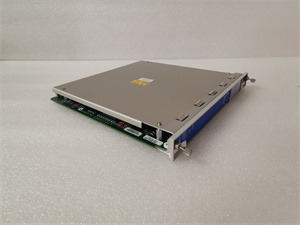

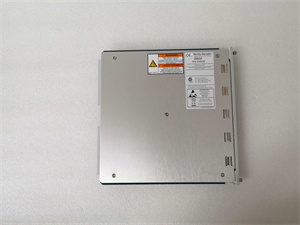

BENTLY 3500/92 136180-01

Related model recommendations

3500/32M 149986-02: Multi-parameter monitor managed by this rack interface module.

3500/15 133292-01: Power supply module whose status is monitored by this interface.

3500/60 163179-01: Display module configured through this rack management interface.

3500/53 133388-01: Communication module integrated via this system interface.

3500/42M 176449-02: Vibration/position monitor managed by this rack interface.

3500/34 125696-01: Pressure monitor whose parameters are configured through this module.

3500/05-01-03-00-00-00: Serial communication module coordinated by this interface.

177230-01-01-05: Extension cable supporting sensors in systems managed by this module.

Installation, commissioning and maintenance instructions

Installation preparation: Before installing 3500/92 136180-01, verify the 3500 rack has an available slot and that a properly sized 3500/15 133292-01 power supply is installed. The rack interface should be positioned in the first slot of the rack for optimal backplane communication with other modules. Prepare Ethernet cabling for connection to the plant network, ensuring proper shielding to minimize interference. Configure network settings (IP address, subnet mask, gateway) before installation to enable immediate communication with management software.

Maintenance suggestions: Include 3500/92 136180-01 in monthly system health checks, reviewing diagnostic logs for communication errors or module faults. Verify that all connected modules like 3500/32M 149986-02 appear as “healthy” in the management interface. Perform quarterly firmware compatibility checks, planning coordinated updates for the rack interface and all managed modules during scheduled maintenance windows. Inspect Ethernet connections for corrosion or 松动，cleaning contacts as needed. Test redundant communication paths annually by temporarily disconnecting the primary Ethernet link and confirming continued data access through backup channels.

Service and guarantee commitment

Bently Nevada provides the 3500/92 136180-01 with a 36-month warranty covering manufacturing defects and performance issues under normal operating conditions, including management functionality, diagnostic capabilities, and communication reliability when used with compatible 3500 series components like 3500/32M 149986-02 and 3500/15 133292-01. Our technical support team offers expert guidance on system configuration, troubleshooting, and best practices for rack management.

We offer specialized training on 3500 system architecture, configuration management, and diagnostic procedures specific to this rack interface module. Beyond the warranty period, our service agreements include technical support, firmware updates, and replacement services to ensure continued reliable system management. Bently Nevada’s commitment to quality ensures robust management of your 3500 protection system throughout the module’s operational lifecycle, backed by our global network of service professionals dedicated to maximizing the availability and performance of your machinery monitoring infrastructure.
