Description
Key Technical Specifications
-
Model Number: 3500/92-03-01-00
-
Manufacturer: Bently Nevada (Baker Hughes)
-
Protocol Support: Modbus TCP, Ethernet IP, Modbus RTU, RS-485 (software-configurable)
-
Ports: 2x 10/100Mbps Ethernet (RJ45), 1x RS-485 (terminal block)
-
Data Rate: Ethernet: 10/100 Mbps; RS-485: Up to 115.2 kbps
-
Operating Temperature: 0°C to +65°C (rack-mounted)
-
Isolation: 500Vrms port-to-rack (Ethernet/RS-485), 1500Vdc channel-to-channel
-
Power Consumption: 10W nominal (24V DC input from 3500 rack)
-
Memory: 256MB RAM, 2GB Flash (for logs/config storage)
-
Dimensions: 119mm x 25mm x 102mm (WxHxD, 3500 half-height slot)
-
Weight: 0.14kg (lightweight for rack mounting)

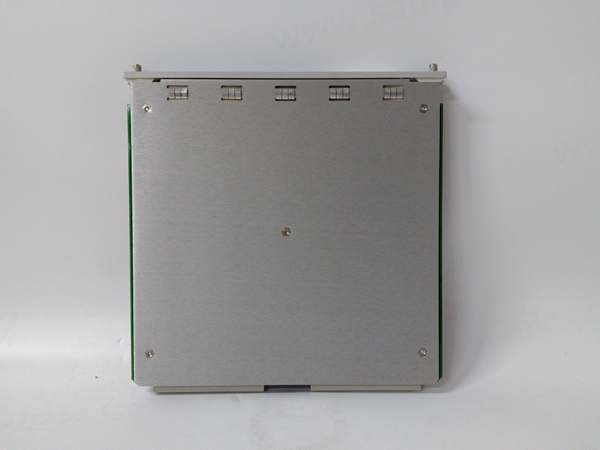

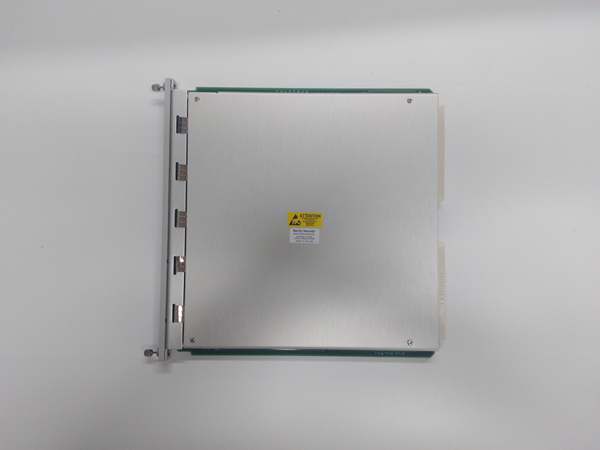

Bently Nevada 3500/92-03-01-00
Field Application & Problem Solved
In the field, the 3500 Monitoring System is the gold standard for machinery protection, but its data is trapped in the rack unless you can get it to the control room. The biggest headache? Older communication modules (like the base 3500/92) lack robust protocol support and redundancy, leading to dropped packets in noisy refineries or failed integrations with modern DCS/PLCs. This 03-01-00 variant solves that by adding enhanced data logging and dual Ethernet ports for failover. You’ll find it in power plants streaming 3500/42M vibration data to OSIsoft PI Historians, in paper mills feeding compressor temperature readings to Allen-Bradley PLCs, or in chemical plants integrating speed signals into Yokogawa DCS. Its core value is reliability: dual Ethernet ports prevent single-point communication failures (critical for 24/7 operations), and support for Modbus TCP/Ethernet IP ensures compatibility with 90% of plant networks. For example, in a Gulf Coast refinery, it eliminated “data lag” alarms by logging 3500/61 temperature trends at 1-second intervals—allowing operators to correlate temp spikes with catalyst bed changes.
Installation & Maintenance Pitfalls (Expert Tips)
-
Protocol Mismatch with DCS: Rookies assume the gateway speaks the same protocol as the DCS. Always verify the DCS’s preferred protocol (e.g., Ethernet IP vs. Modbus TCP) and configure the 3500/92 accordingly. In a Texas power plant, a tech left it on Modbus TCP while the DCS expected Ethernet IP—no data flowed for 48 hours.
-
Ignoring Ethernet Redundancy: The dual ports need LACP or spanning tree configured for failover. Without it, a switch failure drops the link. On a Canadian turbine, this caused a 10-minute outage before we enabled port bonding.
-
Shield Grounding Errors: RS-485 cables require shielded twisted-pair. Ground shields only at the gateway(not the 3500 rack). A Louisiana paper mill had intermittent data loss until we removed the shield ground at the rack—noise from a nearby motor was the culprit.
-
Skipping Log Rotation: The 2GB Flash fills up with logs if not managed. Set a weekly purge in Bently System 1 to archive old logs to the plant server—don’t let it overwrite critical configuration files.
-
Neglecting Firmware Updates: Old firmware lacks security patches for Ethernet IP. Update every 2 years, but first back up configs via USB. I once bricked a module by updating mid-shift—schedule updates during maintenance windows.

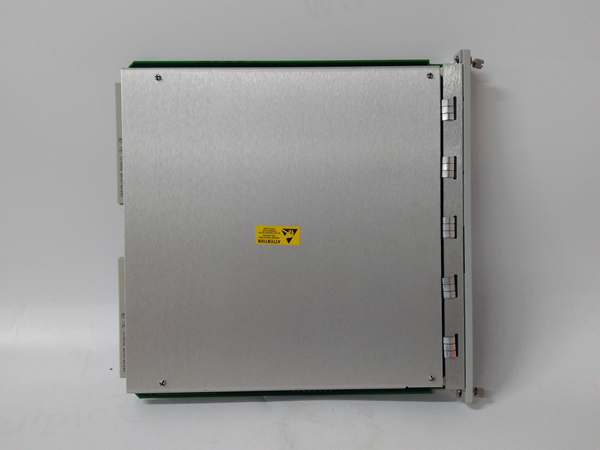

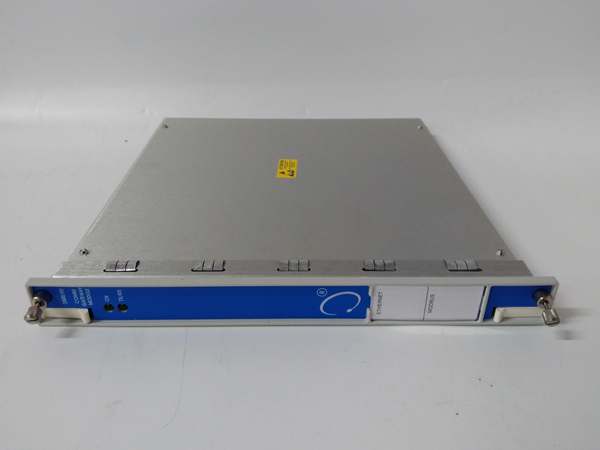

Bently Nevada 3500/92-03-01-00
Technical Deep Dive & Overview
The 3500/92-03-01-00 is a communication gateway for Bently’s 3500 Machinery Protection System, designed to bridge rack data with external control networks. It acts as a “data courier”: via the 3500 rack backplane, it polls modules like 3500/42M (vibration), 3500/61 (temperature), and 3500/40M (speed) for real-time values, alarm statuses, and diagnostics. An onboard processor formats this data into protocol-specific packets—for Modbus TCP, it maps 3500 data points to register addresses; for Ethernet IP, it builds a tag database matching the PLC’s schema. The dual Ethernet ports support daisy-chaining or redundant links (using IEEE 802.3ad), while the RS-485 port accommodates legacy devices. Isolation (500Vrms) prevents ground loops, critical in petrochemical plants. Power comes from the 3500 rack’s 24V DC supply, and a watchdog timer resets the module if it hangs. In short, it’s the “voice” of the 3500 system—translating machine health data into a language the control room understands, without manual intervention.
