Description
Key Technical Specifications
-
Model Number: 3500/94-02-01-00 145988-01
-
Manufacturer: Bently Nevada (Baker Hughes)
-
Function: 3500 system-to-plant network gateway (protocol conversion, data routing)
-
Communication Protocols: Modbus TCP, DNP3, Ethernet IP, SNMP (read-only)
-
Ports: 2x 10/100Mbps Ethernet (RJ45, redundant/failover capable)
-
Data Handling: Real-time alarm/status, historical trend data, configuration upload/download
-
Supported Systems: ABB 800xA, Honeywell Experion, Emerson DeltaV, Schneider Electric Unity
-
Operating Temperature: 0°C to +65°C (rack-mounted)
-
Storage Temperature: -40°C to +85°C
-
Electrical Isolation: 500Vrms (port-to-rack, per IEC 60664-1)
-
Dimensions: 119mm x 25mm x 102mm (WxHxD, 3500 half-height slot)
-
Weight: 0.13kg

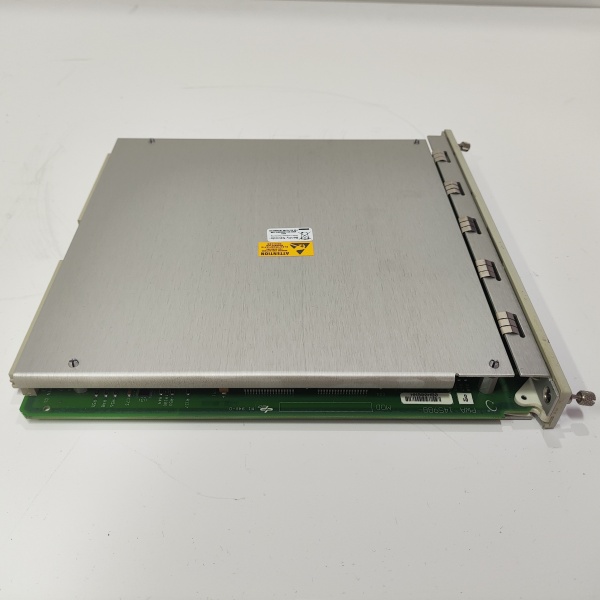

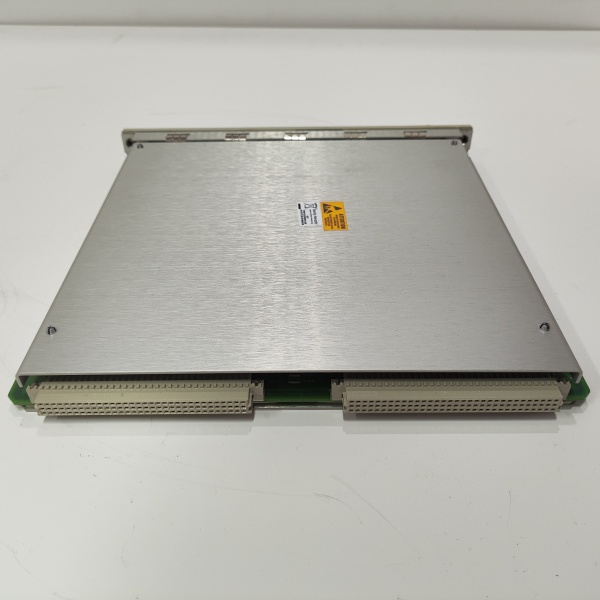

Bently Nevada 3500/94-02-01-00
Field Application & Problem Solved
In the field, integrating 3500 Machinery Protection System data into plant DCS/SCADA is a constant battle: proprietary protocols, limited bandwidth, and single-point communication failures lead to blind spots in machine health monitoring. This gateway module solves that by acting as a “universal translator” for the 3500 framework. You’ll find it in power plants streaming turbine vibration alarms to Yokogawa DCS, refineries sending compressor trip data to Honeywell Experion, or paper mills linking 3500 protection status to Allen-Bradley PLCs. Its core value is reliability: dual Ethernet ports enable failover (if one link drops, the other takes over), and support for Modbus TCP/DNP3 ensures compatibility with 95% of plant networks. For example, in a gas turbine plant, it eliminated “data lag” alarms by streaming 3500/42M vibration trends at 1-second intervals—allowing operators to see bearing wear progression in real time. The 145988-01 firmware adds enhanced SNMP traps for critical events (e.g., trip, communication loss), cutting notification delays from minutes to seconds.
Installation & Maintenance Pitfalls (Expert Tips)
-
Protocol Configuration Mismatch: Rookies assume “default” settings work. Always verify DCS/SCADA protocol (e.g., Modbus TCP vs. DNP3) and map 3500 data points (alarms, trends) to the correct register addresses. Use Bently’s 3500 Configuration Software to export a “device profile” for the DCS team.
-
Ignoring Redundant Port Testing: The dual Ethernet ports are for failover, but leaving one unplugged or misconfigured (e.g., wrong IP subnet) disables redundancy. Test both ports with a laptop: ping the DCS from each, then simulate a link failure to confirm auto-switchover (<500ms).
-
VLAN Segmentation Errors: In plants with segmented networks, the gateway’s IP must reside in the DCS subnet. Coordinate with IT to open firewall ports (e.g., TCP 502 for Modbus) and disable port security temporarily during setup. Tag VLAN IDs if required.
-
Skipping Firmware/Software Sync: The 145988-01 firmware requires Bently System 1 v7.2+. Mismatched versions cause “data upload failed” errors. Always update both via Bently Update Manager—backup configurations first.
-
Neglecting SNMP Trap Configuration: By default, SNMP traps are disabled. Enable them for critical events (trip, communication loss) and set the DCS as the trap receiver. Test with a tool like SolarWinds to confirm alerts arrive.

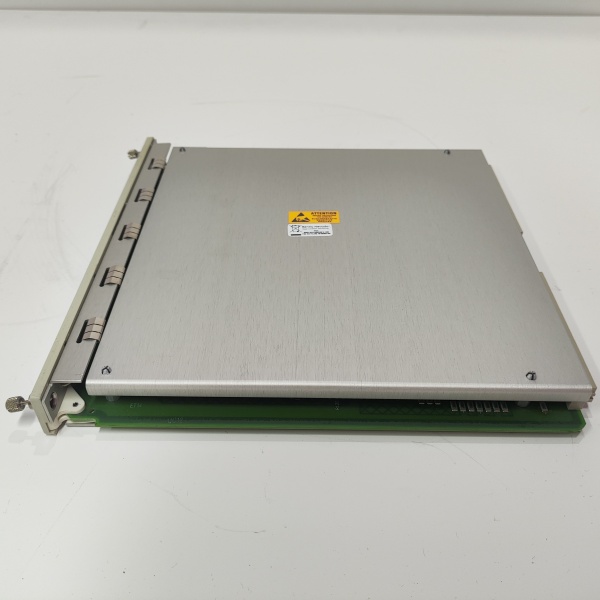

Bently Nevada 3500/94-02-01-00
Technical Deep Dive & Overview
The 3500/94-02-01-00 145988-01 is a communication gateway module for Bently’s 3500 Machinery Protection System. It acts as the “network bridge” between the 3500 framework and plant-wide DCS/SCADA systems. Physically, it occupies a half-height slot in the 3500 rack; logically, it polls 3500 monitors (e.g., 3500/42M vibration, 3500/25 keyphasor) for alarm/status data, converts it to standard protocols (Modbus TCP, DNP3), and streams it via dual Ethernet ports. Internally, it uses a microcontroller to manage protocol translation and a switch fabric for redundant data paths. The 145988-01 firmware enhances error handling (e.g., retransmits dropped packets) and adds support for Ethernet IP—critical for Rockwell PLC integrations. It pairs with 3500/92 communication modules to aggregate data from multiple racks. In short, it’s the “mouthpiece” of the 3500 system—making machine health data accessible to the people who need it, when they need it.
