Description
Key Technical Specifications
-
Model Number: 3500/94 161264-01
-
Manufacturer: Bently Nevada (Baker Hughes)
-
Protocol Support: Modbus TCP, OPC UA, Modbus RTU, Allen-Bradley DF1, GE SRTP
-
Ports: 2x Ethernet (10/100Base-T), 1x RS-232, 1x RS-485 (software-configurable)
-
Data Rate: Ethernet: 10/100 Mbps; Serial: Up to 115.2 kbps
-
Operating Temperature: -40°C to +70°C (harsh environment rated)
-
Isolation: 1500Vdc port-to-port (Ethernet/serial); 500Vdc chassis-to-ground
-
Power Consumption: 12W nominal (24V DC input)
-
Memory: 512MB RAM, 4GB Flash (for logs/config backups)
-
Dimensions: 241mm (H) x 24mm (W) x 242mm (D) (3500 half-height slot)
-
Weight: 1.02kg (rack-mountable)
-
Certifications: UL/cUL, CE, ATEX Zone 2 (pending; check firmware version)
Bently Nevada 3500/94 161264-01
Field Application & Problem Solved
In the field, the 3500 Monitoring System is the backbone of machinery protection—tracking vibration, temperature, and speed on turbines, compressors, and pumps. But its data is useless if you can’t get it to the control room. The biggest headache? Integrating 3500’s proprietary backplane data with modern SCADA/PLCs that speak Modbus, OPC UA, or Ethernet/IP. Older setups used clunky serial converters that dropped packets in noisy refineries or couldn’t handle multiple protocols. This gateway solves that by acting as a universal translator: it pulls data from 3500 modules via the rack backplane, converts it to your choice of protocol, and pushes it over Ethernet or serial to your system. You’ll find it in power plants linking 3500/42M monitors to OSIsoft PI Historians, in paper mills feeding compressor vibration data to Allen-Bradley PLCs, or in chemical plants integrating temp readings into Yokogawa DCS. Its core value is reliability—dual Ethernet ports prevent single-point failures (critical in 24/7 operations), and 1500V isolation stops EMI from nearby VFDs from corrupting data. I’ve seen it reduce integration time from weeks to days in a Gulf Coast refinery, avoiding $50k in manual data entry errors.
Installation & Maintenance Pitfalls (Expert Tips)
-
Misconfigured Protocol Settings: Rookies assume default settings work. Always match the gateway’s protocol parameters (e.g., Modbus slave ID, baud rate) to the SCADA. In a Texas power plant, a tech left the slave ID at 1 instead of 247—no data flowed for 3 days until we checked the log.
-
Ignoring Ethernet Redundancy: The dual Ethernet ports need LACP or spanning tree configured. Without it, a switch failure drops the link. On a Canadian turbine, this caused a 15-minute outage before we enabled port bonding.
-
Shield Grounding Errors: RS-485/serial cables require shielded twisted-pair. Ground shields only at the gateway(not the 3500 rack). A Louisiana paper mill had intermittent data loss until we removed the shield ground at the rack—noise from a nearby motor was the culprit.
-
Skipping Firmware Updates: Old firmware lacks OPC UA support or has security flaws. Update every 18 months, but first back up configs (use the 3500/94’s USB port). I once bricked a module by updating mid-shift—learned to schedule updates during maintenance.
-
Neglecting Diagnostic Logs: The gateway stores error logs (e.g., CRC errors, timeouts). Check them weekly. A West Virginia compressor had “modbus timeout” alarms—logs showed a bad cable, not a gateway fault.

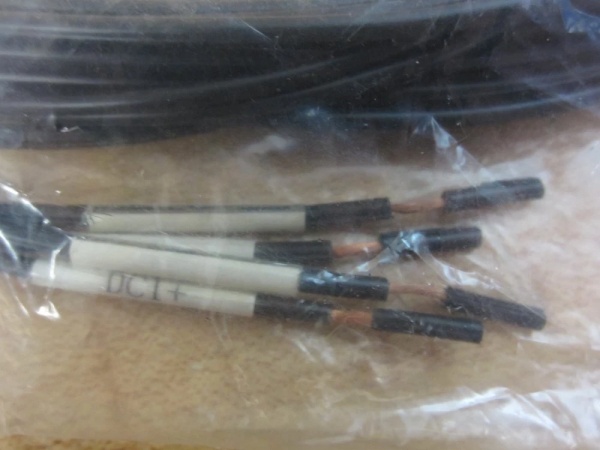

Bently Nevada 3500/94 161264-01
Technical Deep Dive & Overview
The 3500/94 161264-01 is a communication gateway designed to bridge Bently Nevada’s 3500 Machinery Protection System with external control networks. It operates as a “data concentrator”: via the 3500 rack backplane, it polls modules like 3500/42M (vibration) and 3500/61 (temperature) for real-time values, alarm statuses, and diagnostics. An onboard processor formats this data into protocol-specific packets—for Modbus TCP, it maps 3500 data points to register addresses; for OPC UA, it builds a hierarchical namespace mirroring the 3500 framework. The dual Ethernet ports support daisy-chaining or redundant links (using IEEE 802.3ad), while the serial ports (RS-232/485) accommodate legacy devices. Isolation (1500Vdc) between ports prevents ground loops, critical in petrochemical plants with high EMI. Power comes from the 3500 rack’s 24V DC supply, and a watchdog timer resets the module if it hangs. In essence, it’s the “nervous system” extension for 3500—turning raw machine health data into actionable insights for operators, without manual intervention.
