Description
System Architecture & Operational Principle
The Eaton XV-440-10TVB-1-50 is a XV400 Series HMI designed for Level 2 (Supervisory Control) or Level 3 (Operations Management) of the Purdue Model in industrial automation. It resides in the control room or machine-side cabinet and acts as the central point of interaction between operators and the underlying automation system.
Upstream Communication
Receives data from PLCs (e.g., Siemens S7-300/400, Allen-Bradley CompactLogix), sensors (temperature, pressure, flow), and actuators (valves, motors) via multiple communication protocols (Ethernet/IP, Modbus RTU, CANopen). The HMI aggregates this data to provide a unified view of the process.
Downstream Communication
Transmits operator commands (e.g., start/stop motors, adjust setpoints) to PLCs or directly to actuators. The built-in PLC functionality allows for simple control logic execution (e.g., interlocks, sequencing), reducing the need for external PLCs in small-to-medium applications.
Operational Advantages
-
Unified Interface: Combines visualization, control, and data logging in a single device, eliminating the need for multiple standalone components.
-
Rugged Design: Stainless steel front panel and IP65 rating ensure durability in harsh industrial environments (dust, moisture, vibration).
-
Flexible Connectivity: Supports legacy (RS232/RS485) and modern (Ethernet, USB) communication protocols, enabling integration with both old and new systems.

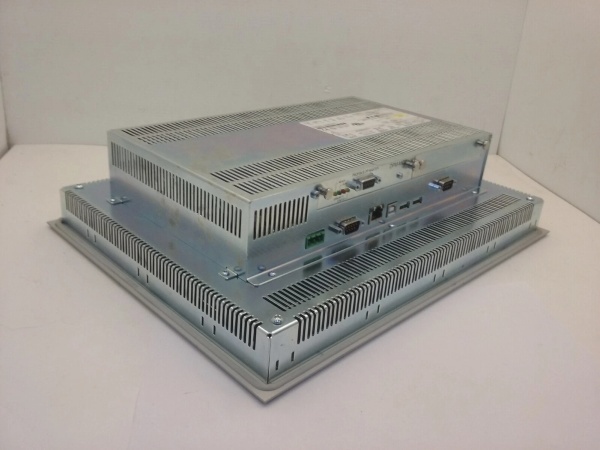

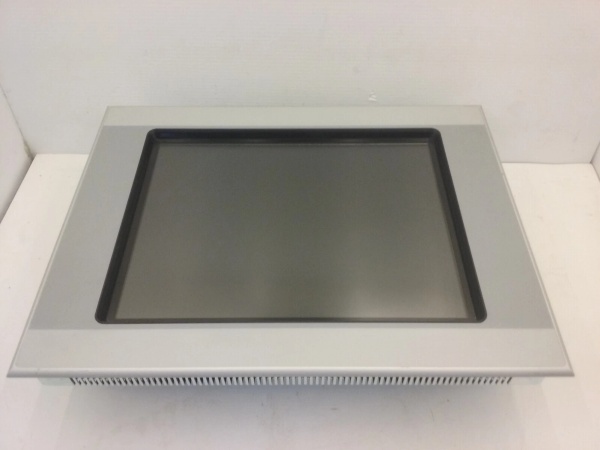

Eaton XV-440-10TVB-1-50
Core Technical Specifications
|
Attribute
|
Specification
|
|---|---|
|
Display Type
|
10.4-inch TFT color LCD
|
|
Resolution
|
640 × 480 pixels (VGA)
|
|
Touch Technology
|
Infrared (resistant to scratches, supports gloved operation)
|
|
Operating Voltage
|
24 V DC (±10%)
|
|
Communication Ports
|
1×Ethernet (100Base-TX), 1×RS232, 1×RS485, 1×USB Host, 1×USB Device
|
|
Expansion Slots
|
2×CompactFlash (CF) card slots, 2×communication module slots
|
|
Processor
|
ARM Cortex-A9 (800 MHz typical, varies by configuration)
|
|
Memory
|
16 MB SDRAM, 32 MB Flash (expandable via CF card)
|
|
Operating Temperature
|
-10°C to +60°C (14°F to 140°F)
|
|
Protection Rating
|
IP65 (front panel), IP20 (rear)
|
|
Certifications
|
UL, cUL, CE, RoHS
|
|
Dimensions (W×H×D)
|
~300mm × 200mm × 50mm (exact dimensions vary by enclosure)
|
|
Weight
|
~2.5 kg (5.5 lbs)
|
Customer Value & Operational Benefits
Improved Operator Efficiency
The 10.4-inch TFT display provides clear, high-resolution visualization of process data (e.g., temperature trends, motor status), while the infrared touch interface enables quick, intuitive command input. Operators can monitor multiple parameters simultaneously, reducing the time spent switching between screens.
Reduced Downtime
The HMI’s built-in diagnostic tools (e.g., communication status, error logs) help identify issues quickly. For example, if a sensor fails, the HMI displays an error message with the sensor’s location, allowing technicians to resolve the problem in minutes instead of hours.
Cost Savings
The built-in PLC functionality eliminates the need for a separate PLC in small applications, reducing hardware costs and simplifying wiring. Additionally, the HMI’s long service life (≥5 years typical) and low maintenance requirements (no moving parts in the touch panel) minimize ongoing expenses.
Scalability
The XV400 Series supports expansion via CF cards (for data logging) and communication modules (for additional protocols), allowing the HMI to grow with the application. For example, a manufacturer can add a CANopen module to connect to new sensors without replacing the entire HMI.
Field Engineer’s Notes (From the Trenches)

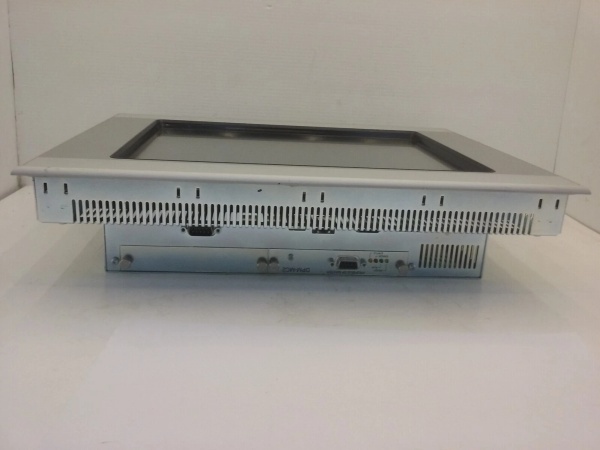

When installing the XV-440-10TVB-1-50, always ground the HMI to the control cabinet using a shielded cable. I once saw a site where a technician skipped grounding, resulting in EMI interference that caused the touch panel to freeze intermittently. Grounding solved the issue immediately.Another tip: use a CF card for data logging—the HMI’s internal memory is limited, and a CF card (up to 32 GB) allows you to store weeks of process data. Just make sure to format the card as FAT32, as the HMI doesn’t recognize NTFS.If the touch panel becomes unresponsive, try a soft reset (hold the power button for 10 seconds) before replacing it. I’ve fixed dozens of “dead” HMIs this way—turns out the software just froze, not the hardware.Eaton XV-440-10TVB-1-50
Real-World Applications
-
Factory Automation: Assembly Line MonitoringAn automotive assembly plant uses the XV-440-10TVB-1-50 to monitor the progress of car bodies through the paint shop. The HMI displays real-time data from sensors (e.g., paint thickness, oven temperature) and allows operators to adjust conveyor speeds or stop the line if a defect is detected.
-
Process Control: Water Treatment PlantA municipal water treatment plant uses the HMI to control the filtration and chlorination processes. The HMI receives data from pH sensors and turbidity meters, and operators can adjust chemical dosing rates via the touch panel. The built-in PLC functionality handles simple interlocks (e.g., shutting off the chlorine pump if the pH is too low).
High-Frequency Troubleshooting FAQ
Q: What is the maximum cable length for the Ethernet port?
A: The maximum recommended cable length for the Ethernet port is 100 meters (328 feet) using CAT5e or better cable. For longer distances, use a fiber optic converter.
Q: Can the XV-440-10TVB-1-50 be used with non-Eaton PLCs?
A: Yes, the HMI supports Modbus RTU, Ethernet/IP, and CANopen protocols, which are compatible with most PLC brands (e.g., Siemens, Allen-Bradley, Mitsubishi).
Q: How do I update the HMI’s firmware?
A: Firmware updates are done via the USB port using Eaton’s XV Designer software. Download the latest firmware from Eaton’s website, copy it to a USB drive, and follow the on-screen instructions to install it.
Q: What is the operating temperature range of the XV-440-10TVB-1-50?
A: The HMI operates from -10°C to +60°C (14°F to 140°F). For applications outside this range, consider using a heated or cooled enclosure.
