Description
System Architecture & Operational Principle
The Emerson A6140-9199-00058 is a dual-channel shaft absolute vibration monitor within the Emerson EPRO AMS 6500 Machinery Health Monitoring System, designed for Level 1 (Device) or Level 2 (Control) of the Purdue Model in industrial automation. It resides in the AMS 6500 rack (occupying 1 slot) and serves as the bridge between eddy-current proximity probes (e.g., Bently Nevada 3300 XL series) and higher-level systems (e.g., DCS, SCADA).
Upstream Communication
Receives raw vibration signals from up to two eddy-current proximity probes via the AMS 6500 rack’s backplane. These probes measure the distance between the probe tip and the rotating shaft, generating a signal proportional to the shaft’s vibration.
Downstream Communication
Transmits processed vibration data (e.g., peak velocity, peak acceleration) to the AMS 6500 system, which compares the data to user-programmable alarm setpoints. If a threshold is exceeded, the system triggers alarms (e.g., “vibration > 10 mm/s”) or shutdowns to protect the machinery.
Operational Advantages
-
High Precision: Measures vibration with ±2% full-scale accuracy, critical for detecting incipient faults (e.g., bearing wear, rotor imbalance).
-
Dual-Channel Flexibility: Monitors two independent channels simultaneously, allowing for comprehensive vibration analysis (e.g., vertical and horizontal vibration).
-
Hot-Swappable Design: Can be replaced without shutting down the AMS 6500 system, minimizing downtime during maintenance.
Core Technical Specifications
|
Attribute
|
Specification
|
|---|---|
|
Channel Count
|
2 independent channels
|
|
Input Type
|
Eddy-current proximity probe signals
|
|
Frequency Range
|
10 Hz–10 kHz
|
|
Measurement Range
|
Peak velocity: 0.01 mm/s–100 mm/s; Peak acceleration: 0.1 g–100 g
|
|
Accuracy
|
±2% full-scale
|
|
Power Supply
|
24 VDC (±10% tolerance)
|
|
Power Consumption
|
Max. 6 W (250 mA at 24 VDC)
|
|
Operating Temperature
|
-20°C to +70°C (-4°F to 158°F)
|
|
Storage Temperature
|
0°C to +65°C (32°F to 149°F)
|
|
Humidity Tolerance
|
5%–95% non-condensing
|
|
Vibration Resistance
|
0.15 mm (10–55 Hz); 19.6 mm/s² (55–150 Hz)
|
|
Shock Resistance
|
98 m/s² peak (16 ms)
|
|
Certifications
|
CE, UL, ATEX (hazardous locations)
|
|
Compatibility
|
AMS 6500 Classic racks; works with Bently Nevada 3300 XL proximity probes
|

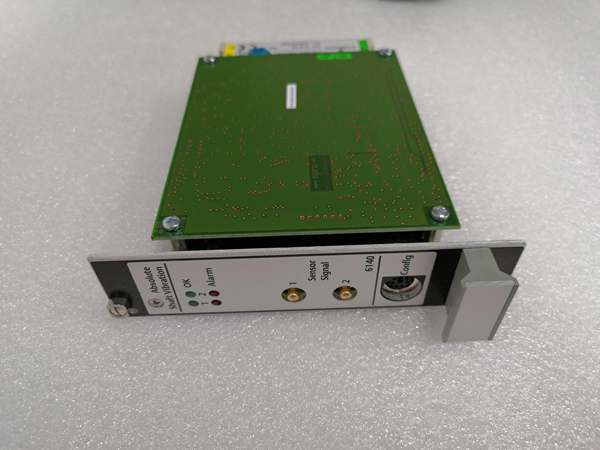

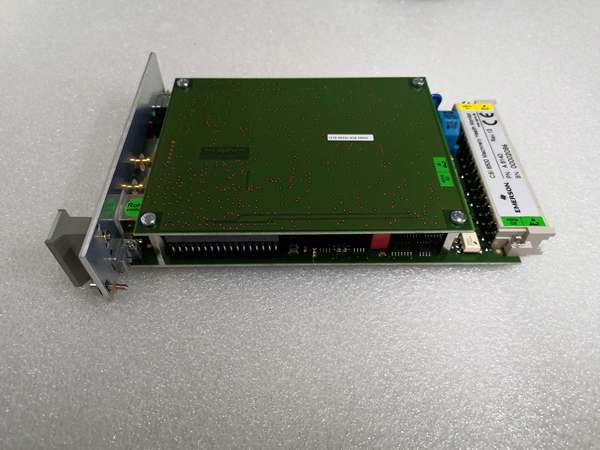

EMERSON A6140-9199-00058
Customer Value & Operational Benefits
Enhanced Machinery Protection
The A6140-9199-00058’s high-precision vibration measurements enable early detection of incipient faults (e.g., bearing wear, rotor imbalance). By providing accurate, real-time data, it helps prevent catastrophic failures (e.g., turbine blade damage, compressor seizure) and reduces unplanned downtime.
Seamless Integration with AMS 6500
As a core component of the AMS 6500 system, the A6140-9199-00058 integrates seamlessly with other AMS 6500 modules (e.g., A6110 thrust differential expansion monitor, A6120 vibration monitor). This eliminates the need for custom wiring or protocol converters, reducing integration time and costs.
Reduced Maintenance Costs
The hot-swappable design allows technicians to replace a faulty monitor in minutes without interrupting the AMS 6500 system. This minimizes labor costs and production losses—critical for facilities with tight maintenance budgets.
Compliance with Industry Standards
The monitor’s certifications (CE, UL, ATEX) ensure it meets the rigorous requirements of industries like oil & gas, power generation, and chemical processing. This compliance is essential for facilities seeking to adhere to regulatory or corporate safety standards.
Field Engineer’s Notes (From the Trenches)
When installing the A6140-9199-00058, always verify the probe gap—the gap between the eddy-current probe tip and the shaft must be set to the manufacturer’s specification (typically 0.5–1.0 mm for Bently Nevada 3300 XL probes). An incorrect gap will cause the monitor to misinterpret signals, leading to false alarms. I once saw a site where a contractor set the gap too wide, resulting in missed faults and a damaged turbine.Another gotcha: ground the monitor properly—the AMS 6500 system’s IP21 rating requires a proper ground connection to protect against electric shock and EMI. I’ve fixed countless “ghost” faults (e.g., random vibration spikes) by ensuring the monitor’s ground wire is connected to the rack’s earth ground.If the monitor’s “FAULT” LED is red, check the probe wiring—loose or reversed wires are a common cause of faults. Use a multimeter to test for continuity between the probe and the monitor’s input terminals. Also, ensure the probe’s shield is grounded to the AMS 6500 rack’s earth ground to reduce EMI.
Real-World Applications
-
Power Generation: Steam Turbine MonitoringA coal-fired power plant uses the A6140-9199-00058 to monitor the vibration of a steam turbine’s shaft. The monitor receives signals from two Bently Nevada 3300 XL proximity probes (installed on the turbine’s bearing housings) and transmits data to the AMS 6500 system. If the vibration exceeds 10 mm/s, the system triggers an alarm, allowing operators to shut down the turbine before damage occurs.
-
Oil & Gas: Centrifugal Compressor ProtectionAn offshore oil platform uses the A6140-9199-00058 to monitor a centrifugal compressor’s shaft vibration. The monitor works with two eddy-current probes (installed on the compressor’s shaft) and sends data to the platform’s DCS. If the vibration exceeds the trip threshold, the DCS shuts down the compressor, preventing impeller damage.

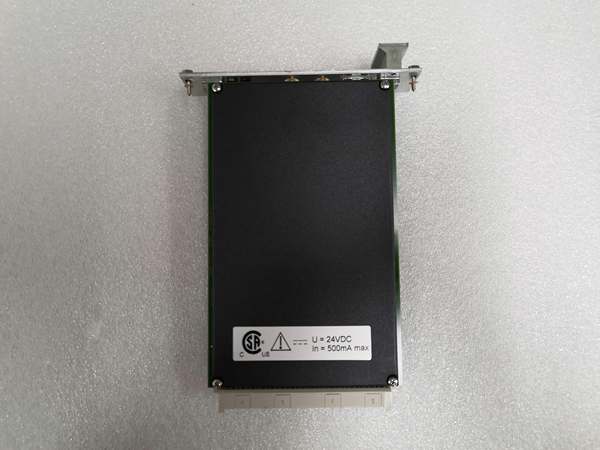

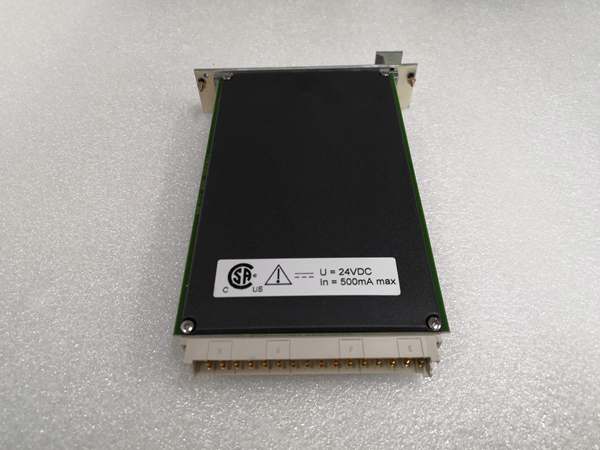

EMERSON A6140-9199-00058
High-Frequency Troubleshooting FAQ
Q: What does the “FAULT” LED indicate on the A6140-9199-00058?
A: The red “FAULT” LED indicates a critical error, such as:
-
Probe Failure: The eddy-current probe is broken or disconnected.
-
Input Signal Out of Range: The probe signal is too high or too low (e.g., due to a gap issue).
-
Module Hardware Failure: The monitor’s internal components (e.g., amplifier, ADC) are faulty.Check the AMS 6500 system’s diagnostic software for detailed fault codes and follow the manufacturer’s troubleshooting steps.
Q: Can the A6140-9199-00058 be used with non-Emerson probes?
A: No, the monitor is designed exclusively for Emerson EPRO eddy-current proximity probes. Non-Emerson probes may not produce the correct signal characteristics, leading to inaccurate measurements.
Q: How do I replace the A6140-9199-00058?
A: Follow these steps:
-
Power Down: Turn off the AMS 6500 rack’s main power supply.
-
Remove Old Monitor: Unscrew the monitor from the AMS 6500 rack (use a Phillips screwdriver).
-
Install New Monitor: Secure the new A6140-9199-00058 to the rack and tighten the screws.
-
Power Up: Turn on the main power supply and verify the monitor’s operation (check the “OK” LED).
Q: Why is the A6140-9199-00058 not transmitting data to the AMS 6500 system?
A: Check three things first:
-
Probe Power: Ensure the eddy-current probe is receiving power (use a multimeter to measure the voltage at the probe’s terminals).
-
Wiring: Check the wiring between the probe and the monitor for loose connections or incorrect polarity.
-
Monitor Configuration: Use the AMS 6500 diagnostic software to verify that the monitor is configured for the correct probe type (eddy-current).
