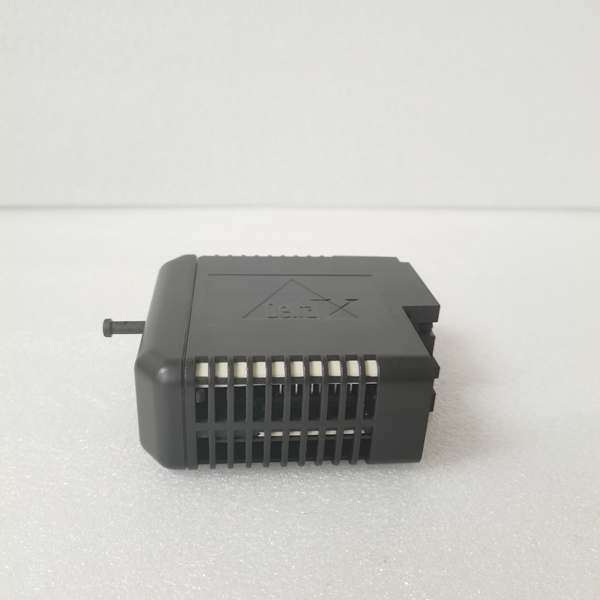

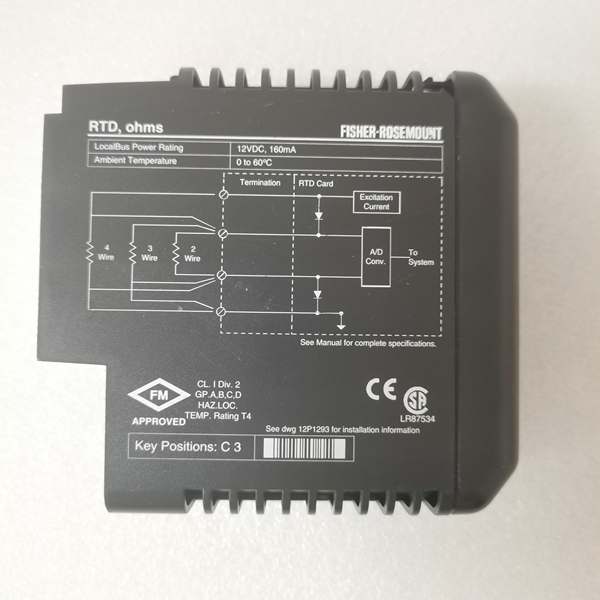

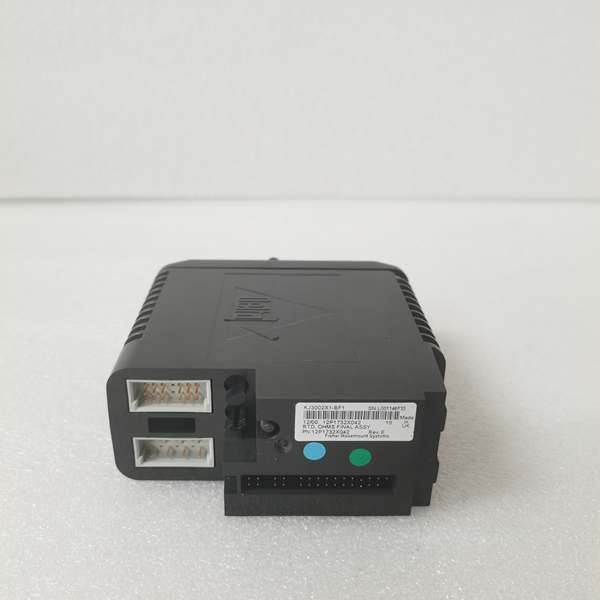

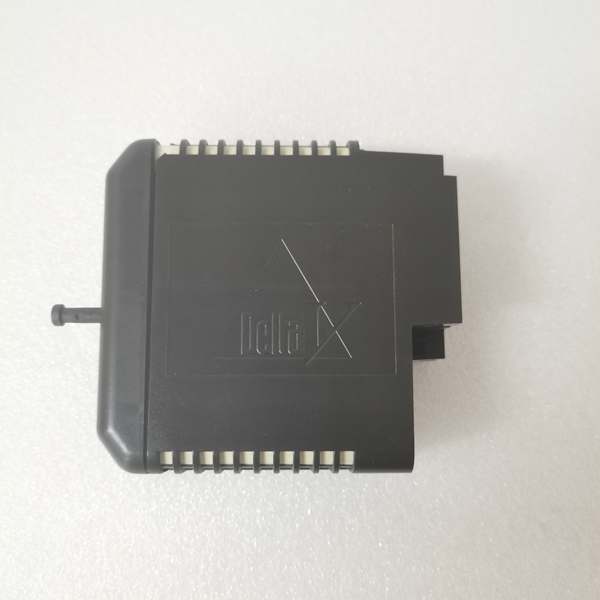

EMERSON KJ3002X1-BF1 12P1732X042 | DCS Controller Module

  • Brand:​ Emerson
  • •
    Model:​ KJ3002X1-BF1 (Order Code: 12P1732X042)
  • •
    Product Type:​ Process Controller (CPU Module)
  • •
    Series:​ DeltaV™
  • •
    Core Function:​ Serves as the central processing unit for Emerson’s DeltaV Distributed Control System (DCS), executing regulatory control, logic, and sequencing functions for process automation.
  • •
    Key Specs:​ High-performance processor, supports Electronic Marshalling (CHARMs), redundant configuration support.
Get a Quote
Manufacturer:
Part number: Emerson KJ3002X1-BF1 12P1732X042
Our extensive catalogue, including : Emerson KJ3002X1-BF1 12P1732X042 , is available now for dispatch to the worldwide.

Description

KJ3002X1-BF1: Product Overview
The EMERSON KJ3002X1-BF1 is a central controller module for Emerson’s DeltaV™ Distributed Control System (DCS), a platform renowned for its use in process automation across industries such as chemical, pharmaceutical, oil & gas, and power generation. This controller acts as the computational brain of a DeltaV station, responsible for executing complex control strategies including continuous regulatory control, batch sequencing, and advanced process optimization algorithms. It interfaces with I/O modules—particularly the innovative CHARM (Characterization Module) I/O cards—via a high-speed backplane to read process data from field instruments and execute control commands to final control elements.
The controller is designed for the DeltaV Electronic Marshalling architecture, which eliminates traditional marshalling cabinets and reduces wiring by allowing any I/O type (e.g., AI, AO, DI, DO) to be assigned to any channel on a CHARM I/O card through software configuration. This provides tremendous flexibility and significantly reduces installation and commissioning time. The controller runs the DeltaV real-time operating system and application code, providing deterministic performance essential for precise process control in demanding industrial environments.

EMERSON KJ3002X1-BF1 12P1732X042

EMERSON KJ3002X1-BF1 12P1732X042

KJ3002X1-BF1: Technical Specifications
  • •
    Model Number:​ KJ3002X1-BF1
  • •
    Order Number:​ 12P1732X042
  • •
    Manufacturer:​ Emerson
  • •
    Product Type:​ Process Controller (CPU)
  • •
    Compatible System:​ DeltaV DCS with CHARM I/O
  • •
    Processor:​ High-performance processor
  • •
    Memory:​ Extensive application memory with battery backup
  • •
    I/O Communication:​ Interfaces with CHARM I/O bases via high-speed backplane
  • •
    Network Communication:
    • •
      DeltaV Network:​ Ethernet for communication with operator stations
    • •
      Plant Network:​ Optional interface for higher-level system integration
  • •
    Redundancy:​ Supports 1:1 hot-standby redundancy
  • •
    Power Supply:​ Powered by DeltaV power supply module in chassis
  • •
    Operating Temperature:​ 0°C to 60°C (32°F to 140°F)
  • •
    Certifications:​ cULus, ATEX, IECEx for hazardous locations
  • •
    Security Features:​ User authentication, audit trails, communication encryption

    EMERSON KJ3002X1-BF1 12P1732X042

    EMERSON KJ3002X1-BF1 12P1732X042

Core Features & Customer Value
The controller’s primary value is its role in the DeltaV Electronic Marshalling system, which drastically reduces wiring, engineering, and commissioning costs. For system integrators, this means unparalleled flexibility—field signals can be changed or added late in the project without rewiring, simply by reconfiguring the software. This de-risks projects and accelerates startup timelines significantly.
The controller’s high-performance processing capability​ ensures fast and deterministic execution of complex control algorithms, which is critical for maintaining product quality, safety, and efficiency in continuous processes. Support for hot-standby redundancy​ guarantees high availability for critical applications, with automatic failover preventing unplanned downtime. The integration with the broader DeltaV ecosystem provides advanced features like built-in diagnostics, cybersecurity protocols, and seamless data exchange for plant-wide optimization.
Typical Applications
In a pharmaceutical batch process, the KJ3002X1-BF1 executes complex recipes, managing precise sequences for charging reactants, controlling temperature and pressure in reactors, and ensuring compliance with regulatory standards (e.g., FDA 21 CFR Part 11).
In a continuous chemical process, it performs regulatory control for distillation columns or reactors, executing advanced control strategies to maximize yield and energy efficiency while ensuring safe operation within design limits.
