Description

System Architecture & Operational Principle

The Emerson SE4003S2B1 is an 8-channel analog input module within the Emerson DeltaV DCS, designed for Level 1 (Device) or Level 2 (Control) of the Purdue Model in industrial automation. It resides in the DeltaV rack (typically in Slots 3–14, adjacent to controller or communication modules) and serves as the bridge between field instruments (e.g., pressure transmitters, temperature sensors) and DeltaV controllers (e.g., DeltaV S-series).

Upstream Communication

Receives raw 4-20mA analog signals from up to 8 field instruments via the DeltaV rack’s backplane. These signals represent process variables (e.g., pressure, temperature, flow) and are transmitted over shielded twisted-pair cables. The module also supports HART protocol (Highway Addressable Remote Transducer), allowing bidirectional communication with smart field devices for configuration, calibration, and diagnostics without disrupting process control.

Downstream Communication

Transmits processed digital data to DeltaV controllers, which interpret the signals to adjust process parameters (e.g., opening a valve, adjusting a pump speed) or generate alarms (e.g., “pressure exceeds setpoint”). The module’s channel-to-channel isolation (1500 V RMS) prevents electrical interference between channels, ensuring accurate signal conversion even in noisy industrial environments.

Operational Advantages

High Precision: Measures analog signals with ±0.1% full-scale accuracy, critical for maintaining process stability in industries like oil & gas and chemical processing.
HART Support: Enables remote configuration and diagnostics of smart field devices, reducing the need for manual field visits and minimizing downtime.
Hot-Swappable Design: Can be replaced without shutting down the DeltaV system, minimizing production losses during maintenance.

Core Technical Specifications

Attribute	Specification
Channel Count	8 independent, isolated analog input channels
Input Signal Type	4-20mA current (HART-enabled)
Input Impedance	250Ω (4-20mA)
Accuracy	±0.1% full-scale (typical)
Power Supply	24 VDC (field circuit); 12 VDC (LocalBus, 100mA max)
Operating Temperature	-40°C to +70°C (-40°F to 158°F)
Storage Temperature	-40°C to +85°C (-40°F to 185°F)
Humidity Tolerance	5%–95% non-condensing
Vibration Resistance	1 mm peak-to-peak (2–13.2 Hz); 0.7 g (13.2–150 Hz)
Dimensions (W×H×D)	102 mm × 114 mm × 46 mm (4.02 in × 4.49 in × 1.81 in)
Weight	0.399 kg (0.88 lbs)
Certifications	CE, UL, ATEX Zone 2 (hazardous locations), IECEx
Compatibility	DeltaV Series 2 Plus systems; works with HART smart instruments

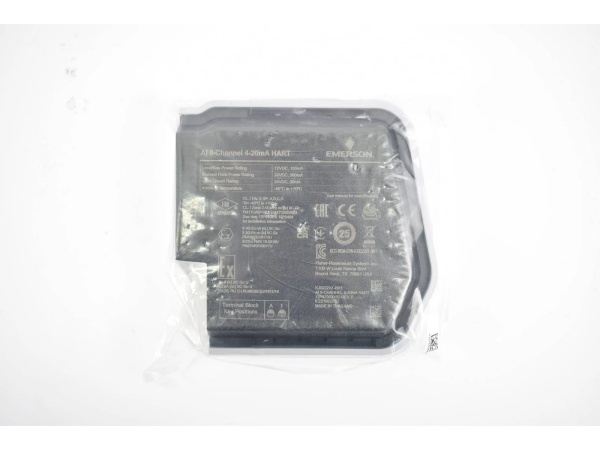

Emerson SE4003S2B1

Customer Value & Operational Benefits

Enhanced Process Accuracy

The SE4003S2B1’s high-precision signal conversion ensures that process variables (e.g., pressure, temperature) are measured accurately, allowing operators to make informed decisions and maintain optimal process conditions. For example, a chemical plant using the module to monitor reactor temperature can adjust cooling water flow precisely, preventing overheating and improving product quality.

Reduced Downtime with HART Diagnostics

The HART protocol support allows technicians to diagnose field device issues remotely, reducing the need for manual field visits. For instance, if a pressure transmitter malfunctions, the module can transmit diagnostic data (e.g., “sensor drift”) to the DeltaV system, allowing technicians to replace the transmitter during a scheduled maintenance window instead of an emergency shutdown.

Cost-Effective I/O Expansion

The 8-channel design maximizes the DeltaV rack’s footprint efficiency, reducing the number of modules needed for complex control tasks. This saves cabinet space and installation costs, making it a cost-effective solution for facilities looking to expand their I/O capacity.

Compliance with Industry Standards

The module’s certifications (CE, UL, ATEX) ensure it meets the rigorous requirements of industries like oil & gas, power generation, and chemical processing. This compliance is essential for facilities seeking to adhere to regulatory or corporate safety standards.

Field Engineer’s Notes (From the Trenches)

When installing the SE4003S2B1, always use shielded twisted-pair cables for field wiring—unshielded cables can pick up electromagnetic interference (EMI) from nearby power lines, leading to inaccurate signal readings. I once saw a site where a contractor used unshielded cables, resulting in a 5% error in pressure measurements. Shielded cables eliminated the problem immediately.

Another gotcha: verify the HART device address—each HART-enabled field device must have a unique address (1–15) to communicate with the module. If two devices have the same address, the module will not be able to distinguish between them, leading to communication errors. Use a HART communicator to check and set the addresses before connecting the devices.

If the module’s “FAULT” LED is red, check the field wiring first—loose or reversed wires are a common cause of faults. Use a multimeter to test for continuity between the field device and the module’s input terminals. Also, ensure the module’s shield is grounded to the DeltaV rack’s earth ground to reduce EMI.

Real-World Applications

Oil & Gas: Offshore Platform Pressure Monitoring

An offshore oil platform uses the SE4003S2B1 to monitor the pressure of crude oil pipelines. The module receives 4-20mA signals from pressure transmitters installed on the pipelines and transmits the data to a DeltaV controller. If the pressure exceeds the setpoint (e.g., 1000 psi), the controller triggers an alarm, allowing operators to open a relief valve and prevent a pipeline rupture.
Chemical Processing: Reactor Temperature Control

A chemical plant uses the SE4003S2B1 to monitor the temperature of a polymerization reactor. The module receives signals from temperature sensors installed in the reactor and transmits the data to a DeltaV controller. The controller adjusts the cooling water flow to maintain the temperature within the optimal range (e.g., 80°C), ensuring consistent product quality.

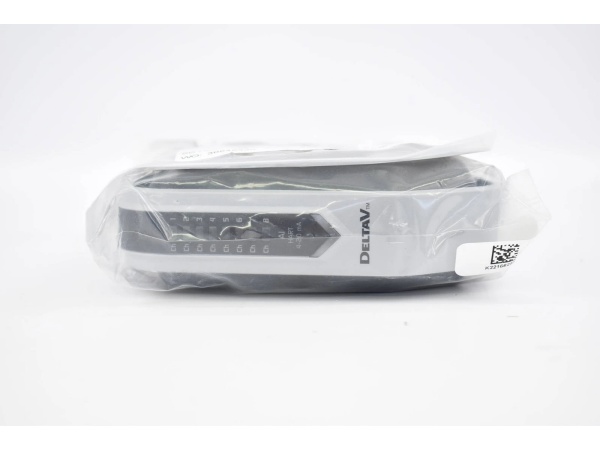

Emerson SE4003S2B1

High-Frequency Troubleshooting FAQ

Q: What does the “FAULT” LED indicate on the SE4003S2B1?

A: The red “FAULT” LED indicates a critical error, such as:

Field Wiring Issue: Loose or reversed wires between the field device and the module.
HART Communication Error: Duplicate HART addresses or faulty HART devices.
Module Hardware Failure: Corrupted firmware or damaged components.

Check the DeltaV Rack Configuration Software for detailed fault codes and follow the manufacturer’s troubleshooting steps.

Q: Can the SE4003S2B1 be used with non-HART devices?

A: Yes, the module supports both HART-enabled and non-HART 4-20mA devices. However, non-HART devices will not benefit from the HART protocol’s diagnostic features.

Q: How do I replace the SE4003S2B1?

A: Follow these steps:

Power Down: Turn off the DeltaV rack’s main power supply.
Remove Old Module: Unscrew the module from the DeltaV carrier (use a Phillips screwdriver).
Install New Module: Secure the new SE4003S2B1 to the carrier and tighten the screws.
Power Up: Turn on the main power supply and verify the module’s operation (check the “OK” LED).

Q: Why is the SE4003S2B1 not receiving signals from a HART device?

A: Check three things first:

HART Address: Ensure the device has a unique HART address (1–15).
Wiring: Check the shielded twisted-pair cable for loose connections or damage.
Module Configuration: Use the DeltaV Rack Configuration Software to verify that the module is configured for HART communication.
