Description

System Architecture & Operational Principle

The Emerson VE4002S1T2B5 is a 32-channel discrete output module within the Emerson DeltaV DCS, designed for Level 1 (Device) or Level 2 (Control) of the Purdue Model in industrial automation. It resides in the DeltaV I/O carrier (e.g., VE4050S2K1C0) and serves as the bridge between DeltaV controllers (e.g., DeltaV S-series) and field devices (e.g., solenoid valves, motor starters).

Upstream Communication

Receives digital control signals from DeltaV controllers via the I/O carrier’s backplane. These signals represent process commands (e.g., “open valve,” “start motor”).

Downstream Communication

Transmits 24 VDC high-side switching signals to field devices. The module uses a high-side sourcing architecture (switches the positive 24 VDC supply rail to the load) for superior noise immunity in electrically harsh environments. Each channel includes short-circuit protection and overcurrent detection to prevent damage from faulty loads.

Operational Advantages

High Channel Density: 32 outputs in a single-slot footprint maximize controller rack utilization and reduce installation costs.
Advanced Diagnostics: Per-channel fault detection (short-circuit, open-load, overcurrent) with millisecond response times enables predictive maintenance and reduces downtime.
SIL 2 Safety Rating: Certified for use in safety instrumented systems (SIS) for emergency shutdown and process safety applications, providing risk reduction up to 100.

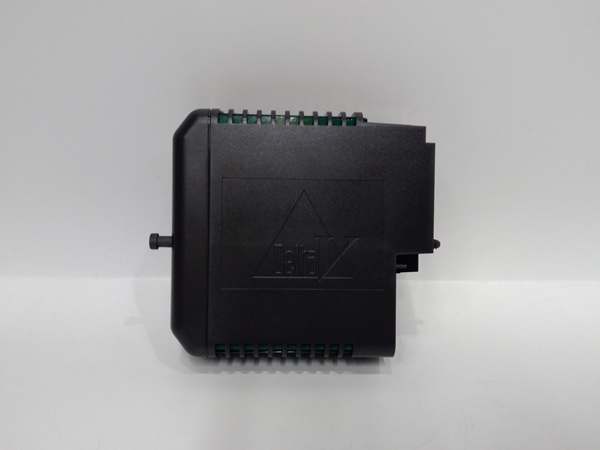

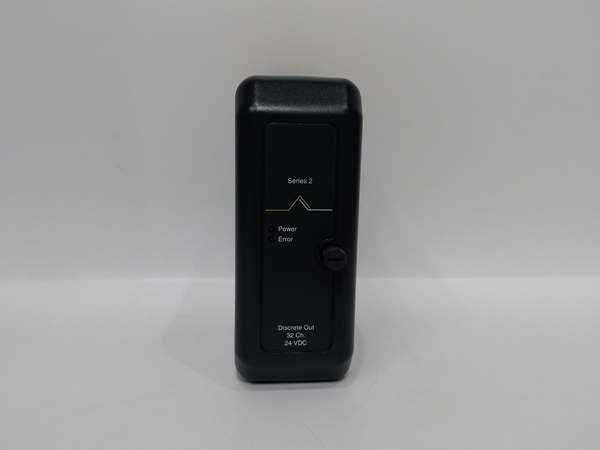

Emerson VE4002S1T2B5

Core Technical Specifications

Attribute	Specification
Channel Count	32 independent discrete outputs
Output Type	24 VDC high-side sourcing (positive voltage switching)
Current per Channel	0.5A continuous (2A surge for 10ms)
Voltage Rating	24 VDC nominal (18–30 VDC operating range)
Isolation	1500 VAC channel-to-backplane; 250 VAC channel-to-channel
Switching Speed	10 ms typical on/off transition
Diagnostic Capabilities	Short-circuit, open-load, overcurrent detection (per channel)
Safety Certification	SIL 2 (IEC 61508)
Operating Temperature	-40°C to +70°C (-40°F to 158°F)
Storage Temperature	-55°C to +85°C (-67°F to 185°F)
Humidity Tolerance	5–95% non-condensing
Vibration Resistance	1 mm peak-to-peak (2–13.2 Hz); 0.7 g (13.2–150 Hz)
Shock Resistance	10 g (½-sine wave, 11 ms)
Certifications	CE, UL, CSA, ATEX Zone 2, IECEx
Dimensions (W×H×D)	102 mm × 114 mm × 46 mm (4.02 in × 4.49 in × 1.81 in)
Weight	0.45 kg (1.0 lb)

Customer Value & Operational Benefits

Enhanced Process Reliability

The VE4002S1T2B5’s high-side switching architecture and per-channel diagnostics ensure reliable control of field devices, reducing false trips and process interruptions. For example, a chemical plant using the module to control reactor feed valves can detect a stuck valve via open-load diagnostics before it impacts production.

Reduced Downtime with Hot-Swappable Design

The module’s hot-swappable interface card allows technicians to replace a faulty card without shutting down the DeltaV system, minimizing production losses. This is critical for 24/7 operations like oil & gas production, where even a short outage can result in significant costs.

Cost-Effective I/O Expansion

The 32-channel design reduces the number of modules needed for complex control tasks, saving cabinet space and installation costs. Additionally, the module’s compatibility with DeltaV systems eliminates the need for custom wiring or protocol converters.

Compliance with Industry Standards

The module’s SIL 2 certification and hazardous area approvals (ATEX, IECEx) make it suitable for use in safety-critical applications (e.g., emergency shutdown systems) and harsh environments (e.g., offshore oil platforms).

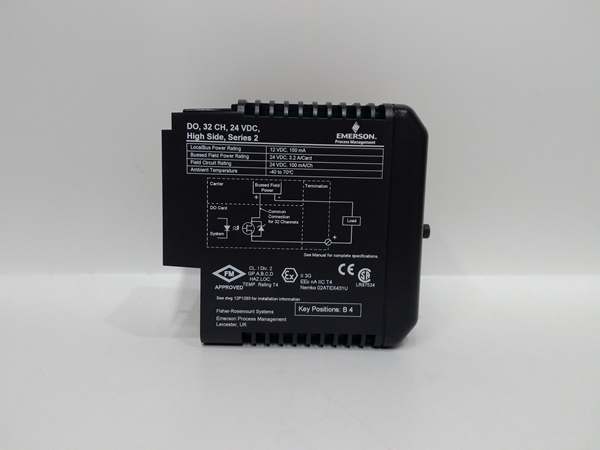

Emerson VE4002S1T2B5

Field Engineer’s Notes (From the Trenches)

When installing the VE4002S1T2B5, always use shielded twisted-pair cables for field wiring—unshielded cables can pick up electromagnetic interference (EMI) from nearby power lines, leading to inaccurate signal readings. I once saw a site where a contractor used unshielded cables, resulting in a 5% error in valve position control. Shielded cables eliminated the problem immediately.

Another gotcha: verify the load resistance—each channel’s 0.5A rating is designed for 48 Ω loads (24 VDC / 0.5A). If you connect a lower-resistance load (e.g., 24 Ω), the module will trigger an overcurrent fault. Use a multimeter to check the load resistance before wiring.

If the module’s “FAULT” LED is red, check the DeltaV System Log—the log will tell you exactly what’s wrong (e.g., “channel 5 short-circuit” or “card communication error”). Don’t guess—use the log to diagnose the problem.

Real-World Applications

Oil & Gas: Offshore Platform Emergency Shutdown (ESD)

The VE4002S1T2B5 controls solenoid-operated shutdown valves on an offshore oil platform. The module’s SIL 2 certification ensures that the valves close within 100ms of a trip signal, preventing oil spills. High-side switching eliminates ground loop issues common in multi-valve installations.
Chemical Processing: Reactor Feed Control

A chemical plant uses the VE4002S1T2B5 to control the feed valves for a polymerization reactor. The module’s per-channel diagnostics detect a stuck valve via open-load detection, allowing technicians to replace the valve during a scheduled maintenance window instead of an emergency shutdown.

High-Frequency Troubleshooting FAQ

Q: What does the “FAULT” LED indicate on the VE4002S1T2B5?

A: The red “FAULT” LED indicates a critical fault, such as:

Short-Circuit: A channel’s load is drawing more than 0.5A (check the load resistance).
Open-Load: A channel’s load is disconnected (verify the field wiring).
Card Communication Error: The module is not communicating with the DeltaV controller (check the backplane connection).

Use the DeltaV System Log to diagnose the exact cause and follow the manufacturer’s troubleshooting steps.

Q: Can the VE4002S1T2B5 be used with non-DeltaV systems?

A: No, the VE4002S1T2B5 is designed exclusively for Emerson DeltaV DCS. It relies on the DeltaV I/O carrier’s backplane for power and communication, so using it with non-DeltaV systems will result in compatibility issues.

Q: How do I replace the VE4002S1T2B5?

A: Follow these steps:

Power Down: Turn off the DeltaV rack’s main power supply.
Remove Old Module: Unscrew the module from the I/O carrier (use a Phillips screwdriver).
Install New Module: Secure the new VE4002S1T2B5 to the carrier and tighten the screws.
Power Up: Turn on the main power supply and verify the module’s operation (check the “OK” LED).

Q: Why is the VE4002S1T2B5 not switching a load?

A: Check three things first:

Load Power: Ensure the load (e.g., solenoid valve) is powered (use a multimeter to measure the voltage).
Wiring: Check the shielded twisted-pair cable for loose connections or damage.
Module Configuration: Use the DeltaV Rack Configuration Software to verify that the module is configured for the correct output type (24 VDC high-side).
