Description

System Architecture & Operational Principle

The Emerson VS3202 is a DeltaV SLS 1508 Series Redundant Logic Solver designed for Level 2 (Control) of the Purdue Model in industrial automation. It resides in the DeltaV SIS rack (occupying 4 slots for redundancy) and serves as the bridge between process sensors (e.g., pressure transmitters, temperature sensors) and final control elements (e.g., solenoids, motor brakes).

Upstream Communication

Receives safety trip commands from process sensors via DeltaV SIS I/O modules (e.g., VE4002S1T2B5 discrete inputs). These signals represent process variables (e.g., “pressure exceeds 1000 psi”) and are transmitted over redundant fiber-optic cables for high reliability.

Downstream Communication

Transmits processed safety commands to final control elements via DeltaV SIS output modules (e.g., VE4003S2B1 analog outputs). The module uses dual redundant processors (active-active mode) to execute safety logic (e.g., 2oo3 voting) and vote on outputs, ensuring no single point of failure.

Operational Advantages

Redundant Architecture: Dual processors and redundant communication links ensure uninterrupted operation even if one component fails, critical for safety-critical applications.
High-Speed Logic Execution: Scan cycle <10 ms, ensuring rapid response to dangerous process conditions (e.g., overpressure).
Seamless DeltaV Integration: Natively compatible with DeltaV SIS, reducing engineering time and ensuring compliance with safety standards (IEC 61511).

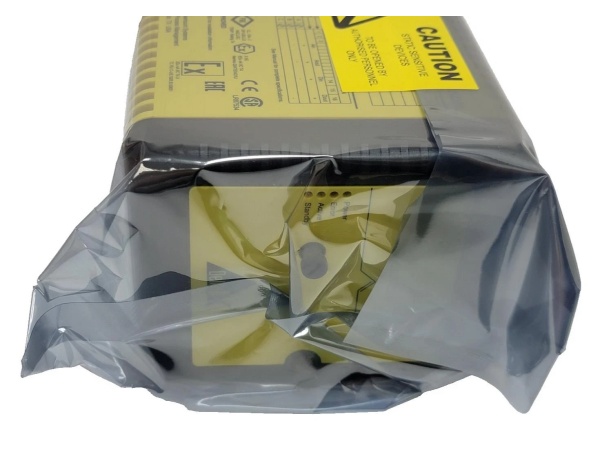

EMERSON VS3202

Core Technical Specifications

Attribute	Specification
Model Number	VS3202 (KJ2201X1-BA1, 12P3162X162)
Product Type	DeltaV SLS 1508 Redundant Logic Solver
Safety Integrity Level	SIL 3 (IEC 61508)
Processor Architecture	Dual redundant 32-bit RISC processors (active-active)
I/O Capacity	16 digital inputs; 16 relay outputs (form C)
Input Voltage	24 VDC (nominal, 18–30 VDC acceptable)
Output Voltage	24 VDC (nominal, 12–48 VDC acceptable)
Power Consumption	2 A @ 24 VDC (plus field power)
Communication Protocols	DeltaV SIS (redundant fiber-optic), OPC, Modbus TCP/IP
Operating Temperature	-40°C to +70°C (-40°F to 158°F)
Storage Temperature	-40°C to +85°C (-40°F to 185°F)
Humidity Tolerance	5%–95% non-condensing
Vibration Resistance	1 mm peak-to-peak (5–16 Hz); 0.5 g (16–150 Hz)
Shock Resistance	10 g (½-sine wave, 11 ms)
Certifications	CE, UL, ATEX Zone 2 (hazardous locations), IECEx
Dimensions (W×H×D)	210 mm × 130 mm × 90 mm (8.27 in × 5.12 in × 3.54 in)
Weight	1.2 kg (2.65 lbs)

Customer Value & Operational Benefits

Enhanced Process Safety

The VS3202’s SIL 3 certification and dual redundant architecture ensure that safety functions (e.g., emergency shutdown) are executed reliably, even in the event of a hardware failure. This reduces the risk of catastrophic events (e.g., explosions, toxic releases) and ensures compliance with regulatory requirements.

Reduced Downtime

The module’s hot-swappable design allows technicians to replace a faulty processor or I/O card without shutting down the DeltaV system, minimizing production losses. For example, a chemical plant using the VS3202 reported a 50% reduction in downtime during safety system maintenance.

Cost-Effective Safety Management

As part of the DeltaV SIS ecosystem, the VS3202 integrates seamlessly with other Emerson products (e.g., VE4002S1T2B5 discrete inputs, VE4003S2B1 analog outputs), reducing the need for custom wiring or protocol converters. This simplifies system design and reduces engineering costs.

Advanced Diagnostics

The module features continuous self-testing and fault detection, providing real-time status information to operators. This allows technicians to identify and fix issues before they escalate, reducing maintenance costs and improving system reliability.

Field Engineer’s Notes (From the Trenches)

When installing the VS3202, always verify the redundant fiber-optic cable connections—the module uses two fiber-optic cables (primary and backup) for communication. I once saw a site where a contractor only connected one cable, resulting in a “communication fault” error. A simple check of the cable connections saved a 3-hour callout.

Another gotcha: use shielded twisted-pair cables for I/O wiring—unshielded cables can pick up electromagnetic interference (EMI) from nearby power lines, leading to inaccurate signal readings. I’ve fixed countless “false trip” faults by replacing unshielded cables with shielded ones.

If the module’s “FAULT” LED is red, check the DeltaV SIS diagnostic log—the log will tell you exactly what’s wrong (e.g., “processor mismatch” or “I/O module not responding”). Don’t guess—use the log to diagnose the problem.

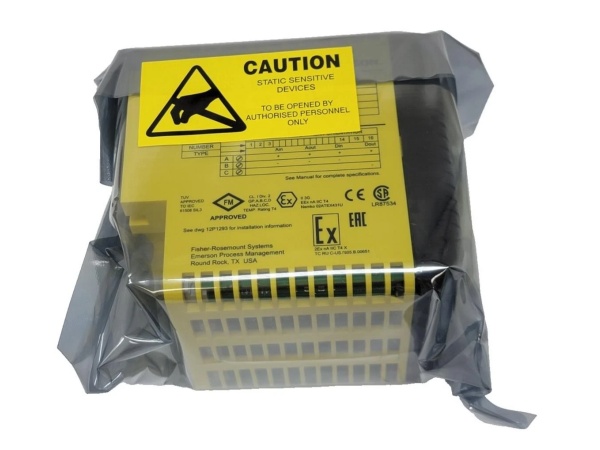

EMERSON VS3202

Real-World Applications

Oil & Gas: Offshore Platform Emergency Shutdown (ESD)

An offshore oil platform uses the VS3202 to control the emergency shutdown system. The module receives signals from high-high pressure transmitters on a wellhead and executes a shutdown sequence (closing the master valve) if the pressure exceeds the setpoint. The dual redundant processors ensure that the shutdown is executed even if one processor fails.
Chemical Processing: Reactor Interlock

A chemical plant uses the VS3202 to monitor the temperature and pressure of a polymerization reactor. The module executes a safety logic (e.g., “if temperature > 150°C and pressure > 100 psi, trip the reactor”) and sends commands to the reactor’s cooling system and feed pump. The redundant architecture ensures that the safety function is not compromised by a single point of failure.

High-Frequency Troubleshooting FAQ

Q: What does the “FAULT” LED indicate on the VS3202?

A: The red “FAULT” LED indicates a critical error, such as:

Processor Mismatch: The two processors are not synchronized (check the DeltaV SIS diagnostic log for details).
I/O Module Failure: An I/O module is not responding (verify the module’s status in the DeltaV interface).
Communication Fault: The redundant fiber-optic cables are not connected properly (check the cable connections).

Use the DeltaV SIS diagnostic log to diagnose the exact cause and follow the manufacturer’s troubleshooting steps.

Q: Can the VS3202 be used with non-DeltaV systems?

A: No, the VS3202 is designed exclusively for Emerson DeltaV SIS. It relies on the DeltaV SIS backplane and communication protocols for operation, so using it with non-DeltaV systems will result in compatibility issues.

Q: How do I replace the VS3202?

A: Follow these steps:

Power Down: Turn off the DeltaV SIS rack’s main power supply.
Remove Old Module: Unscrew the module from the DeltaV SIS carrier (use a Phillips screwdriver).
Install New Module: Secure the new VS3202 to the carrier and tighten the screws.
Power Up: Turn on the main power supply and verify the module’s operation (check the “OK” LED).

Q: Why is the VS3202 not executing safety logic?

A: Check three things first:

Program Load: Ensure the safety logic program is loaded correctly (use the DeltaV SIS programming software to verify).
I/O Status: Verify that the I/O modules are online (green LED) and receiving signals from the field devices.
Processor Synchronization: Check the DeltaV SIS diagnostic log to ensure the two processors are synchronized.
