System Architecture & Operational Principle

The Foxboro E69F-TI2-JRS is a current-to-pneumatic signal converter within the Foxboro I/A Series DCS, designed for Level 1 (Device) or Level 2 (Control) of the Purdue Model in industrial automation. It resides in the field (e.g., near control valves or actuators) and serves as the bridge between electronic control systems (e.g., Foxboro controllers) and pneumatic final control elements (e.g., pneumatic valves).

Upstream Communication

Receives 4-20 mA DC current signals from Foxboro I/A Series controllers or other electronic control devices. These signals represent process variables (e.g., flow rate, pressure) or control commands (e.g., “open valve 50%”).

Downstream Communication

Converts the 4-20 mA DC signal into a proportional 3-15 psi pneumatic signal using an internal electromechanical or solid-state transducer. This pneumatic signal is sent to pneumatic actuators (e.g., control valves) to adjust their position, thereby regulating the process variable.

Operational Advantages

Explosionproof Design: The NEMA 4X (IP66) enclosure and explosionproof construction (e.g., threaded cover) make it suitable for use in hazardous areas (e.g., oil refineries, chemical plants) where flammable gases or vapors are present.
High Accuracy: The converter maintains a linear relationship between the input current and output pressure (±0.5% of full scale), ensuring precise control of pneumatic actuators.
Rugged Construction: Built to withstand harsh industrial environments (e.g., vibration, temperature fluctuations), the E69F-TI2-JRS has a long service life (≥5 years typical) with minimal maintenance.

Core Technical Specifications

Attribute	Specification
Input Signal	4-20 mA DC (nominal)
Output Signal	3-15 psi (proportional to input current)
Power Supply	24 VDC (±10%, 50 mA max)
Operating Temperature	-40°C to +70°C (-40°F to 158°F)
Protection Rating	NEMA 4X (IP66)
Hazardous Area Certification	FM Class I Div 2, Groups A, B, C, D; CE (EN 298)
Accuracy	±0.5% of full scale (typical)
Linearity	±0.25% of full scale (typical)
Repeatability	±0.1% of full scale (typical)
Weight	~1.1 kg (2.4 lbs)
Mounting	Surface mount (via 4 x M6 screws) or pipe mount (1” NPT)
Cable Connections	Screw terminals (1/2” NPT conduit entry)

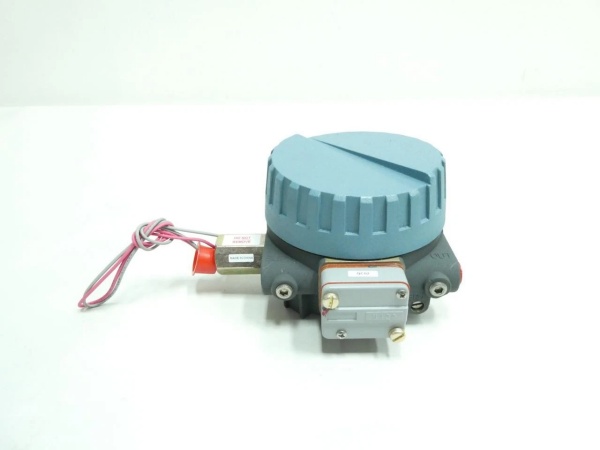

Foxboro E69F-TI2-JRS

Customer Value & Operational Benefits

Enhanced Process Control

The E69F-TI2-JRS’s high accuracy and linearity ensure that pneumatic actuators respond precisely to control signals, maintaining process variables (e.g., flow rate, pressure) within tight tolerances. This reduces process variability and improves product quality—for example, a chemical plant using the converter to control reactor feed valves can maintain a consistent feed rate, reducing waste and improving yield.

Reduced Downtime

The rugged construction and explosionproof design minimize the risk of failure in harsh industrial environments. Additionally, the converter’s simple design (fewer moving parts than electromechanical alternatives) reduces maintenance requirements—technicians can clean the transducer and check connections in minutes, avoiding lengthy downtime.

Cost-Effective Solution

The E69F-TI2-JRS is a cost-effective alternative to electronic actuators in applications where pneumatic actuation is preferred (e.g., high-force applications like large control valves). It eliminates the need for additional signal converters or amplifiers, reducing upfront costs and installation time.

Compliance with Industry Standards

The converter’s FM and CE certifications ensure compliance with global safety regulations, making it suitable for use in regulated industries like oil & gas, power generation, and chemical processing. This compliance is essential for facilities seeking to adhere to corporate safety policies or regulatory requirements (e.g., OSHA, ATEX).

Field Engineer’s Notes (From the Trenches)

When installing the E69F-TI2-JRS, always verify the input current range—the converter is calibrated for 4-20 mA DC. I once saw a site where a contractor connected a 0-10 V DC signal to the input, resulting in a “no output” fault. Use a multimeter to confirm the input signal before powering up the converter.

Another gotcha: check the pneumatic tubing—the converter requires clean, dry air (≤10 μm particle size) to operate correctly. I’ve fixed countless “output pressure fluctuation” faults by replacing clogged air filters or tubing.

If the converter’s “FAULT” LED is red, check the power supply first—the 24 VDC input must be within ±10% of the nominal value. I’ve fixed countless “fault” errors by replacing a faulty power supply or tightening loose connections.

Real-World Applications

Oil Refinery: Control Valve Actuation

An oil refinery uses the E69F-TI2-JRS to convert 4-20 mA DC signals from a Foxboro controller into 3-15 psi pneumatic signals for controlling the position of a crude oil feed valve. The converter’s explosionproof design allows it to be installed near the valve (in a hazardous area), and its high accuracy ensures that the valve position matches the control signal, maintaining a consistent feed rate to the distillation column.
Chemical Plant: Damper Control

A chemical plant uses the E69F-TI2-JRS to control the position of a damper in a ventilation system. The converter receives 4-20 mA DC signals from a Foxboro controller (which monitors the concentration of toxic gases) and adjusts the damper position to maintain a safe air flow. The rugged construction of the converter withstands the vibration from the ventilation system, ensuring reliable operation.

Foxboro E69F-TI2-JRS

High-Frequency Troubleshooting FAQ

Q: What does the “FAULT” LED indicate on the E69F-TI2-JRS?

A: The red “FAULT” LED indicates a critical error, such as:

Power Supply Failure: The 24 VDC input is outside the ±10% tolerance range.
Input Signal Out of Range: The input current is below 4 mA or above 20 mA.
Pneumatic Output Failure: The output pressure is not proportional to the input signal (e.g., due to a clogged transducer).

Check the converter’s manual for detailed fault codes and follow the manufacturer’s troubleshooting steps.

Q: Can the E69F-TI2-JRS be used with non-Foxboro controllers?

A: Yes, the converter is compatible with most electronic control systems that output 4-20 mA DC signals. However, the explosionproof design and hazardous area certification may require additional considerations (e.g., conduit seals) for non-Foxboro systems.

Q: How do I calibrate the E69F-TI2-JRS?

A: The converter is factory-calibrated for 4-20 mA DC input and 3-15 psi output. If recalibration is required (e.g., after replacing the transducer), use a signal generator (to simulate 4-20 mA DC input) and a pressure gauge (to measure the output pressure). Follow the steps in the converter’s manual to adjust the calibration potentiometers.

Q: Why is the output pressure not proportional to the input current?

A: Check three things first:

Input Signal: Ensure the input current is within the 4-20 mA DC range (use a multimeter to measure).
Pneumatic Tubing: Check for clogs or leaks in the air supply tubing (replace the tubing if necessary).
Transducer: The internal transducer may be faulty (replace the transducer if tests confirm no input/output issues).
