Description
System Architecture & Operational Principle
The Foxboro FBM207C is a 16-channel 48V DC contact sense input module within the Foxboro I/A Series DCS, designed for Level 1 (Device) or Level 2 (Control) of the Purdue Model in industrial automation. It resides in the I/A Series chassis (typically in field I/O cabinets) and serves as the bridge between field devices (e.g., limit switches, motor starter auxiliary contacts) and I/A Series controllers (e.g., CP4000 control processors).
Upstream Communication
Receives dry or wet contact signals from field devices via 16 independent input channels. Dry contacts (e.g., mechanical limit switches) close to complete a circuit, while wet contacts (e.g., voltage-driven switches) send a 48V DC signal to the module.
Downstream Communication
Transmits digital status signals (ON/OFF) to I/A Series controllers via the chassis’ backplane. The module uses channel-to-channel isolation (1500V RMS) to prevent electrical interference between channels, ensuring accurate signal transmission even in noisy industrial environments.
Operational Advantages
-
High Isolation: Channel-to-channel and channel-to-bus isolation eliminate ground loops and noise, critical for reliable operation in harsh environments.
-
Hot-Swappable Design: Can be replaced without shutting down the I/A Series system, minimizing downtime during maintenance.
-
Versatile Input Compatibility: Supports both dry and wet contact inputs, making it suitable for a wide range of field devices.
Core Technical Specifications
|
Attribute
|
Specification
|
|---|---|
|
Channel Count
|
16 independent, isolated contact sense inputs
|
|
Input Voltage
|
48V DC nominal (15–60V DC acceptable)
|
|
Input Type
|
Dry contact (mechanical switch) / Wet contact (voltage-driven switch)
|
|
Response Time
|
<10ms (typical)
|
|
Isolation
|
1500V RMS channel-to-channel; 1500V RMS channel-to-bus
|
|
Power Supply
|
24V DC (±10%, 5W max)
|
|
Operating Temperature
|
-40°C to +70°C (-40°F to 158°F)
|
|
Storage Temperature
|
-55°C to +90°C (-67°F to 194°F)
|
|
Humidity Tolerance
|
5%–95% non-condensing
|
|
Vibration Resistance
|
7.5 m/s² (0.75 g) from 5–500 Hz
|
|
Dimensions (W×H×D)
|
130 mm × 200 mm × 30 mm (5.12 in × 7.87 in × 1.18 in)
|
|
Weight
|
0.5 kg (1.1 lbs)
|
|
Certifications
|
CE, UL, CSA, ATEX, IECEx
|
|
Compatibility
|
Foxboro I/A Series DCS; works with CP4000 control processors
|
Customer Value & Operational Benefits
Enhanced Process Reliability
The FBM207C’s high isolation and fast response time ensure accurate monitoring of field devices, reducing false alarms and ensuring reliable process control. For example, a chemical plant using the module to monitor valve position switches can detect a stuck valve via contact status, triggering an alarm before it impacts production.
Reduced Downtime with Hot-Swappable Design
The module can be replaced without shutting down the I/A Series system, minimizing production losses during maintenance. This is critical for 24/7 operations like oil & gas production, where even a short outage can result in significant costs.
Cost-Effective I/O Expansion
The 16-channel design reduces the number of modules needed for complex control tasks, saving cabinet space and installation costs. Additionally, the module’s compatibility with I/A Series systems eliminates the need for custom wiring or protocol converters.
Compliance with Industry Standards
The module’s certifications (CE, UL, ATEX) ensure it meets the rigorous requirements of industries like oil & gas, power generation, and chemical processing. This compliance is essential for facilities seeking to adhere to regulatory or corporate safety standards.
Field Engineer’s Notes (From the Trenches)
When installing the FBM207C, always verify the input voltage—the module requires 48V DC (15–60V DC acceptable). I once saw a site where a contractor connected it to a 24V DC supply, resulting in a “no input” fault. Use a multimeter to confirm the input voltage before powering up.Another gotcha: check the contact wiring—loose or reversed wires are a common cause of faults. Use a multimeter to test for continuity between the field device and the module’s input terminals. Also, ensure the module’s shield is grounded to the I/A Series chassis’ earth ground to reduce EMI.If the module’s “FAULT” LED is red, check the isolation voltage—the module’s isolation barriers can fail if exposed to overvoltage. Use a megohmmeter to test the isolation resistance (should be ≥100 MΩ).
Real-World Applications
-
Oil & Gas: Offshore Platform Valve MonitoringAn offshore oil platform uses the FBM207C to monitor 16 valve position switches on a pipeline. The module transmits status signals to an I/A Series controller, which triggers an alarm if a valve is not in the correct position, preventing over-pressurization.
-
Chemical Processing: Reactor Limit Switch MonitoringA chemical plant uses the FBM207C to monitor 16 limit switches on a reactor. The module sends signals to an I/A Series controller, which stops the reactor if a limit switch is triggered (e.g., temperature exceeds setpoint), preventing runaway reactions.

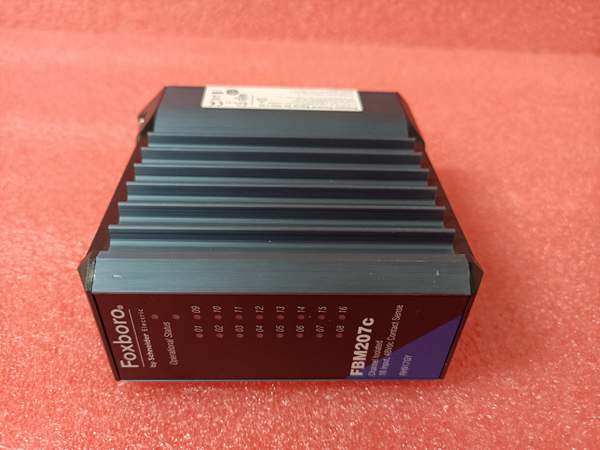

Foxboro FBM207C
High-Frequency Troubleshooting FAQ
Q: What does the “FAULT” LED indicate on the FBM207C?
A: The red “FAULT” LED indicates a critical error, such as:
-
Isolation Failure: The module’s isolation barriers have failed (test with a megohmmeter).
-
Overvoltage: The input voltage exceeds 60V DC (check the field device’s power supply).
-
Channel Short: A channel is shorted to ground (use a multimeter to test for continuity).Check the I/A Series diagnostic software for detailed fault codes and follow the manufacturer’s troubleshooting steps.
Q: Can the FBM207C be used with non-I/A Series systems?
A: No, the module is designed exclusively for Foxboro I/A Series systems. It relies on the I/A Series chassis’ backplane for power and communication, so using it with non-I/A Series systems will result in compatibility issues.
Q: How do I replace the FBM207C?
A: Follow these steps:
-
Power Down: Turn off the I/A Series chassis’ main power supply.
-
Remove Old Module: Unscrew the module from the I/A Series chassis (use a Phillips screwdriver).
-
Install New Module: Secure the new FBM207C to the chassis and tighten the screws.
-
Power Up: Turn on the main power supply and verify the module’s operation (check the “OK” LED).
Q: Why is the FBM207C not receiving signals from field devices?
A: Check three things first:
-
Field Device Power: Ensure the field device (e.g., limit switch) is powered (use a multimeter to measure the voltage).
-
Wiring: Check the wiring between the field device and the module for loose connections or incorrect polarity.
-
Module Configuration: Use the I/A Series configuration software to verify that the module is configured for the correct input type (dry/wet contact).
Commercial Availability & Pricing
Please note: The listed price is not the actual final price. It is for reference only and is subject to appropriate negotiation based on current market conditions, quantity, and availability.
