Description
System Architecture & Operational Principle
The H92A0K9V0H00 is an 8-channel analog output (AO) module designed for the Foxboro I/A Series DCS, typically installed in I/O racks (Purdue Level 1) that receive control signals from processor nodes (Level 2) and drive field actuators (control valves, variable-speed drives, damper motors). Each channel sources a programmable 4–20 mA current loop, where 4 mA represents the zero position (e.g., closed valve) and 20 mA represents the full-scale position (e.g., fully open valve).
The module contains per-channel digital-to-analog converters (DACs) with 16-bit resolution, output drivers, and 1500 VDC optical isolation to protect the DCS from field-side overvoltages and ground loops. The 4–20 mA output is generated by sinking current through the field device, with the module regulating the current based on the 16-bit digital value received from the control processor.
Internally, the H92A0K9V0H00 uses a sigma-delta DAC architecture for high-accuracy current generation, with a typical update rate of 10–20 ms per channel. The module communicates with the I/A Series backplane to report status (e.g., output current, fault conditions) and receive new setpoints. It is hot-swappable when installed in a supported I/A Series rack, allowing replacement without disrupting the control loop—critical for high-availability process units.

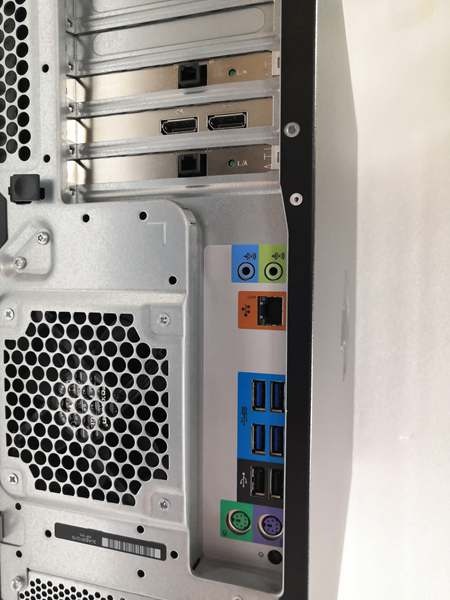

FOXBORO H92A0K9V0H00
Core Technical Specifications
-
Physical Interface: 8x 2-terminal screw-clamp connectors (one per channel) for 4–20 mA loops
-
Output Range: 4–20 mA (selectable 0–20 mA via jumper)
-
Resolution: 16 bits (65,536 counts)
-
Accuracy: ±0.05% of span (at 25°C)
-
Isolation: 1500 VDC channel-to-channel, 500 VDC channel-to-ground
-
Output Impedance: <500 Ω (supports up to 750 Ω load at 20 mA)
-
Update Rate: 10–20 ms per channel (software-configurable)
-
Operating Temperature: -40°C to +70°C (-40°F to +158°F)
-
Storage Temperature: -55°C to +85°C (-67°F to +185°F)
-
Humidity: 5–95% RH non-condensing
-
Short-Circuit Protection: Current-limited output (max 30 mA per channel)
-
Dimensions: ~30 mm × 128 mm × 145 mm (1.2 in × 5.0 in × 5.7 in) per module
-
Weight: ~0.5 kg (1.1 lbs) per module
-
Certifications: UL/cUL, CE, ATEX/IECEx (hazardous area approvals with appropriate barriers)
Customer Value & Operational Benefits
High-Resolution Output for Precise Actuator Control
The 16-bit resolution and ±0.05% accuracy ensure that small changes in the control signal (e.g., 0.01 mA) result in precise adjustments to field actuators. This is essential for flow control loops in pipelines, temperature control in reactors, or pressure regulation in compressors, where tight control reduces process variability and improves product quality.
Robust Isolation Prevents Field-Side Faults from Propagating
Channel-to-channel and channel-to-ground isolation breaks ground loops and protects the DCS from overvoltages caused by lightning, motor startups, or faulty actuators. This reduces the risk of cascading failures in the control system, which can lead to unplanned shutdowns and production losses.
Hot-Swappable Design Minimizes Loop Downtime
The ability to replace a faulty H92A0K9V0H00 module without shutting down the rack is invaluable for continuous process industries (chemicals, pharmaceuticals, oil & gas). Maintenance can be performed during scheduled plant rounds, avoiding costly loop interruptions or safety incidents.

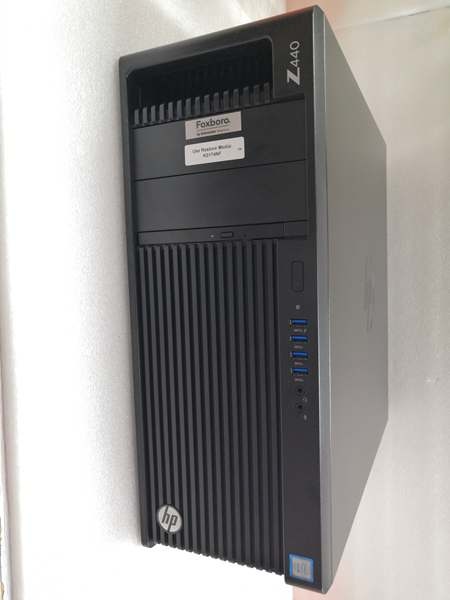

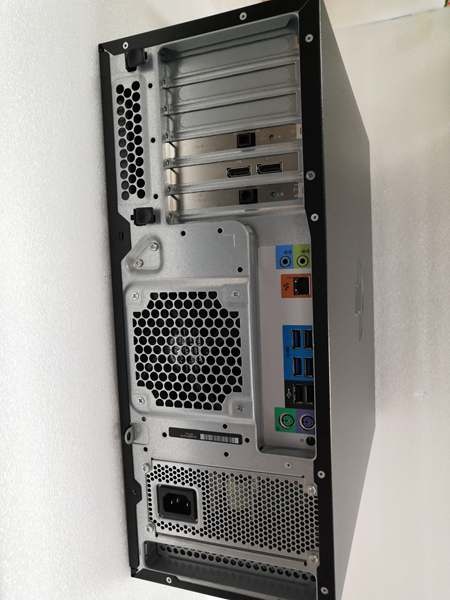

FOXBORO H92A0K9V0H00
Field Engineer’s Notes (From the Trenches)
When connecting 4–20 mA loops to the H92A0K9V0H00, always verify the load resistance does not exceed 750 Ω (20 mA × 750 Ω = 15 V drop, within the module’s compliance range). I’ve seen techs daisy-chain too many valves, causing the total load to exceed 1 kΩ—this forces the output voltage to rise, triggering the short-circuit protection and dropping the current to 0 mA. Also, use shielded twisted pair cable and ground the shield at the module end only; grounding both ends creates ground loops that induce noise, causing erratic valve movement.
Real-World Applications
In a Texas refinery, the H92A0K9V0H00 drives eight control valves on a fluid catalytic cracking (FCC) unit’s main fractionator. The 16-bit resolution allows the DCS to adjust valve positions in 0.01% increments, optimizing product yields. The 1500 VDC isolation prevents interference from nearby high-voltage motors, ensuring stable control even during unit upsets.
On an offshore natural gas platform, the H92A0K9V0H00 controls variable-speed drives (VSDs) for gas compressors. The module’s wide operating temperature range (-40°C to +70°C) withstands the platform’s unheated control room, while ATEX certification (with intrinsic safety barriers) ensures safe operation in potentially explosive atmospheres. Hot-swapping failed modules during crew changes minimizes impact on production.
