ABB DS3800NF0A1L1G | Industrial Control Module for Legacy Turbine/Power Systems

Description

Key Technical Specifications​

• Model Number: DS3800NF0A1L1G
• Manufacturer: ABB
• Bus Compatibility: VMEbus Rev. C.1 (8/16/32-bit data transfer)
• Form Factor: 6U Eurocard (160 mm × 233 mm, standard for industrial control modules)
• Operating Temperature: -40°C to +70°C (industrial-grade; suitable for turbine halls and harsh environments)
• I/O Channels: Configurable (digital/analog inputs/outputs, depending on variant)
• Communication Protocols: Modbus RTU, Profibus DP (inferred from ABB DS3800 series standards)
• Isolation: Galvanic isolation (optocouplers) for noise reduction
• Power Supply: 24V DC (system-powered; max 10W consumption)
• Weight: ~0.5 kg (1.1 lbs) (typical for 6U Eurocard modules)
• Certifications: CE, UL (inferred from ABB industrial product standards)

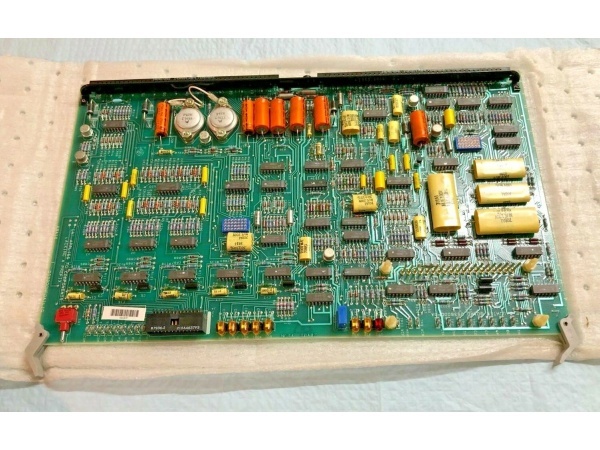

  DS3800NF0A1L1G

Field Application & Problem Solved​

• Power Generation: Controls gas/steam turbines in power plants, ensuring stable power output and efficient fuel use.
• Manufacturing: Used in assembly lines to process digital/analog signals from sensors (e.g., pressure, flow) and control actuators (e.g., valves, motors).
• Petrochemical Industry: Controls digital/analog signals from refinery equipment (e.g., distillation columns, pumps), ensuring safe and efficient operation in hazardous environments.

Installation & Maintenance Pitfalls (Expert Tips)​

• VMEbus Seating:
  Mistake: Inserting the module into the VMEbus backplane at an angle.
  Result: Bent pins or intermittent communication faults between the module and the controller.
  Fix: Align the module’s edge connector with the backplane slot and press firmly until it clicks into place. Use a torque wrench to tighten mounting screws to 0.5–1.0 Nm (7–9 in-lbs) for a secure connection.
• I/O Configuration:
  Mistake: Incorrectly configuring I/O channels (e.g., setting a digital input to analog).
  Result: Signal misinterpretation, leading to process instability (e.g., incorrect fuel flow adjustments).
  Fix: Refer to the ABB DS3800 System Manual (rev. 5.0) for correct configuration settings. Use a multimeter to verify signal types (digital/analog) before connecting field devices.
• Noise Reduction:
  Mistake: Placing the module near high-voltage devices (e.g., motors, transformers).
  Result: Electromagnetic interference (EMI) corrupts signals, causing false trips or alarms.
  Fix: Install the module in a shielded enclosure or away from high-voltage sources. Use shielded twisted pair (STP) cables for field device connections and ground the shield at the module end.
• Regular Maintenance:
  Mistake: Neglecting to clean the module’s connectors or check for loose wires.
  Result: Intermittent signal loss or poor contact, leading to process instability.
  Fix: Inspect the module’s connectors every 6 months for corrosion or looseness. Clean the connectors with a contact cleaner (e.g., DeoxIT) if necessary. Tighten any loose wires to the recommended torque.



  DS3800NF0A1L1G

Technical Deep Dive & Overview​

1. Signal Acquisition: Receives digital/analog signals from field devices (e.g., limit switches, pressure sensors) via configurable I/O channels.
2. Signal Conditioning: Conditions signals (e.g., filtering, scaling) to ensure they are in a format suitable for the VMEbus controller.
3. VMEbus Communication: Transmits conditioned signals to the VMEbus controller (e.g., ABB AC800M series) via the VMEbus Rev. C.1 interface.
4. Signal Output: Receives control commands from the VMEbus controller and sends them to field actuators (e.g., solenoid valves, motors) to adjust industrial processes.

• VMEbus Interface: Conforms to VMEbus Rev. C.1 standards, ensuring seamless integration with VME64 backplanes and controllers.
• I/O Channels: Configurable (digital/analog inputs/outputs) to adapt to diverse field device requirements.
• Galvanic Isolation: Uses optocouplers to protect sensitive controller circuits from voltage spikes and noise.
• Industrial-Grade Components: Rugged components (e.g., capacitors, resistors) ensure reliable operation in harsh environments.

• VMEbus Corruption: Improper backplane seating or loose connections can cause CRC errors.
• I/O Channel Failure: Overloading or incorrect configuration can damage I/O channels, leading to signal loss.
• Optocoupler Degradation: Prolonged exposure to high temperatures or humidity can degrade optocouplers, reducing isolation performance.

• Use a VMEbus analyzer to check for communication errors (e.g., CRC errors, timeout faults).
• Monitor the module’s status LED (if equipped): Blinking = normal operation; Solid = fault.
• Use a multimeter to check for continuity in I/O channels (should be 0 ohms for digital inputs, 4–20 mA for analog inputs).
