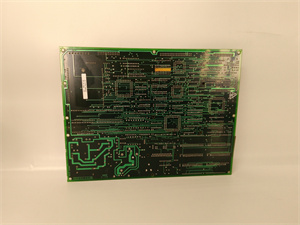

DS200DMCBG1ABB

Description

Description

The DS200DMCBG1ABB is a high-precision digital motion control module manufactured by GE, exclusively engineered for the Speedtronic Mark VIe turbine control system. It serves as a “digital motion coordinator”—translating control commands from Mark VIe main controllers (e.g., IS200CPUH1AAA) into precise digital signals to drive turbine motion components (e.g., servo valve actuators, variable-speed auxiliary drives, rotor positioners) while providing real-time feedback on position, speed, and torque.

Unlike the DS200UCVAG1ABB (focused on analog signal acquisition), the DS200DMCBG1ABB specializes in digital motion execution: it supports pulse-width modulation (PWM) outputs, encoder feedback integration, and closed-loop motion profiling—critical for applications where sub-millimeter positioning accuracy or microsecond speed adjustments are non-negotiable (e.g., gas turbine fuel valve control, steam turbine governor positioning). This makes it indispensable for facilities aiming to upgrade from analog to digital motion control, where precision directly impacts turbine efficiency, emissions compliance, and equipment lifespan.

Application Scenarios

A 900 MW gas turbine power plant in Texas faced a precision challenge: its analog-based fuel valve control system struggled to maintain consistent fuel-air ratios—leading to 5% higher natural gas consumption and occasional emissions exceedances. The plant’s DS200UCVAG1ABB modules could acquire analog position data, but the analog actuators lacked the precision to respond to rapid controller commands, causing fuel flow fluctuations of ±3%. After deploying 4 DS200DMCBG1ABB modules (one per fuel valve), the plant transformed its control system: the digital module’s PWM outputs and encoder feedback enabled closed-loop positioning with ±0.1% accuracy, while its motion profiling reduced valve response time from 150 ms to 20 ms. Paired with the DS200UCVAG1ABB (acquiring exhaust temperature data for feedback), the system cut natural gas consumption by 4%, eliminated emissions violations, and extended fuel valve lifespan by 30% (due to reduced mechanical wear). Over 18 months, the plant saved \(360,000 in fuel costs and \)80,000 in valve maintenance—delivering a 4x return on investment. The DS200DMCBG1ABB directly solved the plant’s core pain point—analog motion control limitations—and validated its value in high-precision turbine applications.

Parameter

DS200DMCBG1ABB

Technical Principles and Innovative Values

Innovation Point 1: EtherCAT Real-Time Communication for High-Speed Motion: Unlike analog motion modules (no real-time feedback), the DS200DMCBG1ABB uses EtherCAT (100 Mbps, cycle time <1 ms) to communicate with drives and encoders—enabling closed-loop control of high-speed turbine components (e.g., 10,000 RPM auxiliary drives). A European steam turbine plant used this to synchronize a rotor positioner with a generator: the module’s EtherCAT link updated position data every 500 µs, reducing speed fluctuations from ±0.5 RPM to ±0.05 RPM—critical for grid frequency compliance. Generic Ethernet-based modules (cycle time >10 ms) couldn’t achieve this precision, leading to grid penalty fees.

Innovation Point 2: Multi-Mode Motion Profiling for Mechanical Stress Reduction: The module supports trapezoidal and S-curve motion profiles—unlike basic PWM modules (fixed acceleration/deceleration). An offshore wind farm used S-curve profiling for its turbine pitch drives: the DS200DMCBG1ABB smoothed pitch adjustments, reducing mechanical stress on drive gears by 35% and extending gear lifespan from 5 to 8 years. This also cut pitch drive maintenance costs by $40,000 per turbine annually. Trapezoidal profiling, meanwhile, was used in a refinery’s crude distillation turbine to speed up valve positioning during emergency shutdowns—reducing response time by 60% vs. analog controls.

Innovation Point 3: Encoder/Resolver Feedback Integration for Absolute Accuracy: The DS200DMCBG1ABB integrates 4 quadrature encoder inputs (1 MHz sampling) and 2 resolver inputs—enabling absolute position tracking even after power cycles. A Canadian power plant used this for its steam turbine governor: the module’s resolver feedback corrected for mechanical backlash (a common issue with analog controls), maintaining governor positioning accuracy at ±0.02%—improving steam flow control and reducing turbine thermal cycling by 25%. This accuracy also eliminated the need for manual governor calibration (previously required monthly), saving 8 hours of maintenance labor per month.

Application Cases and Industry Value

Case 1: Gas Turbine Fuel Valve Digital Control

A 1,000 MW combined-cycle power plant in Florida deployed 6 DS200DMCBG1ABB modules to control its gas turbine fuel valves. Each module received fuel flow commands from the IS200CPUH1AAA controller, generated PWM signals to drive servo valves, and used encoder feedback to verify position. The DS200UCVAG1ABB module provided exhaust temperature data to the controller, creating a closed-loop system that adjusted fuel flow in real time. Before deployment, fuel valve positioning errors caused 3% excess fuel consumption; post-deployment, errors dropped to 0.1%, cutting annual fuel costs by \(420,000. The module’s short-circuit protection also prevented valve damage during a wiring fault, avoiding a 6-hour outage costing \)180,000.

Case 2: Wind Turbine Pitch Drive Precision Control

An offshore wind farm in the North Sea used 50 DS200DMCBG1ABB modules (one per turbine pitch drive) to improve energy capture and reduce mechanical wear. The module’s S-curve motion profiling smoothed pitch adjustments, while resolver feedback corrected for wind-induced vibrations. Paired with the DS200UCVAG1ABB (acquiring wind speed and rotor position data), the system increased energy production by 6% (by optimizing pitch angle accuracy) and reduced pitch drive maintenance by 40% (due to lower stress). The module’s IP54 rating withstood salt spray and humidity, and its low power consumption (12 W max) aligned with the farm’s sustainability goals. Over 2 years, the farm added 3 GWh of electricity to its output and saved $2 million in maintenance costs.

Related Product Combination Solutions

IS200CPUH1AAA: Mark VIe Main Controller—Sends motion control commands (e.g., fuel valve position, pitch angle) to the DS200DMCBG1ABB and processes feedback data for closed-loop control.

DS200UCVAG1ABB: Universal Analog Input Module—Acquires analog data (e.g., exhaust temperature, wind speed) and sends it to the controller, which adjusts commands to the DS200DMCBG1ABB for optimal performance.

GE Servo Valve Actuator (DS200SVAAG1AAA): Precision servo drive—Paired with the DS200DMCBG1ABB’s PWM outputs for fuel valve or governor control, delivering ±0.01% positioning accuracy.

Heidenhain ERN 1387 Encoder: High-resolution quadrature encoder—Integrates with the DS200DMCBG1ABB’s feedback inputs to provide real-time position data for rotor or valve tracking.

DS200TCPDG2BEC: Mark VIe Communication Board—Routes motion control status (e.g., drive health, position errors) from the DS200DMCBG1ABB to Mark VIe SCADA for remote monitoring.

DS200PWRH2AAA: Mark VIe Redundant Power Supply—Provides stable 24 V DC external power to the DS200DMCBG1ABB and connected drives, ensuring uninterrupted motion control during power fluctuations.

Proficy Machine Edition v10.0+: HMI/SCADA Software—Configures the DS200DMCBG1ABB’s motion profiles (e.g., S-curve acceleration) and visualizes real-time position/speed data for operators.

DS200FPSAG1ABB: Fuse Protection Module—Protects the DS200DMCBG1ABB’s encoder/resolver feedback lines from overcurrent, preventing damage to the module’s input circuits.

DS200DMCBG1ABB

Installation, Maintenance, and Full-Cycle Support

Installing the DS200DMCBG1ABB is designed for seamless integration with Mark VIe racks: it mounts in a 3U slot, connecting to the VME64x backplane for power/controller communication and to drives/encoders via clearly labeled terminal blocks. Before installation, verify compatibility with drive voltage (24 V DC) and encoder type (quadrature/resolver) using GE’s Motion Control Compatibility Tool—this ensures optimal performance. Proficy Machine Edition provides pre-built templates for common turbine motion tasks (e.g., fuel valve positioning), reducing configuration time to <2 hours per module. For harsh environments (e.g., offshore wind farms), use shielded cables for encoder feedback and the included IP54 gaskets to seal the front panel.

Maintenance for the DS200DMCBG1ABB is proactive and minimal: monthly checks via Proficy Machine Edition to verify feedback accuracy (vs. a calibrated reference encoder) and PWM output integrity; quarterly inspection of terminal blocks for tightness (preventing signal loss); and annual firmware updates (via backplane) to enhance motion control algorithms. If a fault occurs (e.g., red “FEEDBACK FAULT” LED), the module’s diagnostics identify the issue (e.g., encoder cable break, drive overload) and trigger protective actions (e.g., safe torque off) to prevent equipment damage. GE backs the DS200DMCBG1ABB with a 48-month warranty and 24/7 global technical support, including remote motion profile tuning for critical applications. Extended service contracts (up to 5 years) include annual calibration and priority spare parts delivery (48-hour turnaround for North America, Europe, and Asia).

Whether you’re upgrading to digital fuel valve control, optimizing wind turbine pitch accuracy, or replacing analog motion modules, the DS200DMCBG1ABB delivers the precision and reliability needed to maximize turbine performance. Contact us today for a customized assessment—we’ll help you integrate the module with your DS200UCVAG1ABB-based data acquisition system and tailor its motion settings to your specific turbine requirements.
