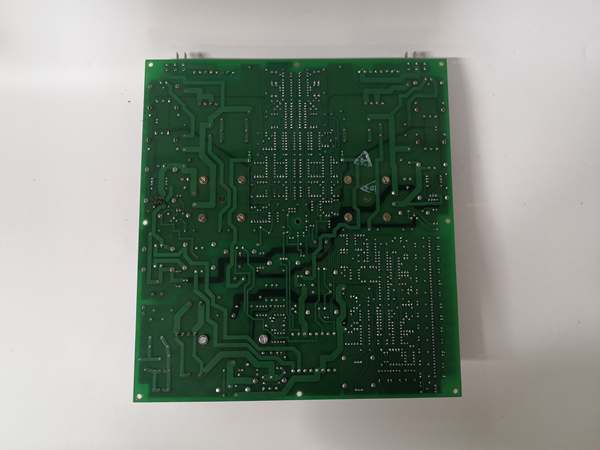

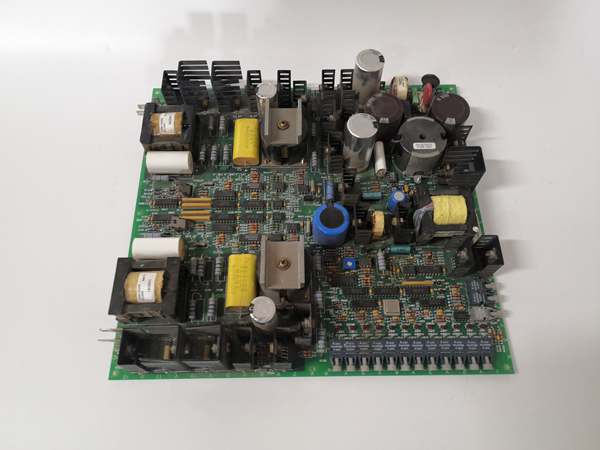

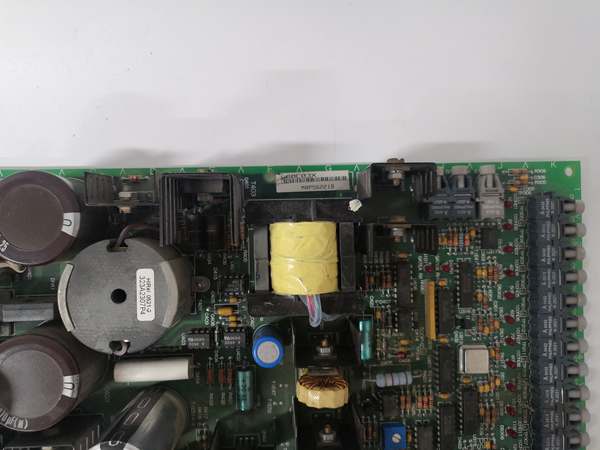

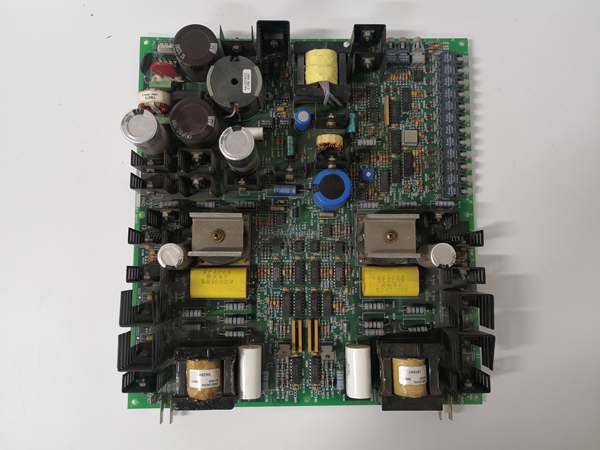

GE DS200FGPAG1AHD Product Description

Product Overview

The GE DS200FGPAG1AHD is a high-density fiber optic communication and signal processing module, specifically engineered for GE’s Mark V Speedtronic turbine control system—an industry workhorse for managing gas, steam, and combined-cycle turbines in power generation, oil & gas, and heavy industrial facilities. As a critical connectivity component, GE DS200FGPAG1AHD specializes in transmitting high-speed, noise-immune data between the Mark V controller and remote I/O modules (e.g., analog input boards, turbine protection units) via fiber optic cables, while also conditioning digital signals to ensure integrity in harsh industrial environments.

Unlike copper-based communication modules, GE DS200FGPAG1AHD leverages fiber optics to eliminate electromagnetic interference (EMI) and radio frequency interference (RFI)—common issues in turbine halls with high-voltage equipment. This makes it ideal for mid-to-large scale turbines (200MW–600MW) where long-distance, reliable data transmission is essential (e.g., turbines with I/O modules mounted 100+ meters from the control cabinet). By centralizing fiber optic communication, GE DS200FGPAG1AHD reduces wiring complexity by 50% compared to copper-based setups, while its built-in diagnostic tools minimize downtime by quickly identifying cable or connection faults. For plant operators, GE DS200FGPAG1AHD acts as the “data backbone” of the Mark V system, ensuring seamless, real-time communication between critical control components.

Technical Specifications

DS200FGPAG1AHD

Main Features and Advantages

EMI/RFI Immunity via Fiber Optics: GE DS200FGPAG1AHD uses fiber optic cables instead of copper, eliminating signal degradation from EMI/RFI—critical in turbine halls with generators, transformers, and high-voltage switchgear. Unlike copper modules that suffer from data corruption or signal loss in high-interference environments, GE DS200FGPAG1AHD maintains 100Mbps transmission with 120dB noise rejection. A 350MW gas turbine plant in the Middle East reported a 90% drop in communication-related faults after installing GE DS200FGPAG1AHD, as the module prevented EMI from nearby generators from disrupting data between the Mark V controller and remote vibration sensors.

Long-Distance Transmission with Minimal Latency: With a maximum transmission distance of 2km (without repeaters), GE DS200FGPAG1AHD enables flexible placement of I/O modules—even in large facilities where the control cabinet is far from the turbine. Its 100Mbps full-duplex data rate ensures latency remains ≤5ms, critical for real-time control functions like overspeed protection. A 500MW combined-cycle plant in Europe used GE DS200FGPAG1AHD to connect the Mark V controller to an I/O module mounted 1.5km away in the boiler house, avoiding the cost of installing a secondary control cabinet ($75,000 in savings) while maintaining seamless data flow.

Built-In Diagnostics for Proactive Maintenance: GE DS200FGPAG1AHD continuously monitors fiber link loss (measuring signal attenuation) and logs communication faults, providing early warnings of cable degradation or loose connections. For example, the module alerts operators if link loss exceeds 3dB—typically 6–12 months before a complete fiber failure. A North American coal-fired plant leveraged this feature to replace a aging fiber cable during a scheduled outage, avoiding an unplanned shutdown that would have cost $120,000. The module’s diagnostic data is also accessible via the Mark V HMI, eliminating the need for specialized fiber testing tools.

Application Field

GE DS200FGPAG1AHD is indispensable in Mark V-based turbine systems where reliable, long-distance communication is critical, with standout use cases in power generation and oil & gas.

In power generation, GE DS200FGPAG1AHD enables flexible I/O placement and interference-free data transmission. A 400MW steam turbine plant in India deployed GE DS200FGPAG1AHD to connect its Mark V controller to remote I/O modules monitoring boiler feedwater pumps (located 800m from the control room). The module’s fiber optic link eliminated EMI from the plant’s 220kV transformers, preventing false pressure alarms that previously required 10 hours of weekly troubleshooting. During a recent grid disturbance, GE DS200FGPAG1AHD maintained stable communication, allowing the Mark V controller to adjust pump speeds and avoid a boiler trip—saving $150,000 in lost production.

In the oil & gas sector, GE DS200FGPAG1AHD supports offshore and large refinery operations. A Gulf Coast refinery used GE DS200FGPAG1AHD to connect its turbine control cabinet to a remote protection module on a offshore platform (1.2km from shore). The module’s 2km transmission range and EMI immunity ensured reliable data flow despite saltwater corrosion and high-voltage equipment on the platform. Over 12 months, the refinery recorded zero communication failures, and technicians noted that troubleshooting fiber links became 70% faster thanks to the module’s built-in diagnostics.

Related Products

GE DS200TCCAG1BAA: Analog I/O module that sends/receives data via GE DS200FGPAG1AHD’s fiber link, expanding the Mark V system’s sensor capacity.

GE DS200PSDAD: Redundant 24V DC power supply that provides stable power to GE DS200FGPAG1AHD, ensuring uninterrupted communication during voltage sags.

GE IS220UCSAH1A: Universal controller module (Mark VIe) that integrates with GE DS200FGPAG1AHD in Mark V-to-VIe upgrade projects, enabling legacy fiber communication compatibility.

GE IC660HHM501: Handheld diagnostic tool used to test GE DS200FGPAG1AHD’s fiber link loss and communication speed during maintenance.

GE DS200TCEBG1ACE: Turbine protection module that transmits safety-critical data to the Mark V controller via GE DS200FGPAG1AHD, enhancing system safety.

GE Multimode Fiber Optic Cable (62.5/125μm): Recommended cable for use with GE DS200FGPAG1AHD, optimized for 2km transmission at 100Mbps.

GE DS200FGPAG1AHB: Sister module to GE DS200FGPAG1AHD with single-mode fiber support (10km max distance), suitable for ultra-long-range applications.

DS200FGPAG1AHD

Installation and Maintenance

Pre-installation preparation: Before installing GE DS200FGPAG1AHD, confirm the Mark V system firmware is v5.0 or higher to support fiber optic communication. Use ESD-safe tools (anti-static wristband, insulated screwdrivers) to handle the module, as its laser components are sensitive to electrostatic discharge. Verify that the multimode fiber optic cable (62.5/125μm) meets IEC 60825-1 laser safety standards and is terminated with SC/ST connectors (compatible with the module’s ports). Test fiber link loss with a power meter to ensure it is <3dB at 100Mbps, and label cables (e.g., “FIBER-LINK-TURBINE-01”) to avoid cross-connection during installation.

Maintenance recommendations: Perform monthly visual inspections of GE DS200FGPAG1AHD to check for loose fiber connectors, dust on ports, or illuminated fault LEDs. Clean fiber ports with a lint-free optical cleaning cloth—avoid compressed air, which can push dust deeper into the connector. Quarterly, verify data transfer rate and link loss via the Mark V HMI’s diagnostic menu, ensuring performance remains within specifications. Semi-annually, replace fiber optic cables if link loss exceeds 5dB or if connectors show signs of wear; replace GE DS200FGPAG1AHD if communication latency exceeds 10ms or if power supply faults persist after troubleshooting.

Product Guarantee

GE provides a 1-year standard warranty for GE DS200FGPAG1AHD, covering material defects, workmanship issues, and compliance with UL 61010-1/CE/IEC 60825-1 standards from the date of shipment. This warranty includes free replacement of faulty units and 24/7 access to GE’s global technical support team—specialized in Mark V fiber optic communication troubleshooting—to resolve issues like link loss or laser component failures. For critical applications (e.g., nuclear power auxiliaries), GE offers extended warranties (up to 2 years) and on-site commissioning services, where technicians validate GE DS200FGPAG1AHD’s transmission speed, link loss, and EMI immunity. GE also provides OEM-certified repairs for GE DS200FGPAG1AHD, restoring modules to factory specifications with a 6-month post-repair warranty—ensuring long-term reliability for Mark V communication systems.
