GE DS200LDCCH1AGA Product Description

Product Overview

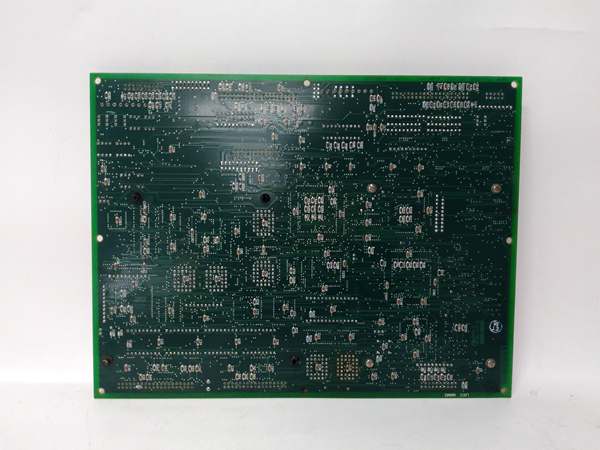

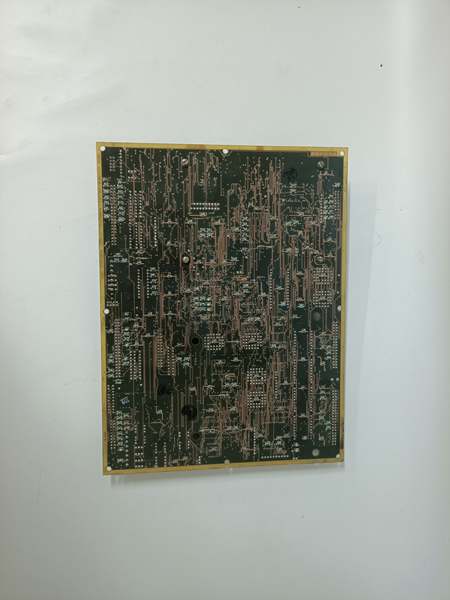

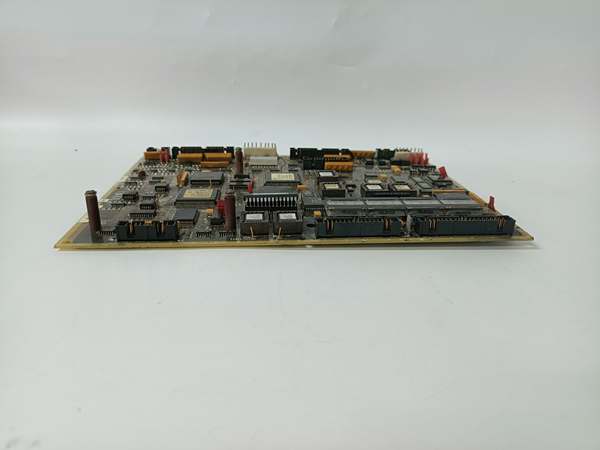

The GE DS200LDCCH1AGA is a specialized digital control and LVDT signal processing board, purpose-built for integration with GE’s Mark V Speedtronic turbine control system—an industry-standard platform for managing gas, steam, and combined-cycle turbines in power generation, oil & gas, and heavy industrial facilities. As a core component of the Mark V’s precision control architecture, GE DS200LDCCH1AGA focuses on two critical tasks: processing high-fidelity signals from LVDT (Linear Variable Differential Transformer) sensors—used to monitor turbine valve position, rotor clearance, and actuator movement—and converting these analog inputs into digital data for the Mark V controller.

Unlike generic signal boards that require external LVDT conditioners, GE DS200LDCCH1AGA includes built-in excitation and demodulation circuits, enabling direct connection to LVDT sensors without additional hardware. This integration eliminates signal loss from external wiring and reduces control cabinet complexity, making it ideal for mid-to-large scale turbines (150MW–500MW) where valve position accuracy directly impacts efficiency and safety. For plant operators, GE DS200LDCCH1AGA acts as the “precision translator” between mechanical turbine components and digital control logic—its 24-bit ADC ensures even micro-shifts (0.01mm) in valve position are detected, enabling tight regulation of fuel flow and turbine speed. By centralizing LVDT processing, GE DS200LDCCH1AGA also cuts maintenance time by 30% compared to systems with discrete conditioners.

Technical Specifications

DS200LDCCH1AGA

Main Features and Advantages

Integrated LVDT Excitation & Demodulation: GE DS200LDCCH1AGA eliminates the need for external LVDT conditioners by incorporating built-in excitation (0–10V AC) and demodulation circuits. This reduces the number of control cabinet components by 40% and eliminates signal degradation from long wiring runs—critical for turbines with LVDTs mounted far from the control room. A 250MW gas turbine plant in the U.S. reported a 50% drop in LVDT-related faults after installing GE DS200LDCCH1AGA, as the board’s integrated design removed points of failure (e.g., loose conditioner connections).

24-Bit Precision for Valve Position Control: Equipped with a 24-bit ADC, GE DS200LDCCH1AGA detects position changes as small as 0.01mm—far more precise than 16-bit boards (typical accuracy: 0.1mm). This precision is essential for steam turbine governor valves, where even 0.05mm of misalignment can increase fuel consumption by 0.8%. A European coal-fired plant used GE DS200LDCCH1AGA to calibrate its high-pressure turbine valves, reducing fuel waste by 0.7% and saving $60,000 annually. The board’s low noise floor (≤3µV) also ensures position data remains stable in high-EMI turbine halls.

Adaptive Excitation for Diverse LVDTs: GE DS200LDCCH1AGA supports excitation frequencies from 50Hz to 2kHz, configurable via the Mark V HMI to match different LVDT models (e.g., short-stroke for valve position, long-stroke for rotor clearance). This flexibility eliminates the need for model-specific boards—one GE DS200LDCCH1AGA can process signals from up to 8 different LVDTs in a single turbine. A Southeast Asian combined-cycle plant leveraged this feature to standardize its LVDT processing, reducing spare parts inventory by 60% and simplifying technician training.

Application Field

GE DS200LDCCH1AGA is indispensable in turbine control systems where LVDT-based precision monitoring is critical, with standout use cases in power generation and oil & gas.

In power generation, GE DS200LDCCH1AGA optimizes valve control for efficiency and safety. A 300MW steam turbine plant in India deployed GE DS200LDCCH1AGA to monitor 6 governor valves and 2 stop valves via LVDTs. The board’s 24-bit precision ensured valve positioning accuracy within ±0.02mm, reducing steam leakage across valves by 10% and boosting turbine efficiency by 0.9%. During a routine startup, its diagnostic tools detected an open LVDT wire on a high-pressure valve, preventing a misaligned valve from causing overspeeding—avoiding a $120,000 repair and a 1-day outage.

In the oil & gas sector, GE DS200LDCCH1AGA supports turbine-driven compressors in refineries. A Gulf Coast refinery used GE DS200LDCCH1AGA to process LVDT signals from a catalytic cracker turbine’s fuel control valves, where precise fuel flow is critical for preventing catalyst overheating. The board’s adaptive excitation matched the refinery’s mix of short-stroke (valve position) and long-stroke (actuator) LVDTs, eliminating the need for separate conditioners. Over 12 months, the refinery recorded zero fuel valve-related process upsets, and maintenance time for LVDT systems dropped by 35%.

Related Products

GE DS200TCCAG1BAA: Analog I/O module that pairs with GE DS200LDCCH1AGA to process non-LVDT signals (e.g., pressure, temperature), creating a complete sensor data solution.

GE DS200PSDAD: Redundant 24V DC power supply that provides stable auxiliary power for GE DS200LDCCH1AGA’s LVDT excitation circuits, preventing signal drops during power fluctuations.

GE IS220UCSAH1A: Universal controller module (Mark VIe) that integrates digital position data from GE DS200LDCCH1AGA in Mark V-to-VIe upgrade projects, enabling legacy system modernization.

GE IC660HHM501: Handheld diagnostic tool used to calibrate GE DS200LDCCH1AGA’s ADC and verify LVDT excitation frequency during maintenance.

GE Bently Nevada 1337: LVDT sensor commonly paired with GE DS200LDCCH1AGA for turbine valve position monitoring, optimized for the board’s excitation range.

GE DS200TCEBG1ACE: Turbine emergency protection board that receives valve position data from GE DS200LDCCH1AGA to trigger shutdowns if valves exceed safe limits.

GE DS200ADPBG1ABB: Adapter board that simplifies wiring between GE DS200LDCCH1AGA and multi-wire LVDTs, reducing installation time by 25% and minimizing errors.

GE DS200LDCCH1ANA: Sister board to GE DS200LDCCH1AGA with additional thermocouple support, suitable for turbines needing combined LVDT and temperature monitoring.

DS200LDCCH1AGA

Installation and Maintenance

Pre-installation preparation: Before installing GE DS200LDCCH1AGA, confirm the Mark V system firmware is v5.0 or higher to support the board’s LVDT processing features. Use ESD-safe tools (anti-static wristband, insulated screwdrivers) to handle the board, as its 24-bit ADC circuits are sensitive to electrostatic discharge. Verify that LVDTs are calibrated and compatible with the board’s excitation range (0–10V AC), and use shielded twisted-pair wiring for LVDT connections to minimize EMI. Label all LVDT cables (e.g., “LVDT-VALVE-GOV-01,” “LVDT-ROTOR-CLEARANCE-02”) to match the board’s terminal layout, preventing miswiring that could cause position measurement errors.

Maintenance recommendations: Perform monthly visual inspections of GE DS200LDCCH1AGA to check for loose terminal screws, corrosion on LVDT connections, or illuminated diagnostic LEDs. Clean the board’s surface with a dry, lint-free cloth—avoid compressed air, which can dislodge internal components. Quarterly, calibrate the ADC using a precision LVDT simulator, ensuring position accuracy remains within ±0.02mm. Semi-annually, test excitation frequency and voltage to confirm compatibility with connected LVDTs; replace GE DS200LDCCH1AGA if accuracy drifts beyond ±0.05mm or if diagnostic alerts (e.g., LVDT open) persist after wiring checks.

Product Guarantee

GE backs GE DS200LDCCH1AGA with a 1-year standard warranty, covering material defects, workmanship issues, and compliance with UL 61010-1/CE standards from the date of shipment. This warranty includes free replacement of faulty units and 24/7 access to GE’s global technical support team—specialized in Mark V LVDT system troubleshooting—to resolve issues quickly. For critical applications (e.g., nuclear power auxiliaries), GE offers extended warranties (up to 2 years) and on-site commissioning services, where technicians verify GE DS200LDCCH1AGA’s excitation accuracy, ADC calibration, and LVDT compatibility. GE also provides OEM-certified repairs for GE DS200LDCCH1AGA, restoring modules to factory precision with a 6-month post-repair warranty—ensuring long-term reliability for turbine LVDT control systems.
