GE DS200SDCCG1AFD Product Description

Product Overview

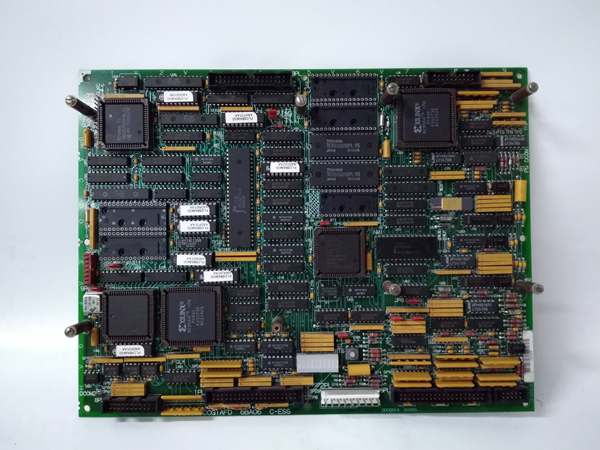

The GE DS200SDCCG1AFD is a high-reliability digital control and communication module, specifically designed for seamless integration with GE’s Mark V Speedtronic turbine control system—an industry-leading platform widely used in power generation, oil & gas, and heavy industrial facilities to manage gas, steam, and combined-cycle turbines. As a core digital processing component of the Mark V system, GE DS200SDCCG1AFD undertakes two critical tasks: executing digital control logic for turbine auxiliary systems (such as lube oil pump start/stop control and valve position switching) and enabling data communication between distributed Mark V modules (e.g., I/O boards, protection units) via the system’s internal bus.

Unlike generic digital modules that lack turbine-specific logic, GE DS200SDCCG1AFD is preloaded with basic control algorithms tailored to auxiliary turbine operations, reducing the need for custom programming and shortening commissioning time. This makes it ideal for mid-to-large scale turbines (150MW–600MW) where precise digital control and stable inter-module communication are essential to avoid unplanned downtime. By centralizing digital control and communication functions in a single Mark V-compatible slot, GE DS200SDCCG1AFD simplifies control cabinet design, reducing component count by 25% compared to discrete control and communication solutions. For plant operators, GE DS200SDCCG1AFD acts as a “digital bridge” between the Mark V main controller and field devices, ensuring timely execution of control commands and reliable data transmission.

Technical Specifications

DS200SDCCG1AFD

Main Features and Advantages

Preloaded Auxiliary Control Logic: GE DS200SDCCG1AFD comes with preprogrammed control algorithms for common turbine auxiliary systems, such as lube oil pump sequence control, cooling fan on/off logic, and auxiliary valve switching. This eliminates the need for on-site programming, cutting commissioning time by 30% compared to blank digital modules. A 280MW gas turbine plant in the Middle East used this feature to commission three auxiliary systems in just 8 hours—far less than the 24 hours required with generic modules—avoiding delays in turbine startup.

Dual Communication Interfaces for Flexibility: Equipped with both the Mark V backplane bus (for internal module communication) and an RS-485 port (for Modbus RTU communication with external devices like SCADA systems), GE DS200SDCCG1AFD enables seamless data exchange across the entire control ecosystem. Unlike modules with only backplane communication, this dual-interface design allows plants to integrate the Mark V system with existing external monitoring tools without additional gateways. A North American coal-fired plant leveraged the RS-485 port to transmit auxiliary system status data to a plant-wide SCADA system, reducing the need for separate communication modules and saving $15,000 in hardware costs.

Robust Fault Detection and Diagnostics: GE DS200SDCCG1AFD includes real-time fault detection for all digital inputs and outputs, alerting operators to issues like open circuits, short circuits, or overloaded outputs within 5ms. The module also logs communication bus errors (e.g., backplane signal loss) and power supply fluctuations, storing up to 100 fault events for post-analysis. A European combined-cycle plant used this diagnostic feature to identify a loose wire on a lube oil pump input before it caused a false shutdown, saving 6 hours of unscheduled maintenance and $90,000 in lost production.

Application Field

GE DS200SDCCG1AFD is indispensable in Mark V-based turbine systems where digital control of auxiliary equipment and reliable inter-module communication are critical, with standout use cases in power generation and oil & gas.

In power generation, GE DS200SDCCG1AFD optimizes auxiliary system operation. A 320MW steam turbine plant in India deployed GE DS200SDCCG1AFD to control its lube oil system (6 inputs for pressure switches, 4 outputs for pump motors) and cooling fan array (4 inputs for temperature sensors, 4 outputs for fan drives). The module’s preloaded logic ensured lube oil pumps started in the correct sequence during turbine startup, while its fault detection prevented a fan motor burnout by alerting operators to an overloaded output. Over 12 months, the plant recorded a 50% reduction in auxiliary system-related faults.

In the oil & gas sector, GE DS200SDCCG1AFD supports turbine-driven compressors. A Gulf Coast refinery used GE DS200SDCCG1AFD to control the fuel gas skid for a catalytic cracker turbine (8 inputs for pressure/temperature switches, 6 outputs for control valves) and communicate with a refinery-wide SCADA system via Modbus RTU. The module’s dual communication interfaces enabled real-time monitoring of fuel gas pressure, while its robust design withstood the refinery’s high-vibration and high-temperature environment. During a refinery-wide power fluctuation, GE DS200SDCCG1AFD maintained stable communication with the Mark V controller, preventing a fuel supply interruption that would have cost $65,000 in lost production.

Related Products

GE DS200TCCAG1BAA: Analog I/O module that exchanges process data with GE DS200SDCCG1AFD via the Mark V backplane, enabling integration of analog sensors into digital control logic.

GE DS200PSDAD: Redundant 24V DC power supply that provides stable power to GE DS200SDCCG1AFD, ensuring uninterrupted control and communication during voltage sags.

GE IS220UCSAH1A: Universal controller module (Mark VIe) that integrates control logic from GE DS200SDCCG1AFD in Mark V-to-VIe upgrade projects, preserving legacy auxiliary control functions.

GE IC660HHM501: Handheld diagnostic tool used to test GE DS200SDCCG1AFD’s input/output circuits and communication bus during maintenance.

GE DS200TCEBG1ACE: Turbine protection module that receives status signals from GE DS200SDCCG1AFD to trigger emergency shutdowns if auxiliary systems fail.

GE DS200SDCCG1AFE: Sister module to GE DS200SDCCG1AFD with 20 digital inputs and 16 digital outputs, suitable for larger auxiliary systems with more field devices.

GE Modbus RTU Gateway (IC200GBI001): External gateway that extends GE DS200SDCCG1AFD’s Modbus communication range, ideal for plants with distant SCADA systems.

GE DS200DCFBG1BKC: DC power distribution module that supplies isolated power to GE DS200SDCCG1AFD’s external communication circuits, reducing noise interference.

DS200SDCCG1AFD

Installation and Maintenance

Pre-installation preparation: Before installing GE DS200SDCCG1AFD, confirm the Mark V system firmware is v4.8+ to support the module’s preloaded logic and communication protocols. Use ESD-safe tools (anti-static wristband, insulated screwdrivers) to handle the module, as its digital logic circuits are sensitive to electrostatic discharge. Verify that digital input/output signals match the module’s 24V DC specification, and use twisted-pair wiring for RS-485 communication to minimize noise. Label all input/output cables (e.g., “IN-PRESS-LUBE-01,” “OUT-PUMP-LUBE-02”) and communication wires (e.g., “MODBUS-SCADA-01”) to avoid miswiring that could disrupt control logic or communication.

Maintenance recommendations: Perform monthly visual inspections of GE DS200SDCCG1AFD to check for loose connectors, corrosion on terminals, or illuminated fault LEDs. Clean the module’s surface with a dry, lint-free cloth—avoid compressed air or liquids, which can damage internal circuits. Quarterly, test input/output channels using a 24V DC signal source to verify fault detection functionality, and check Modbus RTU communication by sending test commands from the SCADA system. Semi-annually, back up the module’s user-configurable logic via the Mark V HMI, and replace GE DS200SDCCG1AFD if processing latency exceeds 15ms or if communication errors persist after bus troubleshooting.

Product Guarantee

GE provides a 1-year standard warranty for GE DS200SDCCG1AFD, covering material defects, workmanship issues, and compliance with UL 61010-1/CE/IEC 61131-3 standards from the date of shipment. This warranty includes free replacement of faulty units and 24/7 access to GE’s global technical support team—specialized in Mark V digital control and communication troubleshooting—to resolve issues like logic execution errors or bus communication failures. For critical applications (e.g., nuclear power auxiliary control systems), GE offers extended warranties (up to 2 years) and on-site commissioning services, where technicians validate GE DS200SDCCG1AFD’s control logic accuracy, communication stability, and fault detection performance. GE also provides OEM-certified repairs for GE DS200SDCCG1AFD, restoring modules to factory specifications with a 6-month post-repair warranty—ensuring long-term reliability for Mark V turbine auxiliary control and communication systems.
