Description

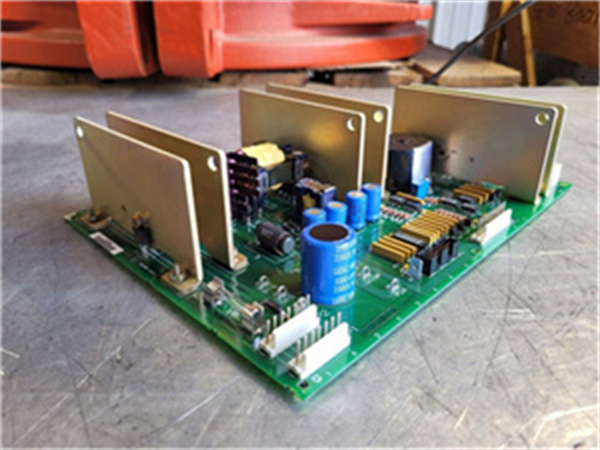

GE DS200TCPSG1ARE Digital Relay Product Details
Overview
GE DS200TCPSG1ARE is a digital relay for protection and control of power systems.It uses advanced microprocessor technology and has the following features:
High Accuracy:High measurement accuracy,can reliably detect various faults in the power system.
Multi-function:Supports a variety of protection and control functions to meet the needs of various power systems.
Flexible:Can be flexibly configured according to user needs.
Easy to use:Easy to install,operate and maintain.
Product Specifications
Model:DS200TCPSG1ARE
Brand:GE
Series:Multilin DS200
Type:Digital Relay
Application:Power System Protection and Control
Protection Function:
DC Power Supply Overvoltage Protection
DC Power Supply Undervoltage Protection
DC Ground Fault Protection
Transformer Overmagnetization Protection
Transformer Overtemperature Protection
AC System Overvoltage Protection
AC System Undervoltage Protection
AC System Overcurrent Protection
Frequency Protection
Synchronous Generator Out-of-step Protection
Excitation Overcurrent Protection
Excitation Undervoltage Protection
Control Function:
Circuit Breaker Control
Remote Control
Telemetry
Interface:RS232,RS485,Ethernet
Operating Temperature:-40°C to 85°C
Protection Grade:IP65
Dimensions:230 x 160 x 80 mm
Weight:2.5 kg
Product Function
DC Power Supply Protection:Provides DC power supply overvoltage protection,undervoltage protection and ground fault protection to ensure the safe operation of the DC system.
Transformer Protection:Provides transformer overmagnetization protection and overtemperature protection to prevent transformer damage.
AC system protection:Provide AC system overvoltage protection,undervoltage protection and overcurrent protection to prevent power system failure.
Generator protection:Provide synchronous generator loss of step protection and excitation overcurrent protection,undervoltage protection to ensure the safe operation of the generator.
Control function:Can control the closing and opening of the circuit breaker,and can remotely control the function of the relay.
Telemetry function:Can remotely measure various parameters of the power system,such as voltage,current,frequency,etc.
