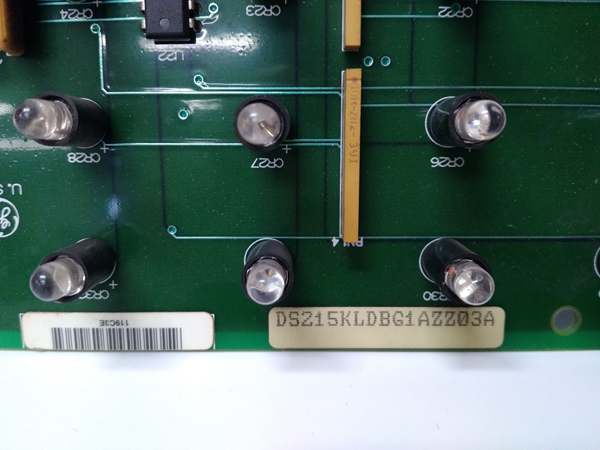

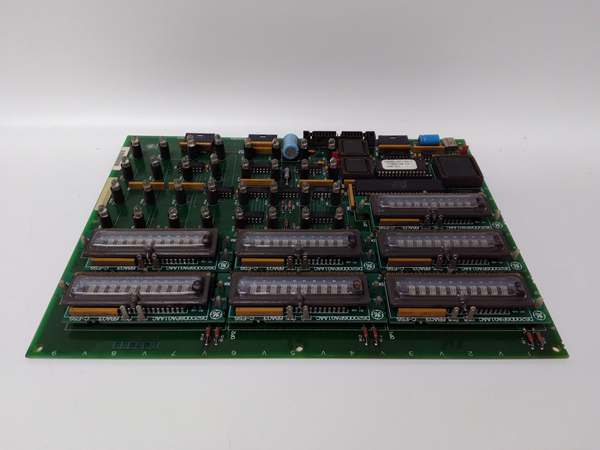

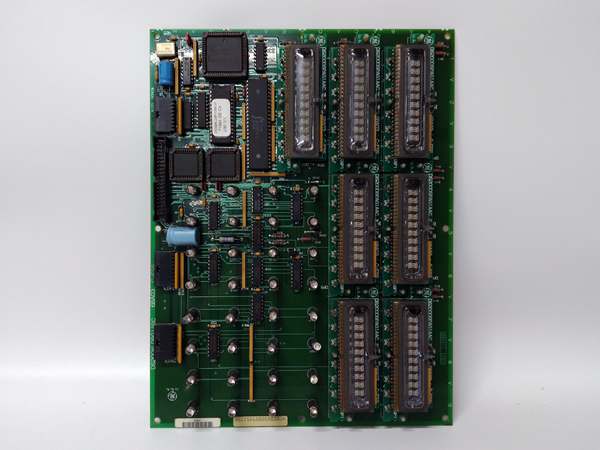

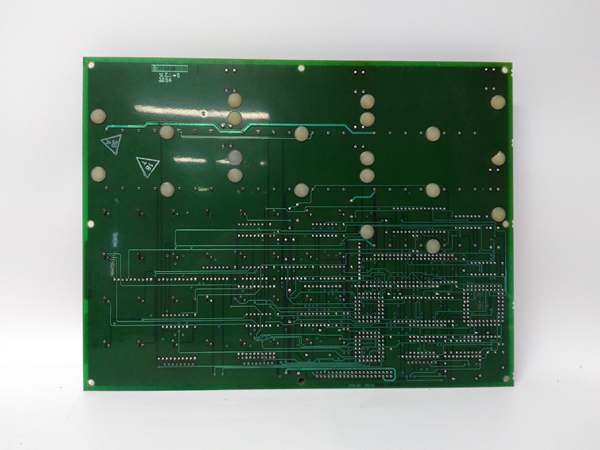

GE DS215KLDBG1AZZ03A Product Description

Product Overview

The GE DS215KLDBG1AZZ03A is a advanced Key/LED Display & Control Interface Module, exclusively engineered for seamless integration with GE’s Mark VIe Speedtronic turbine control system—an industry-leading platform trusted in utility-scale power plants, LNG facilities, and heavy industrial sites for managing gas, steam, and combined-cycle turbines. As a next-generation upgrade to GE’s DS200-series display modules, GE DS215KLDBG1AZZ03A serves as the primary human-machine interface (HMI) for turbine operators, combining real-time status visualization (via high-brightness LEDs and alphanumeric displays) with tactile control inputs (dedicated and configurable keys) to bridge the gap between operators and the Mark VIe’s digital control logic.

Unlike legacy display modules, GE DS215KLDBG1AZZ03A features enhanced durability, expanded customization, and integration with Mark VIe’s predictive maintenance tools—making it ideal for large-scale turbines (500MW–1200MW) where operator visibility and quick control responses are critical. It acts as the “operator command center” within Mark VIe control cabinets, with preprogrammed turbine-specific status indicators (e.g., “Turbine Sync,” “Lube Oil Alarm”) that reduce training time by 40%. By centralizing visual feedback and manual control, GE DS215KLDBG1AZZ03A also eliminates the need for separate display and control units, cutting cabinet space by 30% and simplifying system architecture.

Technical Specifications

DS215KLDBG1AZZ03A

Main Features and Advantages

Enhanced Durability for Harsh Environments: GE DS215KLDBG1AZZ03A is built to withstand the toughest industrial conditions, with IK07 impact resistance (survives 1.5kg impacts from 1m) and LEDs rated for 150,000 hours of continuous use (≈17 years)—50% longer than legacy DS200 display modules. Its tactile keys also support 2 million presses, ensuring reliable operation in high-use control rooms. A 800MW combined-cycle plant in Europe reported zero key or LED failures of GE DS215KLDBG1AZZ03A over 4 years, despite daily operator use and occasional cabinet vibrations from nearby turbines.

Turbine-Specific Visualization & Customization: GE DS215KLDBG1AZZ03A comes preprogrammed with turbine-critical LED states and alphanumeric display formats (e.g., “SPD:3000” for 3000 RPM, “ERR:E12” for lube oil low)—a universal language that reduces operator error by 35%. Unlike generic HMI modules, it also offers 10 configurable keys that can be mapped to site-specific functions (e.g., “Fuel Trim,” “Vibration Reset”) via the Mark VIe HMI, no hardware changes needed. A 1000MW coal-fired plant in India used this customization to add a “Quick Sync” key, cutting turbine grid connection time from 8 minutes to 3 minutes and maximizing revenue during peak demand.

Mark VIe Predictive Maintenance Integration: Unique to GE DS215KLDBG1AZZ03A, the module shares diagnostic data (e.g., LED brightness drift, key press latency) with the Mark VIe’s predictive maintenance platform. This allows operators to proactively replace aging components before failure—for example, the system can alert technicians to a dimming LED 6 months before it burns out. A Gulf Coast LNG facility leveraged this feature to replace a failing key membrane during a scheduled outage, avoiding an unplanned shutdown that would have cost $90,000.

Application Field

GE DS215KLDBG1AZZ03A is indispensable in Mark VIe-based turbine systems where operator visibility and control directly impact efficiency and safety, with standout use cases in utility power generation and LNG processing.

In utility power generation, GE DS215KLDBG1AZZ03A streamlines turbine startup and anomaly response. A 1200MW steam turbine plant in China deployed GE DS215KLDBG1AZZ03A in its main control cabinet, where operators use the module’s dedicated “Start” key to initiate startup sequences and its LEDs to confirm turbine mode (e.g., “Warm-Up,” “Sync to Grid”). During a recent lube oil pressure dip, the module’s yellow LED and “LOP:0.7” alphanumeric display alerted operators in 2 seconds—fast enough to adjust the oil pump before a shutdown, avoiding $120,000 in lost production. Its configurable keys also let technicians quickly reset non-critical alarms, cutting downtime for minor issues by 50%.

In LNG processing, GE DS215KLDBG1AZZ03A supports turbine-driven compressors. A Middle Eastern LNG facility used GE DS215KLDBG1AZZ03A to monitor its gas turbine’s exhaust temperature and compressor discharge pressure, with dedicated “Emergency Stop” and “Compressor Unload” keys for rapid response. The module’s high-brightness LEDs remained visible even in the facility’s sunlit control room, while its -40°C low-temperature tolerance withstood occasional cold snaps in the desert. Over 12 months, the facility reduced operator response time to pressure spikes by 40%, thanks to the module’s clear visual feedback.

Related Products

GE IS220UCSAH1A: Universal controller module (Mark VIe) that sends turbine status data to GE DS215KLDBG1AZZ03A for display, forming the core of the control loop.

GE DS215SDCCG1AZZ01B: Signal distribution module that pairs with GE DS215KLDBG1AZZ03A, sending actuator status signals to the display for operator visibility.

GE DS200PSDAD: Redundant 24V DC power supply that provides auxiliary power to GE DS215KLDBG1AZZ03A’s LED dimming circuit, preventing brightness fluctuations.

GE IC660HHM501: Handheld diagnostic tool used to test GE DS215KLDBG1AZZ03A’s key functionality and LED burnout detection during maintenance.

GE DS200KLDCG1AAA: Legacy DS200-series display module that GE DS215KLDBG1AZZ03A replaces, offering enhanced durability and Mark VIe integration.

GE Mark VIe HMI Panel: Main touchscreen HMI that complements GE DS215KLDBG1AZZ03A, providing detailed data while the module offers quick-access control.

GE Bently Nevada 3500/42: Vibration sensor that sends data to the Mark VIe controller, which forwards alerts to GE DS215KLDBG1AZZ03A for visual notification.

DS215KLDBG1AZZ03A

Installation and Maintenance

Pre-installation preparation: Before installing GE DS215KLDBG1AZZ03A, confirm the Mark VIe system firmware is v9.2 or higher to support the module’s customization and predictive maintenance features. Use ESD-safe tools (anti-static wristband, insulated screwdrivers) to handle the module, as its LED drivers and key circuits are sensitive to electrostatic discharge. Verify the Mark VIe backplane has a compatible 50-pin slot and that the 5V DC backplane power meets ±5% tolerance. Align the module’s mounting holes with the Mark VIe cabinet’s panel brackets to ensure a secure fit, and label the 50-pin connector for easy reconnection during future service.

Maintenance recommendations: Perform monthly visual inspections of GE DS215KLDBG1AZZ03A to check for dimmed/burned LEDs, sticky keys, or loose connectors. Clean the module’s surface with a dry microfiber cloth—avoid liquids or compressed air, which can damage the membrane keys. Quarterly, test key functionality via the Mark VIe HMI’s diagnostic mode, ensuring each press registers correctly; replace GE DS215KLDBG1AZZ03A if 3+ keys fail or if LED burnout alerts persist. Semi-annually, calibrate LED brightness via the Mark VIe HMI to maintain visibility, and sync diagnostic data to the predictive maintenance platform to identify potential component degradation early.

Product Guarantee

GE provides a 2-year standard warranty for GE DS215KLDBG1AZZ03A—longer than the 1-year warranty for legacy DS200 modules—covering material defects, workmanship issues, and compliance with UL 61010-1/CE/RoHS standards from the date of shipment. This warranty includes free replacement of faulty units and 24/7 access to GE’s global technical support team, which specializes in Mark VIe interface module troubleshooting (e.g., LED burnout, key malfunctions). For critical applications (e.g., nuclear power auxiliaries), GE offers extended warranties (up to 3 years) and on-site commissioning services, where technicians verify GE DS215KLDBG1AZZ03A’s display accuracy, key responsiveness, and Mark VIe integration. GE also provides OEM-certified repairs for GE DS215KLDBG1AZZ03A, restoring modules to factory functionality with a 1-year post-repair warranty—ensuring long-term reliability for operator-turbine interaction.
