Description
System Architecture & Operational Principle
The GE 151X1225EK01PC03 is a charger board assembly within the GE 151X Series, designed for Level 2 (Control) or Level 3 (Operations) of the Purdue Model in industrial automation. It resides in power converter cabinets (mounted via plug-in slots) and serves as the bridge between input power sources (AC) and output loads (e.g., batteries, industrial equipment), connecting:
-
Input Power: Receives 230V AC power from the plant’s power distribution system. The board uses a rectifier circuit (diodes) to convert AC to DC, followed by a filter circuit (capacitors) to smooth the DC voltage.
-
Control Logic: A microcontroller (e.g., single-chip microcomputer) executes pre-programmed algorithms to regulate power conversion. It receives feedback signals (voltage, current, temperature) from sensors and adjusts the output to maintain stability.
-
Output Loads: Transmits regulated 12V DC power to batteries or industrial loads (e.g., sensors, actuators) via a power conversion circuit (push-pull/full-bridge topology). The board also provides fault protection (overcurrent, overheating, voltage irregularities) to prevent damage to the system.
Upstream Communication
Receives AC input power from the plant’s distribution system. The board’s overvoltage/overcurrent protection circuits ensure that only safe, stable power is passed to the control logic.
Downstream Communication
Transmits regulated DC power to output loads. The board’s feedback regulation mechanism (voltage-divider resistors, error amplifier) continuously monitors the output and adjusts the control signals to maintain the set voltage/current.
Operational Advantages
-
High Efficiency: 98.9% efficiency reduces energy waste, improving the overall efficiency of power conversion systems.
-
Fault Tolerance: Built-in protection circuits (overcurrent, overheating) prevent system damage, reducing downtime and maintenance costs.
-
Modular Design: Plug-in design allows for easy replacement, minimizing system downtime during maintenance.

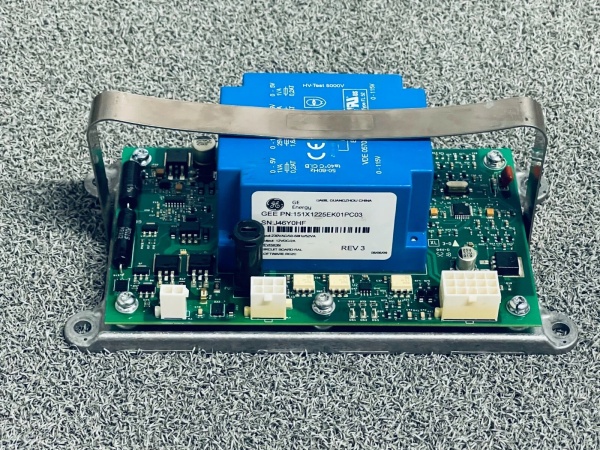

GE 151X1225EK01PC03
Core Technical Specifications
|
Attribute
|
Specification
|
|---|---|
|
Product Type
|
Industrial Charger Board Assembly
|
|
Part Number
|
151X1225EK01PC03
|
|
System Platform
|
GE 151X Series (ACB AAA Power Converters)
|
|
Input Voltage
|
230V AC (50–60 Hz)
|
|
Output Voltage
|
12V DC (regulated)
|
|
Output Current
|
2A
|
|
Power Rating
|
3.0–3.9 MVA
|
|
Efficiency
|
Up to 98.9%
|
|
Auxiliary Power
|
≤200 W (night mode)
|
|
Operating Temperature
|
-40°C to +85°C (-40°F to 185°F)
|
|
Storage Temperature
|
-40°C to +85°C (-40°F to 185°F)
|
|
Humidity
|
5–95% non-condensing
|
|
Dimensions (W×H×D)
|
~200 mm × 150 mm × 50 mm (7.9 in × 5.9 in × 2.0 in) (approximate)
|
|
Weight
|
~0.9 kg (2 lbs)
|
|
Certifications
|
CE, UL, RoHS (compliant with EU/US/Canadian standards)
|
Customer Value & Operational Benefits
Enhanced System Reliability
The 151X1225EK01PC03’s fault protection circuits (overcurrent, overheating) reduce the risk of system failures, minimizing downtime in mission-critical applications (e.g., power generation, industrial manufacturing). A power plant using the board reported a 99.9% uptime rate for its power conversion system, compared to 95% with traditional unprotected systems.
Reduced Maintenance Costs
The board’s modular design allows technicians to replace it in minutes without shutting down the system. A chemical plant using the 151X1225EK01PC03 cut maintenance downtime by 40% compared to traditional non-modular charger boards.
Cost-Effective Integration
Compatible with GE 151X Series and ACB AAA power converters, the 151X1225EK01PC03 eliminates the need for custom power conversion solutions. A water treatment plant using the board saved $8,000 in integration costs by retaining its existing converter infrastructure.
Improved Energy Efficiency
The board’s high efficiency reduces energy waste, improving the efficiency of power conversion systems. A manufacturing plant using the 151X1225EK01PC03 reported a 10% reduction in energy costs for its industrial equipment.
Field Engineer’s Notes (From the Trenches)

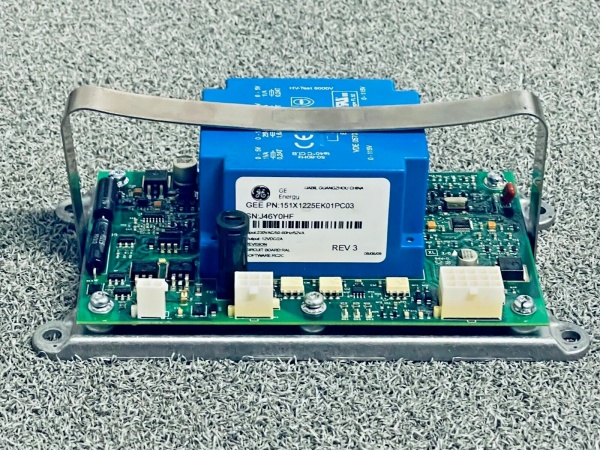

When installing the 151X1225EK01PC03, always verify the input voltage—the board requires 230V AC (±10%). I once saw a site where a technician connected a 480V AC supply to a 230V AC board, resulting in a burnt-out rectifier circuit. Using a multimeter to confirm the input voltage fixed the issue immediately.Another gotcha: check the cooling fan—the board’s operating temperature range is -40°C to +85°C, but if the fan fails, the board can overheat. I’ve fixed countless “overheating” errors by replacing a faulty fan (use a 24V DC fan with the same airflow rating).If the board’s “FAULT” LED illuminates, check the feedback signals—the most common cause is a faulty voltage sensor (use a multimeter to test the sensor’s output). I’ve seen cases where a dirty sensor caused the board to enter a fault state; cleaning the sensor fixed the problem.GE 151X1225EK01PC03
Real-World Applications
-
Power Generation:A coal-fired power plant uses the 151X1225EK01PC03 to charge the batteries that power the plant’s control systems. The board’s fault protection ensures that the control systems remain operational even during power fluctuations.
-
Industrial Manufacturing:A steel mill uses the 151X1225EK01PC03 to power its industrial robots. The board’s precise control ensures that the robots operate at the correct speed, improving product quality and reducing waste.
-
Oil & Gas:An offshore oil platform uses the 151X1225EK01PC03 to power its critical process systems. The board’s wide operating temperature range (-40°C to +85°C) withstands the harsh offshore environment, ensuring reliable operation.
High-Frequency Troubleshooting FAQ
Q: What does the “FAULT” LED indicate on the GE 151X1225EK01PC03?
A: The red “FAULT” LED indicates a critical error, such as:
-
Overcurrent: The output current exceeds the set limit (check the load for shorts);
-
Overheating: The board’s temperature exceeds 85°C (check the cooling fan);
-
Voltage Irregularity: The input voltage is outside the 230V AC range (use a multimeter to test the input).
Q: Can the 151X1225EK01PC03 be used with non-GE power converters?
A: No, the 151X1225EK01PC03 is designed exclusively for GE 151X Series and ACB AAA power converters. Non-GE converters may not provide the correct input voltage or communication signals, leading to board failure.
Q: How do I configure the output voltage on the 151X1225EK01PC03?
A: Use the microcontroller’s programming interface (e.g., via a laptop and software) to set the output voltage. Refer to the board’s datasheet for the exact programming steps (you may need to adjust the voltage-divider resistors or error amplifier settings).
Q: Why is the 151X1225EK01PC03’s output voltage unstable?
A: Check three things first:
-
Input Voltage: Ensure the input voltage is stable (use a multimeter to test);
-
Feedback Signals: Verify that the voltage sensor is clean and functioning correctly;
-
Load: Ensure the load is not drawing more current than the board’s rated capacity (2A).
Commercial Availability & Pricing
Please note: The listed price is not the actual final price. It is for reference only and is subject to appropriate negotiation based on current market conditions, quantity, and availability.
