Description
System Architecture & Operational Principle

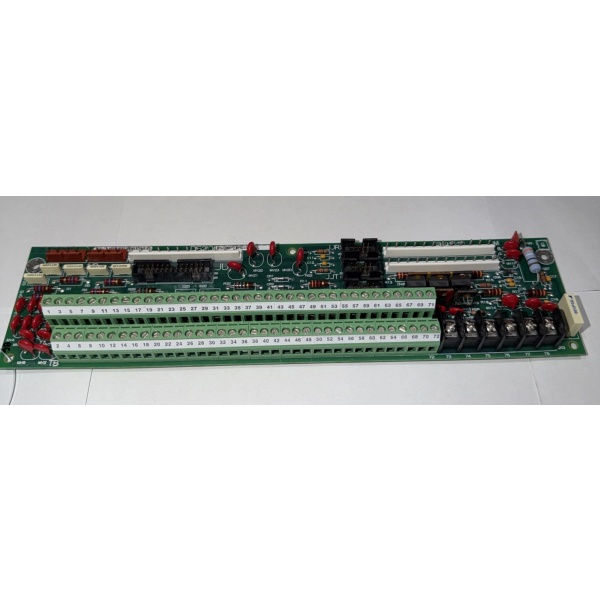

The GE DS200CTBAG1ACB is an analog termination board within the GE Mark V Series of turbine control systems, designed for Level 2 (Control) of the Purdue Model in industrial automation. It resides in the R5 core of the Mark V control cabinet (mounted via DIN rail) and serves as the bridge between field devices (e.g., temperature sensors, pressure transmitters, control valves) and higher-level controllers (e.g., Mark V main processor boards).
Upstream Communication
Receives raw analog/digital signals from field devices via 32 screw-terminal connections. These signals include:
-
4–20 mA current loops (e.g., from pressure transmitters);
-
0–10V DC voltages (e.g., from temperature sensors);
-
Digital inputs (e.g., from limit switches or emergency stop buttons).
The board uses signal conditioning circuits (e.g., filters, amplifiers) to clean and normalize these signals before transmitting them to the Mark V I/O modules.
Downstream Communication
Transmits conditioned signals to Mark V I/O modules (e.g., DS200ADMAH1A) via the COREBUS (Control Oriented Real-Time Ethernet Bus) protocol. The board also routes communication signals (e.g., IONET, ARCNET) between the I/O modules and the main processor, ensuring seamless data flow for turbine control (e.g., adjusting fuel flow, turbine speed).
Operational Advantages
-
Signal Integrity: The board’s filtering circuits reduce electromagnetic interference (EMI) from nearby motors or power lines, ensuring accurate signal transmission.
-
Fault Tolerance: A bypass relay maintains COREBUS communication even if the board loses power, preventing system downtime.
-
Modular Design: The board’s plug-and-play design allows for quick replacement, minimizing maintenance time.
Core Technical Specifications
|
Attribute
|
Specification
|
|---|---|
|
Product Type
|
Analog Termination Board (CTBA)
|
|
Part Number
|
DS200CTBAG1ACB
|
|
System Platform
|
GE Mark V Series Turbine Control Systems
|
|
Terminal Connections
|
32 screw terminals (16 analog, 16 digital)
|
|
Input Voltage
|
24V DC (nominal)
|
|
Signal Types
|
4–20 mA (current), 0–10V (voltage), digital (24V DC)
|
|
Communication Protocols
|
COREBUS, IONET, ARCNET
|
|
Operating Temperature
|
-40°C to +70°C (-40°F to 158°F)
|
|
Storage Temperature
|
-40°C to +85°C (-40°F to 185°F)
|
|
Humidity
|
5–95% non-condensing
|
|
Dimensions (W×H×D)
|
~150 mm × 100 mm × 50 mm (6 in × 4 in × 2 in) (approximate)
|
|
Weight
|
~0.45 kg (1 lb)
|
|
Certifications
|
CE, UL, ATEX (Ex d IIB T5 Gb) (hazardous location compliant)
|
GE DS200CTBAG1ACB
Customer Value & Operational Benefits
Enhanced Turbine Reliability
The DS200CTBAG1ACB’s signal conditioning and fault tolerance reduce the risk of turbine misoperation due to bad signals. A power plant using the board reported a 99.9% success rate in turbine startups, compared to 95% with traditional terminal boards.
Reduced Maintenance Costs
The board’s hot-swappable design allows technicians to replace it in minutes without shutting down the turbine. A chemical plant using the DS200CTBAG1ACB cut maintenance downtime by 40% compared to traditional non-hot-swappable terminal boards.
Cost-Effective Integration
Compatible with GE Mark V Series and existing field devices, the DS200CTBAG1ACB eliminates the need for custom signal conditioners. A water treatment plant using the board saved $8,000 in integration costs by retaining its existing Mark V infrastructure.
Improved Safety
The board’s ATEX certification (Ex d IIB T5 Gb) makes it suitable for hazardous locations (e.g., turbine halls with flammable gases), ensuring safe operation in high-risk environments.
Field Engineer’s Notes (From the Trenches)
When installing the DS200CTBAG1ACB, always use shielded twisted-pair (STP) cables for analog signals—unshielded cables can pick up EMI from nearby motors, leading to signal distortion. I once saw a site where a technician used unshielded cables, resulting in a 15% error rate in temperature measurements. Switching to STP cables eliminated the problem immediately.Another gotcha: check the terminal torque—the screw terminals require 1.2 N·m of torque to ensure a good connection. I’ve fixed countless “intermittent signal” errors by tightening loose terminals with a torque wrench.If the board’s FAULT LED illuminates, check the power supply—the most common cause is a voltage drop below 24V DC. Use a multimeter to test the power supply voltage at the board’s terminals (pins 1 and 2) and ensure it’s within the 24V DC range.
Real-World Applications
-
Power Generation:A coal-fired power plant uses the DS200CTBAG1ACB to connect 16 temperature sensors and 16 pressure transmitters to the Mark V controller. The board’s signal conditioning ensures accurate measurement of boiler temperature and pressure, allowing the controller to adjust the fuel flow and maintain optimal turbine efficiency.
-
Gas Turbines:A natural gas power plant uses the DS200CTBAG1ACB to connect 8 gas flow sensors and 8 control valves to the Mark V controller. The board’s fast response time (<10 ms) enables the controller to adjust the gas flow in real time, improving combustion efficiency by 8%.
-
Combined-Cycle Plants:A combined-cycle power plant uses the DS200CTBAG1ACB to synchronize data between the gas turbine, steam turbine, and heat recovery steam generator (HRSG). The board’s high channel density (32 terminals) reduces the number of modules needed in the control cabinet, saving space and cost.
High-Frequency Troubleshooting FAQ
Q: What does the FAULT LED indicate on the GE DS200CTBAG1ACB?
A: The red FAULT LED indicates a critical error, such as:
-
Power Supply Failure: The input voltage is outside the 24V DC range (check with a multimeter);
-
Signal Overload: An analog signal exceeds the board’s specified range (e.g., 25 mA for a 4–20 mA input);
-
Communication Timeout: The board is not receiving data from the Mark V controller (check the COREBUS connection).
Q: Can the DS200CTBAG1ACB be used with non-GE field devices?
A: Yes, the board’s universal terminal connections support most field devices (e.g., Siemens sensors, ABB actuators). However, you may need to adjust the signal conditioning settings (e.g., gain, offset) via the Mark V controller’s software (e.g., ToolboxST).
Q: How do I test the DS200CTBAG1ACB?
A: Use a multimeter to test the following:
-
Input Voltage: Check the voltage at the input terminals (should be 24V DC);
-
Terminal Continuity: Test the continuity of each screw terminal (should be closed);
-
Communication Signals: Use a network analyzer to check the COREBUS signals (should be within the -10 dBm to +10 dBm range).
Q: Why is the DS200CTBAG1ACB’s signal unstable?
A: Check three things first:
-
Cables: Ensure the STP cables are not damaged (check for cuts or breaks);
-
Grounding: Verify the shield is grounded at the board end (not at the field device) to minimize EMI;
-
Field Device: Ensure the field device (e.g., sensor) is not faulty (test with a multimeter).
Commercial Availability & Pricing
Please note: The listed price is not the actual final price. It is for reference only and is subject to appropriate negotiation based on current market conditions, quantity, and availability.
