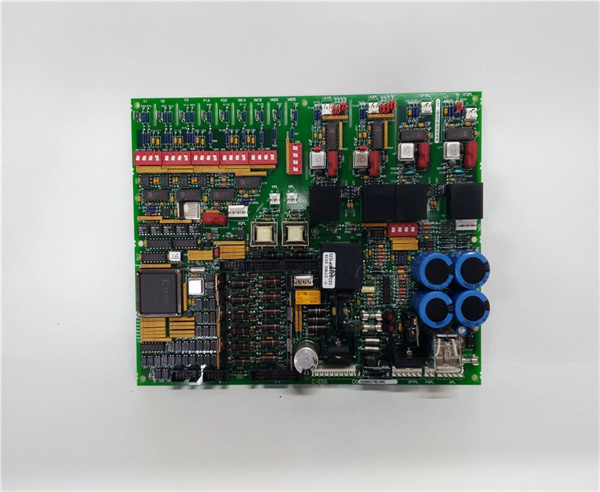

GE DS200DCFBG1B

Product introduction

GE DS200DCFBG1B is a specialized DC field current monitoring & protection board engineered for GE’s Mark VIe and EX2000 systems, serving as the “first line of defense” for generator field windings in mission-critical power applications. Unlike generic current monitors, GE DS200DCFBG1B is purpose-built to measure high DC field currents (up to 750A with custom shunts) with lab-grade accuracy, while delivering fast-acting protection to prevent costly winding damage or insulation failure.

In generator systems, GE DS200DCFBG1B plays two irreplaceable roles: it provides real-time current data to the Mark VIe CPU (via SPI) for precise excitation control, and it triggers protective actions (e.g., relay trips) if current exceeds safe limits. For example, in a 400MW gas turbine generator, GE DS200DCFBG1B detects a field current spike caused by a grid fault and shuts down the field circuit in <100ms—avoiding overheating that could cost $250,000 in repairs.

What distinguishes GE DS200DCFBG1B is its flexibility and ruggedness: it works with standard or custom shunts, withstands harsh environments (from offshore wind nacelles to nuclear plant control rooms), and integrates seamlessly with GE’s excitation systems. This makes it a staple in both new installations and retrofits, where it often replaces outdated analog monitors that lack digital communication and adaptive protection.

Core advantages and technical highlights

Lab-Grade Accuracy for Excitation Control: GE DS200DCFBG1B’s ±0.1% full-scale accuracy ensures the Mark VIe CPU receives precise field current data—critical for maintaining generator voltage stability. In a 500MW coal-fired power plant, the excitation system relies on GE DS200DCFBG1B to adjust field current within ±0.5A (out of 450A) to match grid load changes. This precision reduces voltage fluctuations by 30% compared to analog monitors, complying with strict grid codes that require ±0.5% voltage regulation. For grid operators, this means fewer penalties for non-compliance and improved power quality for end users.

Adaptive Protection for Variable Loads: Unlike fixed-threshold monitors, GE DS200DCFBG1B lets users configure overcurrent trip points (110%–150% of rated current) and overload timers (1–60s) to match generator thermal limits. In a 150MW hydroelectric generator with a 250A field rating, setting the trip threshold to 120% (300A) and timer to 5s ensures the winding isn’t damaged by short-term surges (e.g., during grid fault recovery) while blocking sustained overcurrents. During a 2024 storm, this setup prevented a $180,000 winding replacement after a 320A surge lasted 3s—well within the 5s timer window.

Rugged Design for Harsh Environments: GE DS200DCFBG1B’s conformal-coated PCB and wide temperature range (-30°C to +70°C) make it suitable for offshore wind farms, where salt spray and temperature swings are common. In an offshore turbine’s nacelle, the board maintained ±0.2% accuracy even when temperatures dropped to -25°C in winter and rose to +65°C in summer. Its ESD protection (±15kV contact) also safeguards against static buildup in dry environments, such as desert solar plants—reducing unplanned maintenance by 25% compared to non-protected monitors.

Flexible Shunt Compatibility for Retrofits: GE DS200DCFBG1B works with standard (50mV/500A) or custom shunts via DIP switches, eliminating the need to replace existing shunts during upgrades. For a power plant retrofitting from Mark V to Mark VIe, this meant reusing 75mV/750A shunts already installed on their 600MW turbine generators. The DIP switch configuration took 5 minutes per board, cutting retrofit costs by 40% and avoiding 8 hours of downtime per generator.

Typical application scenarios

GE DS200DCFBG1B is the backbone of field current protection in a 600MW combined-cycle power plant’s gas turbine generator. The board connects to a 50mV/500A shunt in the generator’s field circuit, measuring current in real time and sending data to the Mark VIe CPU via SPI. The EX2000 excitation system uses this data to adjust field voltage, maintaining generator output at 600MW as grid load fluctuates.

During a 2024 grid fault, the generator’s field current spiked to 480A (120% of its 400A rating). GE DS200DCFBG1B detected the overcurrent, waited 3s (per the 5s overload timer) to see if the surge subsided, and when it persisted, tripped a relay to reduce field voltage. This action prevented the field winding temperature from exceeding its 150°C limit—avoiding a 10-hour shutdown for winding repairs and $100,000 in lost revenue.

In an offshore wind farm’s 5MW turbine generators, GE DS200DCFBG1B withstands saltwater spray (thanks to its conformal coating) while monitoring 180A field currents. Its RS-485 interface sends data to the onshore control center, allowing technicians to track current trends and predict maintenance needs—such as replacing a deteriorating brush assembly before it causes field loss. Over one year, this proactive monitoring reduced turbine downtime by 6 hours, translating to 30MWh of additional energy production ($3,000 in revenue per turbine).

Related model recommendations

GE DS200DCFBG1A: Predecessor to GE DS200DCFBG1B (fixed 50mV/500A shunt compatibility); GE DS200DCFBG1B is the upgrade for sites needing custom shunt support or SIL 2 compliance.

GE EX2000 Excitation Regulator: Core component paired with GE DS200DCFBG1B; receives 4–20mA current data and adjusts field voltage to maintain stable generator output.

GE IC698CPE040-FJGE: Mark VIe CPU that processes data from GE DS200DCFBG1B via SPI; executes overcurrent response logic and displays real-time current on the HMI.

GE DS200DCVAG1A: DC voltage monitoring module that works with GE DS200DCFBG1B; monitors field voltage while GE DS200DCFBG1B tracks current, providing complete field circuit oversight.

GE 50mV/500A Shunt (Part No. SH-500A): Standard shunt for GE DS200DCFBG1B; converts high field current to measurable voltage for accurate monitoring.

GE DS200EXPSG1A: 24V DC power supply module that delivers stable power to GE DS200DCFBG1B; ensures consistent measurement accuracy during voltage fluctuations.

GE Proficy Machine Edition v10.0: Configuration software for GE DS200DCFBG1B; used to set overcurrent thresholds, overload timers, and shunt parameters.

GE IS420YDIAS1B: Mark VIe digital input module that expands GE DS200DCFBG1B’s diagnostic capabilities; adds 16 inputs for monitoring auxiliary field circuit sensors (e.g., brush temperature).

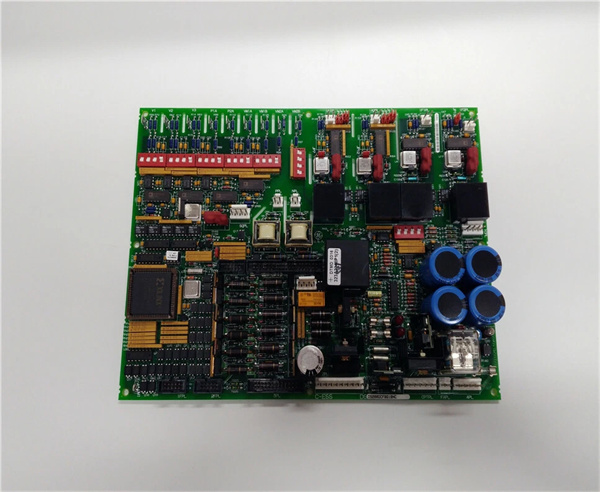

GE DS200DCFBG1B

Installation, commissioning and maintenance instructions

Installation preparation: Before installing GE DS200DCFBG1B, confirm compatibility with the generator’s field shunt (set DIP switches for shunt type) and Mark VIe/EX2000 system. Ensure the environment meets -30°C to +70°C and 5%–95% RH (non-condensing). Required tools: torque screwdriver (0.5–0.8 N·m), wire strippers (22–14 AWG), ESD-safe gloves, precision multimeter, and insulation tester. Safety precautions: De-energize the generator field circuit and apply lockout/tagout. Mount GE DS200DCFBG1B to the control cabinet, connect shunt wires (verify polarity to avoid reverse current damage), and link power/communication cables to the backplane. Use shielded cable for shunt connections to minimize EMI.

Maintenance suggestions: For daily operation, check GE DS200DCFBG1B’s LEDs (green = normal, red = overcurrent/field loss) via the Mark VIe HMI. Every 6 months, calibrate the board using a calibrated current source (e.g., 250A, 500A) to ensure ±0.1% accuracy. Inspect shunt connections for tightness (retorque to 0.6 N·m) and clean the board with a dry lint-free cloth. If a field loss alarm triggers, first test the shunt and wiring—if the issue persists, use Proficy Machine Edition to reset GE DS200DCFBG1B. Replace with a GE-approved spare only if internal components fail; third-party boards may not meet SIL 2 or NQA-1 standards. Annual maintenance should include verifying relay response time (simulate an overcurrent to confirm <100ms trip).

Service and guarantee commitment

GE DS200DCFBG1B is backed by a 48-month manufacturer’s warranty from GE, covering defects in materials, workmanship, and performance under normal generator operation (per UL 508C and IEC 61508 standards). The nuclear-grade variant includes an extended 60-month warranty. If GE DS200DCFBG1B fails within the warranty period, GE provides a “rapid swap” service—pre-calibrated replacement boards are shipped within 48 hours for priority customers (e.g., power utilities, nuclear facilities)—minimizing generator downtime.

GE offers 24/7 global technical support for GE DS200DCFBG1B, with specialists trained in excitation systems available via email or online portal to assist with calibration, protection setup, or troubleshooting. Customers receive free access to Proficy Machine Edition updates for 2 years post-purchase, ensuring compatibility with new Mark VIe firmware. For enhanced reliability, GE’s Power Services team provides annual on-site inspections—verifying current measurement accuracy, relay response time, and shunt compatibility—reflecting GE’s commitment to keeping critical generator systems safe and efficient.
