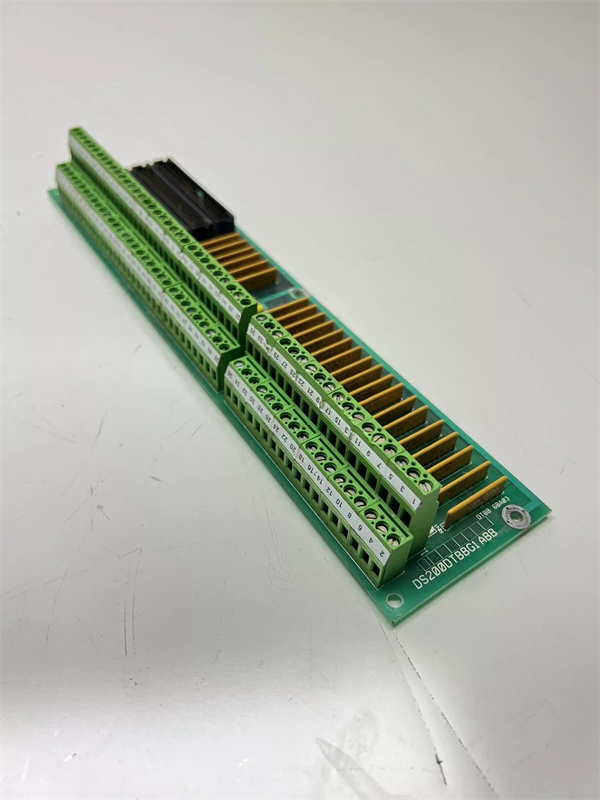

GE DS200DTBBG1A

Product Introduction

The GE DS200DTBBG1A is a rugged, high-density digital input terminal board designed exclusively for GE’s Mark VIe control system—GE’s flagship platform for mission-critical industrial automation. As a core component of the Mark VIe I/O layer, the GE DS200DTBBG1A solves a critical challenge in large-scale control systems: organizing 32 discrete input signals from field devices (e.g., turbine valve limit switches, pump status sensors) into a single, protected interface that connects to core I/O modules like the GE IS420YDIAS1B.

Unlike generic terminal blocks that lack fault protection or system integration, the GE DS200DTBBG1A combines signal distribution with built-in safeguards—shielding expensive I/O modules from damage caused by wiring errors (e.g., accidental 120V AC cross-wiring) or field sensor faults (e.g., short circuits). In automation systems, it acts as a “signal filter and translator”: it receives raw signals from field devices, filters out electrical noise, and routes clean, standardized signals to the Mark VIe I/O module. The GE DS200DTBBG1A is particularly valued in power plants (gas/steam turbines) and oil refineries, where unplanned downtime due to I/O module failure can cost $100,000+ per hour.

Core Advantages and Technical Highlights

32-Channel Density with Simplified Wiring and Reduced Cabinet Space: The GE DS200DTBBG1A’s 32 labeled terminal blocks (one per channel) consolidate wiring from 32 field devices into a single 50-pin D-sub connector that links to the GE IS420YDIAS1B I/O module. This eliminates the need for messy, individual wire runs to the I/O module, reducing cabinet wiring time by 50% and cutting rack space usage by 30% compared to 16-channel terminal boards. For example, in a gas turbine control cabinet monitoring 32 valve position switches, the GE DS200DTBBG1A replaces two 16-channel boards, freeing up space for additional components like communication modules or power supplies.

Multi-Layer Fault Protection for I/O Module Preservation: The GE DS200DTBBG1A includes comprehensive protection to safeguard downstream Mark VIe I/O modules. Its over-voltage protection clamps signals above 40V DC (e.g., from accidental 120V AC cross-wiring) to safe levels, while short-circuit protection latches off faulty channels to prevent current overloads that could damage the GE IS420YDIAS1B. Unlike unprotected terminal blocks, a single wiring mistake (e.g., a shorted sensor wire) will only affect one channel on the GE DS200DTBBG1A—not the entire I/O module. This protection reduces I/O module replacement costs by 70% in high-wiring-density environments.

Channel-Level LEDs for Rapid Troubleshooting: Each of the GE DS200DTBBG1A’s 32 channels features an individual green LED that illuminates when the input is active—providing instant visual confirmation of signal status without specialized tools. For technicians, this means quickly identifying issues like a failed limit switch (LED off when the valve is open) or a shorted wire (amber fault LED + latched channel) in minutes, rather than hours. In conjunction with the Mark VIe CPU, the board also transmits fault location data to Proficy Machine Edition, allowing remote monitoring of channel health—critical for hard-to-access cabinets in offshore platforms or turbine enclosures.

Typical Application Scenarios

In a 500MW coal-fired power plant’s boiler control system, the GE DS200DTBBG1A serves as the primary interface for 32 safety-critical input signals: 12 boiler water level limit switches, 8 fuel valve position sensors, 6 combustion air damper interlocks, and 6 emergency stop pushbuttons. Each device connects to a labeled terminal on the GE DS200DTBBG1A, which filters out electrical noise from the plant’s generators and routes clean signals to the GE IS420YDIAS1B I/O module. During a routine startup, a technician accidentally crosses a 120V AC wire with a sensor cable—triggering the GE DS200DTBBG1A’s over-voltage protection. The module latches the affected channel, illuminates the amber fault LED, and alerts the control room—preventing damage to the GE IS420YDIAS1B and avoiding a 4-hour plant shutdown.

In an offshore oil platform’s wellhead control panel, the GE DS200DTBBG1A monitors 32 proximity sensors (tracking wellhead valve open/closed status) in a saltwater-rich, high-humidity environment. Its conformal-coated circuit board resists corrosion, while its ESD protection shields against electrical transients from lightning strikes. The board’s 32 channel LEDs allow technicians to quickly verify valve status during routine inspections, even in low-light conditions. If a sensor short-circuits due to water ingress, the GE DS200DTBBG1A’s short-circuit protection activates, isolating the fault and maintaining operation of the other 31 sensors—ensuring the platform’s emergency shutdown system (ESD) has continuous visibility of critical wellhead data.

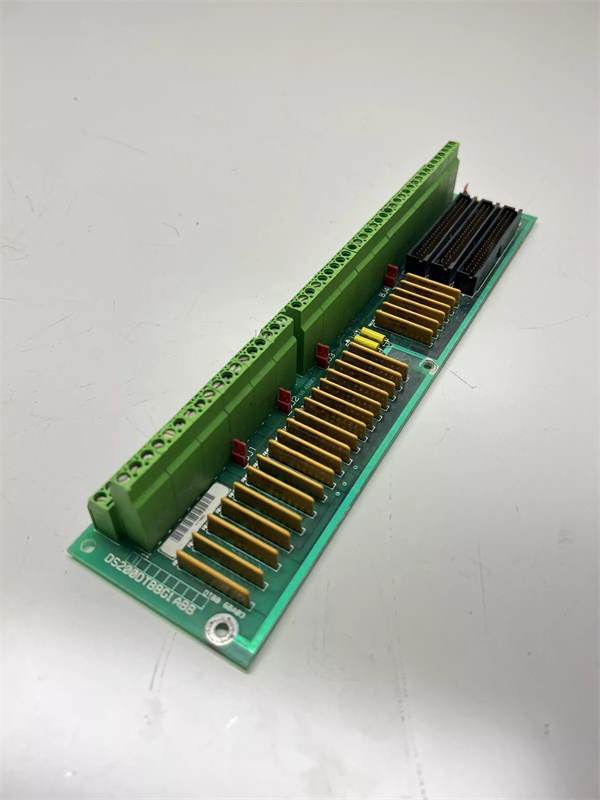

GE DS200DTBBG1A

Related Model Recommendations

GE IS420YDIAS1B: Mark VIe digital input module that receives conditioned signals from the GE DS200DTBBG1A; processes data and transmits it to the GE IC698CPE040-FJGE CPU.

GE DS200EXPSG1A: Power supply expansion module that provides 24V DC to the GE DS200DTBBG1A and connected field sensors; ensures stable signal operation in fluctuating power environments.

GE DS200DTBCG1A: 16-input/16-output dual-function terminal board complementary to the GE DS200DTBBG1A; ideal for systems requiring both input signal organization and output control.

GE IC698CMX016: Mark VIe backplane module that hosts the GE IS420YDIAS1B; works with the GE DS200DTBBG1A to form a complete I/O signal chain.

GE DS200DTBBG1A-EXT: Extended-temperature variant of the GE DS200DTBBG1A (-40°C to 70°C); designed for harsh environments like arctic pipelines or desert solar plants.

GE IC698CPE040-FJGE: Mark VIe industrial CPU that uses data from the GE DS200DTBBG1A (via GE IS420YDIAS1B) to execute control logic for critical systems (e.g., turbine startup, boiler safety).

GE DS200TERMG5: Terminal block accessory kit for the GE DS200DTBBG1A; includes spare screws, wire markers, ESD-safe gloves, and a torque wrench for installation/maintenance.

GE DS200EVIAG1B: Analog input interface module that pairs with the GE DS200DTBBG1A; handles continuous signals (e.g., pressure, temperature) in mixed-signal control systems.

Installation, Commissioning and Maintenance Instructions

Installation Preparation: Before installing the GE DS200DTBBG1A, verify compatibility with the Mark VIe I/O module (e.g., GE IS420YDIAS1B) and ensure the control cabinet ambient temperature is 0°C–60°C. Required tools include a torque screwdriver (0.5–0.8 N·m for terminal blocks), wire strippers (for 22–14 AWG wire), ESD-safe gloves, a multimeter, and alcohol wipes (for cleaning terminals). Safety precautions: Power off the Mark VIe system (lockout/tagout) to avoid electrical shock; connect the board’s ground terminal to the cabinet ground (≥12 AWG wire) to ensure ESD protection; label each field wire (e.g., “VALVE-CH05”) to match the GE DS200DTBBG1A’s channel labels; use shielded twisted-pair cable for field wiring to minimize EMI interference.

Maintenance Suggestions: For daily maintenance, check the GE DS200DTBBG1A’s LEDs—ensure the power LED is red (24V DC present), channel LEDs match expected field device status (green = active), and the fault LED is off. Every 3 months, inspect terminal blocks for loose wiring (retorque to 0.5–0.8 N·m) and clean the board’s surface with a dry lint-free cloth (avoid liquids or compressed air, which can dislodge components). If a channel fault occurs (amber fault LED + latched channel), first disconnect the affected field device, press the manual reset button on the GE DS200DTBBG1A, and test the sensor with a multimeter. Replace the GE DS200DTBBG1A with a GE-approved spare only if multiple channels fail; third-party boards may not meet SIL 2 compliance or NQA-1 standards.

Service and Guarantee Commitment

The GE DS200DTBBG1A comes with a 48-month manufacturer’s warranty from GE, covering defects in materials, workmanship, and fault protection performance under normal industrial use (per IEC 61010-1 and SIL 2 standards). If the GE DS200DTBBG1A fails within the warranty period, GE provides a “rapid swap” service—delivering a pre-tested replacement within 48 hours for priority customers (e.g., power plants, nuclear facilities)—minimizing system downtime.

GE offers 24/7 global technical support for the GE DS200DTBBG1A, including access to Mark VIe specialists via phone/email and remote troubleshooting (via the Mark VIe CPU). Customers receive free access to GE’s Proficy Machine Edition software updates (for system configuration and diagnostic monitoring) for 2 years post-purchase. For enhanced reliability, GE’s Mark VIe Care Program includes annual on-site inspections of the GE DS200DTBBG1A (terminal torque checks, LED verification) and calibration of paired I/O modules—reflecting GE’s confidence in the board’s durability and commitment to keeping critical industrial systems operational.
