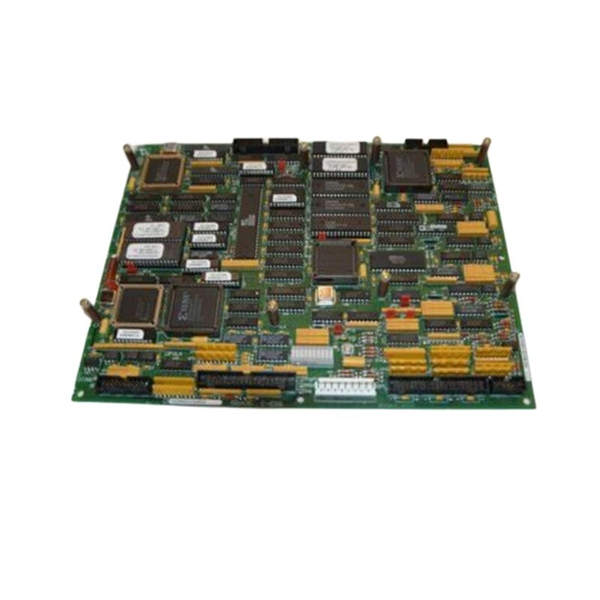

GE DS200ITXDG1A

Product introduction

GE DS200ITXDG1A is a specialized intelligent turbine excitation interface module engineered for seamless integration between GE’s Mark VIe turbine control systems and excitation systems—critical for regulating generator output in power generation applications. As a dedicated communication and signal routing hub, GE DS200ITXDG1A bridges the gap between the turbine’s central control unit and excitation components (such as field regulators, IGBT modules, and voltage sensors), enabling real-time data exchange and precise control over generator field current.

In power generation environments, GE DS200ITXDG1A plays a pivotal role in maintaining grid stability by facilitating rapid adjustments to excitation levels based on turbine load, voltage fluctuations, and grid demands. Unlike generic interface modules, it is purpose-built to handle the unique signal requirements of turbine excitation systems, supporting both legacy (Modbus RTU) and modern (Ethernet/IP) protocols to ensure compatibility with existing infrastructure during upgrades.

GE DS200ITXDG1A also incorporates robust isolation and diagnostic features, making it suitable for high-voltage environments where electrical noise and interference are prevalent. By providing reliable communication and signal conditioning, GE DS200ITXDG1A ensures that excitation systems respond accurately to control commands—directly impacting generator efficiency, power quality, and system safety.

Core advantages and technical highlights

Multi-Protocol Communication Bridge: GE DS200ITXDG1A supports simultaneous operation of GE SRTP (for Mark VIe integration), Modbus TCP/IP, and Modbus RTU—eliminating the need for separate protocol converters. In a power plant upgrading from legacy excitation systems to Mark VIe, this versatility allows the new control system to communicate with existing Modbus RTU sensors while leveraging high-speed Ethernet for real-time control. For example, GE DS200ITXDG1A can transmit generator voltage data via Modbus RTU from a legacy transducer to the Mark VIe CPU via SRTP, all while sending excitation adjustment commands back to the EX2000 regulator—reducing integration costs by 30% compared to rip-and-replace approaches.

Enhanced Signal Isolation for High-Voltage Environments: With 2.5kVrms signal-to-ground isolation and 1kVrms channel-to-channel isolation, GE DS200ITXDG1A protects sensitive Mark VIe components from voltage transients common in excitation systems. In a gas turbine application, where field voltages can exceed 1000V, this isolation prevents electrical noise from corrupting control signals—ensuring excitation adjustments are accurate within ±0.5% of setpoint. This level of protection is critical for avoiding voltage instability that could lead to generator tripping or grid disturbances.

Integrated I/O for Direct Control: GE DS200ITXDG1A includes 8 digital inputs, 8 digital outputs, and 4 analog inputs—eliminating the need for separate I/O modules in small to medium excitation systems. The digital outputs can directly control contactors or solenoids in the excitation circuit, while analog inputs monitor critical parameters like field current and voltage. In a wind turbine generator, for instance, GE DS200ITXDG1A uses its analog inputs to track rotor current, then activates a digital output to trigger a cooling fan via the Mark VIe system when thresholds are exceeded—simplifying system architecture and reducing cabinet space.

Typical application scenarios

GE DS200ITXDG1A is widely deployed in combined-cycle power plants, where it connects Mark VIe turbine controllers to EX2000 excitation systems in 500MW+ gas turbine generators. In this setup, GE DS200ITXDG1A continuously exchanges data between the control system and excitation regulator: transmitting real-time turbine speed and load data (via SRTP) to inform excitation adjustments, while relaying generator terminal voltage and field current readings (via Modbus) back to the Mark VIe CPU.

During a grid fault event, GE DS200ITXDG1A enables the Mark VIe system to increase excitation current within 50ms—stabilizing generator output and preventing a plant shutdown. Its digital outputs activate a field discharge resistor if overvoltage conditions are detected, protecting the generator’s rotor windings from damage. The module’s conformal coating and wide temperature range also ensure reliable operation in the harsh environment of turbine enclosures, where temperatures can reach 65°C during peak operation.

In a hydroelectric power plant, GE DS200ITXDG1A integrates with both the turbine governor and excitation system, coordinating water flow and field current to maintain stable power output despite varying water levels. Its RS-485 port communicates with legacy pressure transducers in the penstock, while Ethernet connects to the Mark VIe system—allowing the plant to modernize control functions without replacing all field equipment.

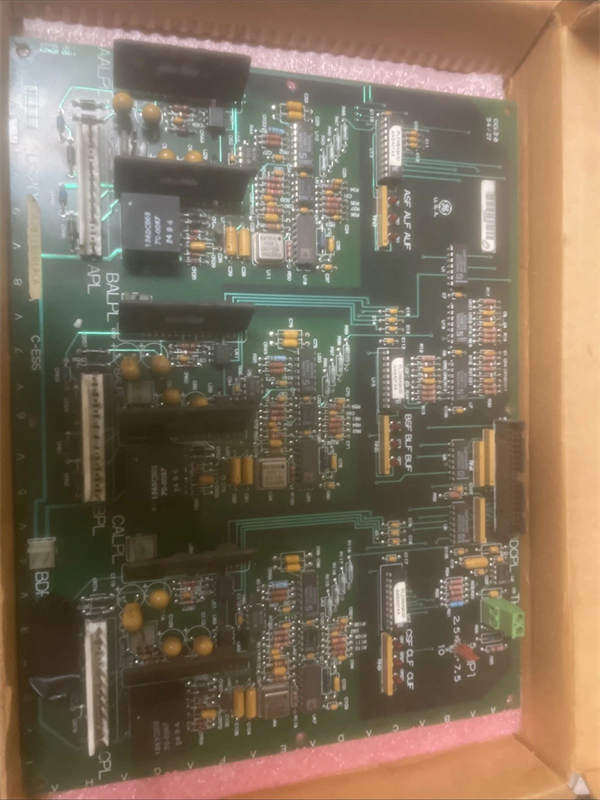

GE DS200ITXDG1A

Related model recommendations

GE EX2000 Excitation Regulator: Core excitation control component that interfaces directly with GE DS200ITXDG1A; regulates generator field current based on commands from the Mark VIe system.

GE IC698CPE040-FJGE: Mark VIe CPU that communicates with GE DS200ITXDG1A via SRTP; processes excitation data to optimize turbine performance and grid stability.

GE DS200IPCSG2A: IGBT snubber card paired with GE DS200ITXDG1A; suppresses voltage spikes in excitation circuits to protect IGBT modules.

GE DS200DSPCH1A: Digital signal processing module that works with GE DS200ITXDG1A; filters noise from analog excitation signals for improved measurement accuracy.

GE 5SDA05H4000: IGBT module controlled via GE DS200ITXDG1A’s digital outputs; switches excitation current in high-power generator systems.

GE DS200FCGDH1B: Fiber optic communication module that extends GE DS200ITXDG1A’s Ethernet connectivity to remote control rooms (up to 10km).

GE DS200TERMG6: Terminal block kit designed for GE DS200ITXDG1A; includes shielded terminals for high-voltage signal wiring.

Installation, commissioning and maintenance instructions

Installation preparation: Before installing GE DS200ITXDG1A, verify compatibility with the Mark VIe backplane and excitation system (EX2000 recommended). Ensure the mounting environment meets specifications: -30°C to +70°C, 5%–95% RH non-condensing. Required tools include a torque screwdriver (0.5 N·m for backplane mounting), wire strippers (22–14 AWG), ESD-safe gloves, and a laptop with Proficy Machine Edition. Safety precautions: Power off all connected systems and apply lockout/tagout. Mount GE DS200ITXDG1A in the Mark VIe chassis, ensuring proper alignment with backplane connectors. Connect Ethernet cables (for Mark VIe communication) and RS-485 wiring (for excitation system) using shielded cables, grounded at both ends to minimize EMI.

Maintenance suggestions: For daily operation, monitor GE DS200ITXDG1A via the Mark VIe HMI to check for communication faults or input/output errors. Every 6 months, inspect all connections for tightness (retorque terminal blocks to 0.6 N·m) and clean Ethernet ports with compressed air (≤30 psi). Test digital outputs by activating them manually via Proficy Machine Edition and verifying contactor response. If communication issues occur, check cable continuity and protocol settings before replacing components. Annual maintenance should include verifying isolation integrity using a megohmmeter (≥100MΩ at 500V DC). Replace GE DS200ITXDG1A with a GE-approved spare only if isolation tests fail or communication ports become unresponsive.

Service and guarantee commitment

GE DS200ITXDG1A is backed by a 48-month manufacturer’s warranty from General Electric, covering defects in materials, workmanship, and performance under normal industrial use (per IEC 61010-1 and SIL 2 standards). If GE DS200ITXDG1A fails within the warranty period, GE provides a “rapid swap” service—pre-configured replacement modules are shipped within 48 hours for priority customers (e.g., power utilities, large-scale generation facilities) to minimize downtime.

GE offers 24/7 global technical support for GE DS200ITXDG1A, with specialists available to assist with protocol configuration, troubleshooting, and integration via phone or email. Customers receive free access to Proficy Machine Edition software updates for 2 years post-purchase, ensuring compatibility with the latest Mark VIe firmware. For enhanced reliability, GE’s Power Services team provides annual on-site inspections of GE DS200ITXDG1A—verifying communication latency, isolation ratings, and I/O functionality—reinforcing GE’s commitment to keeping critical power generation systems operational.
