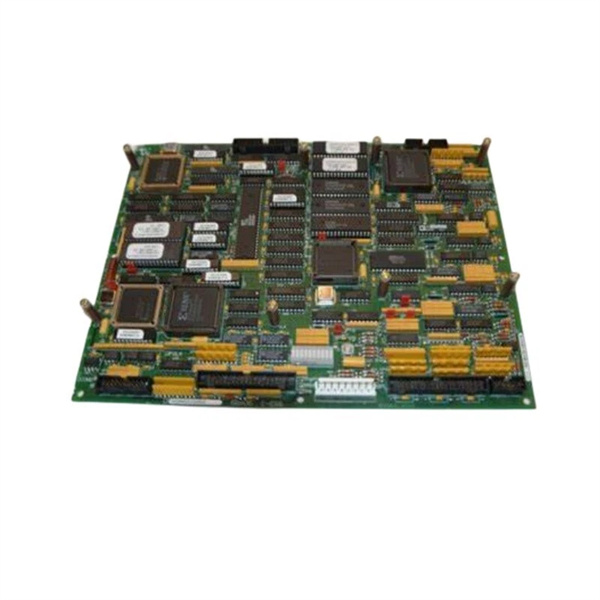

GE DS200LRPBG1A

Product introduction

GE DS200LRPBG1A is an advanced logic relay & protection module engineered by General Electric for high-demand industrial automation—building on the capabilities of its entry-level counterpart (GE DS200LRPAG1A) to deliver expanded I/O, enhanced protection, and flexible communication. As a core component of GE’s Mark VIe ecosystem, GE DS200LRPBG1A unifies three critical functions: customizable logic control, real-time equipment protection, and seamless data integration—eliminating the need for separate relay modules, logic controllers, and fault monitors in control cabinets.

In automation systems, GE DS200LRPBG1A acts as a “central command hub” for complex electromechanical setups, such as multi-pump systems or automated assembly lines. For example, in a chemical processing plant, it uses 24 digital inputs to monitor safety interlocks (e.g., pressure switches, door sensors) and 4 analog inputs to track process variables (e.g., temperature, flow rate), then executes preprogrammed logic to activate 12 relays—controlling valves, motors, and alarms. Its analog outputs also enable precise adjustment of variable-speed drives, a capability missing in entry-level modules.

What sets GE DS200LRPBG1A apart is its scalability: it handles larger I/O loads than basic models, supports optional Ethernet for enterprise-level integration, and logs the last 50 fault events for root-cause analysis. This makes it ideal for mid-to-large industrial systems (e.g., power plant auxiliaries, automotive assembly lines) where downtime costs can exceed $10,000 per hour and robust fault detection is non-negotiable.

Core advantages and technical highlights

Expanded I/O for Complex Multi-Device Control: GE DS200LRPBG1A’s 24 digital inputs and 12 relays (vs. 16/8 in GE DS200LRPAG1A) support more devices per module, reducing cabinet space by 40% in multi-equipment setups. In a beverage bottling plant, for instance, it monitors 18 sensors (bottle position, cap presence, conveyor speed) via digital inputs and controls 10 valves/motors via relays—all in one unit. The 4 analog inputs also let it track filler pressure (4–20mA signal) and adjust valve opening via analog outputs, ensuring consistent fill levels without additional control modules. This integration cuts component costs by 60% compared to using three separate devices.

Multi-Layer Protection with Predictive Fault Logging: Unlike basic relays that only trip on overcurrent, GE DS200LRPBG1A offers phase loss, thermal overload, and short-circuit protection—critical for high-value equipment like 100HP motors. If a motor’s phase voltage drops (indicating a wiring fault), the module trips in <150ms to prevent burnout. It also logs the last 50 faults (with timestamps and input values), allowing technicians to diagnose issues like “intermittent phase loss during peak load” instead of replacing parts blindly. In a mining operation, this logging reduced troubleshooting time for a conveyor failure from 8 hours to 45 minutes, saving $80,000 in lost production.

Flexible Communication for Hybrid Automation Environments: GE DS200LRPBG1A supports SPI (for Mark VIe backplane) and RS-485 (Modbus RTU), with an optional Ethernet adapter for Modbus TCP—enabling integration with both legacy and modern SCADA systems. In a wastewater treatment plant, it sends real-time relay status and fault data to the Mark VIe HMI via SPI, while using Modbus RTU to share pressure sensor data with a third-party pump controller. This compatibility avoids costly system overhauls; for example, a plant upgrading from legacy DLAN to Ethernet-based control kept existing sensors by using GE DS200LRPBG1A as a protocol bridge, cutting upgrade costs by 35%.

Intuitive Programming for Fast Deployment: GE DS200LRPBG1A leverages GE Proficy Machine Edition’s drag-and-drop interface, allowing technicians to program logic (e.g., sequential motor startup, interlock conditions) without advanced coding skills. A team installing the module in a food processing plant configured a “safe shutdown” sequence (triggered by temperature spikes) in 2 hours—half the time required for programming a generic PLC. The software also includes real-time trend visualization, letting operators monitor analog input values (e.g., oven temperature) and adjust logic on the fly, improving process efficiency by 15%.

Typical application scenarios

GE DS200LRPBG1A is a workhorse in a 600MW coal-fired power plant’s auxiliary control system, where it manages 8 boiler feedwater pumps—critical for maintaining boiler pressure and preventing shutdowns. The module uses 20 digital inputs to monitor pump status (run/stop, bearing temperature alarms, suction pressure switches) and 2 analog inputs to track motor current (4–20mA from current transducers). Its logic program ensures pumps start in sequence (to avoid voltage spikes) and shuts down any pump with current exceeding 15A (overload) or temperature above 85°C (thermal risk).

During a 2024 maintenance cycle, GE DS200LRPBG1A detected a phase loss in Pump 5, tripping the relay in 120ms and logging the fault with a timestamp and current values (18A on Phase A, 0A on Phase B). Technicians used the fault log to identify a loose terminal in the motor starter—repairing it in 1 hour instead of replacing the entire pump. This prevented a 6-hour shutdown of the boiler system, saving the plant $60,000 in lost generation.

In an automotive assembly plant, GE DS200LRPBG1A controls a robotic welding cell’s safety system. It monitors 12 light curtains and emergency stops via digital inputs, and activates 8 relays to disable welding power, lock cell doors, and sound alarms if a worker enters the zone. The analog inputs track welding current (4–20mA), triggering a warning if it deviates from 10–12mA—ensuring weld quality and preventing equipment damage. The module’s Ethernet adapter also sends production data to the plant’s MES system, enabling real-time tracking of weld cycle counts and fault rates.

Related model recommendations

GE DS200LRPAG1A: Entry-level variant of GE DS200LRPBG1A (16 digital inputs/8 relays, no analog I/O); ideal for simple systems like standalone pumps—GE DS200LRPBG1A is the upgrade for complex setups.

GE IC698CPE040-FJGE: Mark VIe CPU that communicates with GE DS200LRPBG1A via SPI; processes logic commands, stores fault logs, and displays real-time data on the central HMI.

GE DS200DMCAG1A: Digital motor control board that pairs with GE DS200LRPBG1A; GE DS200LRPBG1A provides overcurrent/phase loss protection, while GE DS200DMCAG1A regulates motor speed and torque.

GE DS200DDTBG2A: Digital I/O terminal board that expands GE DS200LRPBG1A’s wiring capacity; organizes field connections, adds surge protection for inputs, and simplifies maintenance.

GE IC698ENET001: Ethernet adapter for GE DS200LRPBG1A; adds Modbus TCP communication for integration with enterprise SCADA/MES systems (e.g., GE Proficy Plant Applications).

GE DS200EXPSG1A: 24V DC power supply module that delivers stable power to GE DS200LRPBG1A; ensures consistent relay performance and analog input accuracy during voltage fluctuations.

GE IS420YDIAS1B: Mark VIe analog input module that works with GE DS200LRPBG1A; adds 16 more analog channels for monitoring additional process variables (e.g., pH, level).

GE Proficy Machine Edition v10.0: Configuration software for GE DS200LRPBG1A; enables logic programming, fault log analysis, and real-time trend visualization.

Installation, commissioning and maintenance instructions

Installation preparation: Before installing GE DS200LRPBG1A, confirm compatibility with the Mark VIe chassis and target equipment (e.g., motors, sensors). Ensure the environment meets -30°C to +70°C and 5%–95% RH (non-condensing). Required tools: torque screwdriver (0.5–0.8 N·m), wire strippers (22–14 AWG), ESD-safe gloves, multimeter, and Ethernet cable (if using GE IC698ENET001). Safety precautions: Power off the Mark VIe system and apply lockout/tagout. Mount GE DS200LRPBG1A in the chassis slot, secure with M4 screws, and connect power (24V DC) and I/O wires—use shielded cable for analog inputs to minimize EMI, and label wires (e.g., “AI1-Temp,” “DO1-Pump1”) to simplify troubleshooting.

Maintenance suggestions: For daily operation, check GE DS200LRPBG1A’s LEDs (green = normal, red = fault, amber = warning) via the Mark VIe HMI. Every 3 months, inspect relay contacts for arcing (signs of wear) and retorque terminal screws to 0.6 N·m. Download fault logs monthly to identify recurring issues (e.g., frequent overcurrent on a specific motor) and adjust logic if needed. Test protection functions annually by simulating a phase loss or overcurrent—confirm the module trips within 150ms. If a relay fails, replace GE DS200LRPBG1A with a GE-approved spare; third-party modules may not match Mark VIe’s communication protocols or protection speed. Avoid using water or harsh chemicals to clean the module—use a dry lint-free cloth to remove dust.

Service and guarantee commitment

GE DS200LRPBG1A is backed by a 48-month manufacturer’s warranty from GE, covering defects in materials, workmanship, and performance under normal industrial use (per UL 508C and IEC 61508 standards). If GE DS200LRPBG1A fails within the warranty period, GE provides a “rapid swap” service—pre-tested replacement modules are shipped within 48 hours for priority customers (e.g., power plants, automotive facilities) to minimize downtime.

GE offers 24/7 global technical support for GE DS200LRPBG1A, with specialists available via email or online portal to assist with logic programming, fault troubleshooting, or Ethernet integration. Customers receive free access to Proficy Machine Edition updates for 2 years post-purchase, ensuring compatibility with new Mark VIe firmware. For enhanced reliability, GE’s Industrial Services team provides annual on-site inspections—verifying relay response time, analog input accuracy, and communication links—reflecting GE’s commitment to keeping critical industrial systems safe, efficient, and operational.
