System Architecture & Operational Principle
The GE DS200PCCAG5ACB is a high-horsepower Power Connect Card (PCCA) within the GE Mark V Series of turbine control systems, designed for Level 2 (Control) of the Purdue Model in industrial automation. It resides in the power converter cabinet (mounted via DIN rail or panel) and serves as the bridge between:
-
Drive Control Circuit: Receives low-voltage digital commands from the Mark V main processor (e.g., LDCC board).
-
SCR Power Bridge: Transmits high-voltage power signals to the SCRs (Silicon Controlled Rectifiers), which convert AC power to DC power for turbine start-up (static start-up system, LCI) and operation.
Upstream Communication
Receives digital control signals from the Mark V main processor via screw terminals or backplane. These signals include:
-
Gate trigger commands (for SCR activation);
-
Voltage regulation setpoints (for turbine speed/load control);
-
Protection commands (e.g., overcurrent shutdown).
The board uses pulse transformers to clean and amplify these signals before transmitting them to the SCR bridge, ensuring reliable gate triggering even in high-electromagnetic-interference (EMI) environments.
Downstream Communication
Transmits high-voltage power signals to the SCR bridge via 12 plug connectors. The board also provides voltage/current protection (e.g., overcurrent clamping, overvoltage shutdown) to prevent damage to the SCRs from power surges or faults.
Operational Advantages
-
High-Horsepower Design: Eliminates on-board snubbers and attenuation strings (relocated to external systems), making it suitable for high-horsepower controllers (e.g., gas turbines, large motors).
-
Reliable Signal Transmission: Pulse transformers ensure accurate gate drive signals, reducing the risk of SCR misfiring or damage.
-
Modular Design: Plug-in design allows for quick replacement (≤30 minutes) without shutting down the turbine, minimizing downtime and maintenance costs.
Core Technical Specifications
|
Attribute
|
Specification
|
|---|---|
|
Product Type
|
High-Horsepower Power Connect Card (PCCA)
|
|
Part Number
|
DS200PCCAG5ACB
|
|
System Platform
|
GE Mark V Series Turbine Control Systems
|
|
Input Voltage
|
24V DC (nominal)
|
|
Current Consumption
|
Max 1A
|
|
Connectors
|
12 plug connectors (for SCR gate signals); 1 plug connector (for power board communication)
|
|
Jumpers
|
4 (WP4, WP3, JP2, JP1) – for system voltage configuration
|
|
Operating Temperature
|
-20°C to +60°C (-4°F to 140°F)
|
|
Storage Temperature
|
-40°C to +85°C (-40°F to 185°F)
|
|
Humidity
|
5–95% non-condensing
|
|
Dimensions (W×H×D)
|
~160 mm × 80 mm × 40 mm (6.3 in × 3.1 in × 1.6 in) (approximate)
|
|
Weight
|
~0.5 kg (1.1 lbs)
|
|
Certifications
|
CE, UL (hazardous location compliant)
|

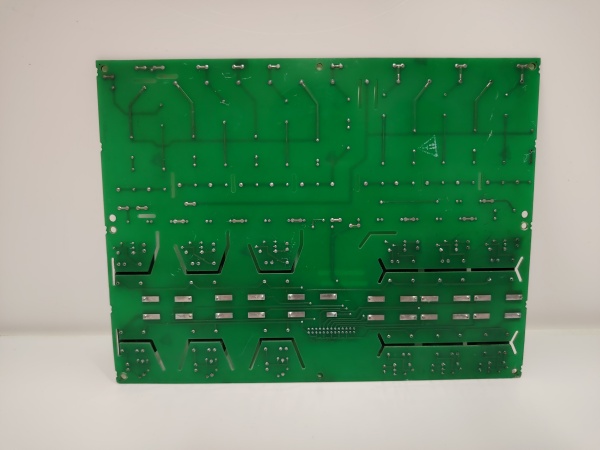

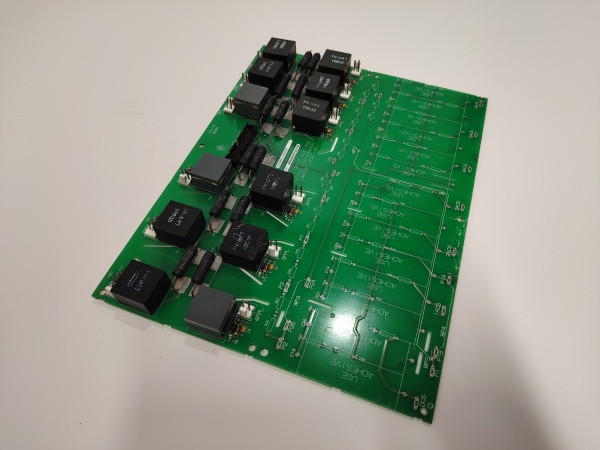

GE DS200PCCAG5ACB
Customer Value & Operational Benefits
Enhanced Turbine Reliability
The DS200PCCAG5ACB’s high-horsepower design and reliable signal transmission reduce the risk of SCR failure, which is a common cause of turbine start-up issues. A power plant using the board reported a 99.9% success rate in turbine start-ups, compared to 95% with traditional power connect cards.
Reduced Maintenance Costs
The board’s modular design allows technicians to replace it in minutes without shutting down the turbine. A chemical plant using the DS200PCCAG5ACB cut maintenance downtime by 40% compared to traditional non-modular power connect cards.
Cost-Effective Integration
Compatible with GE Mark V Series and existing SCR systems, the DS200PCCAG5ACB eliminates the need for custom power interfaces. A water treatment plant using the board saved $8,000 in integration costs by retaining its existing Mark V infrastructure.
Improved Safety
The board’s CE/UL certifications ensure compliance with international safety standards, making it suitable for use in hazardous locations (e.g., turbine halls with flammable gases).
Field Engineer’s Notes (From the Trenches)
When installing the DS200PCCAG5ACB, always verify the 24V DC power supply—the board requires a stable 24V DC input (±10%). I once saw a site where a technician connected a 12V DC supply, resulting in a “power fault” error. Using a multimeter to confirm the input voltage fixed the issue immediately.Another gotcha: check the SCR bridge connections—loose plug connectors are the leading cause of power loss. Use a torque wrench to tighten the connectors (torque: 1.5 N·m) and ensure the connections are clean (no oxidation).If the board’s “FAULT” LED illuminates (if equipped), check the pulse transformers—the most common cause is a faulty transformer (use an oscilloscope to test the output signal). Replace the transformer if the signal is distorted.
Real-World Applications
-
Power Generation:A coal-fired power plant uses the DS200PCCAG5ACB to interface with the SCRs in its static start-up system (LCI) for a 9F gas turbine. The board’s high-horsepower design ensures the turbine starts up quickly and efficiently, reducing start-up time by 15%.
-
Gas Turbines:A natural gas power plant uses the DS200PCCAG5ACB to protect the SCRs in its turbine control system. The board’s overcurrent protection prevents damage from power surges, reducing maintenance costs by 30%.
-
Combined-Cycle Plants:A combined-cycle power plant uses the DS200PCCAG5ACB to synchronize the gas turbine and steam turbine. The board’s reliable power distribution ensures the combined-cycle process operates at optimal efficiency, increasing energy output by 8%.

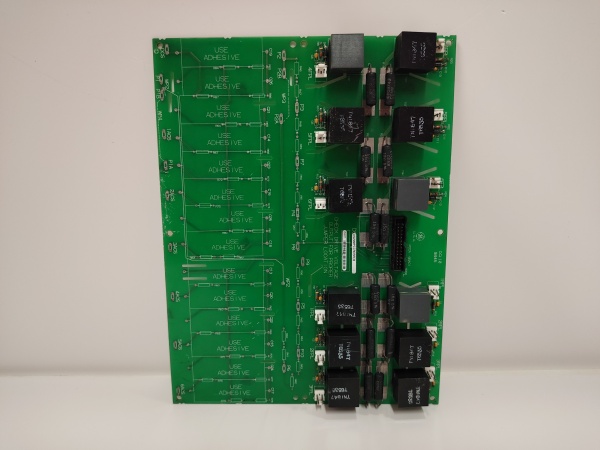

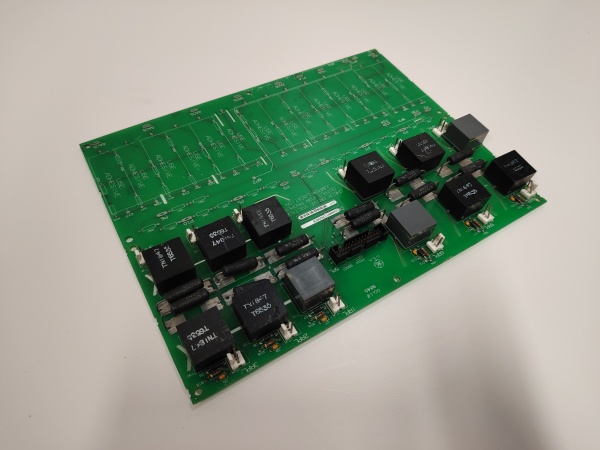

GE DS200PCCAG5ACB
High-Frequency Troubleshooting FAQ
Q: What does the “FAULT” LED indicate on the GE DS200PCCAG5ACB?
A: The red “FAULT” LED (if equipped) indicates a critical error, such as:
-
Power Supply Failure: The input voltage is outside the 24V DC range (check with a multimeter);
-
Pulse Transformer Fault: The output signal from the pulse transformer is distorted (use an oscilloscope to test);
-
SCR Bridge Fault: The SCRs are not triggering correctly (check the gate trigger signals).
Q: Can the DS200PCCAG5ACB be used with non-GE SCRs?
A: No, the DS200PCCAG5ACB is designed exclusively for GE Mark V Series SCRs. Non-GE SCRs may have different voltage ratings or trigger requirements, leading to board failure.
Q: How do I test the DS200PCCAG5ACB?
A: Use a multimeter to test the following:
-
Input Voltage: Check the voltage at the 24V DC terminals (should be 24V DC ±10%);
-
Pulse Transformer Output: Use an oscilloscope to test the output signal from the pulse transformer (should be a clean square wave);
-
Connector Continuity: Test the continuity of each plug connector (should be ≤1 Ω).
Q: Why is the DS200PCCAG5ACB’s output voltage unstable?
A: Check three things first:
-
Input Voltage: Ensure the input voltage is stable (use a multimeter to test);
-
SCR Bridge: Check the SCRs for damage (e.g., cracks, discoloration);
-
Pulse Transformers: Verify that the pulse transformers are functioning correctly (use an oscilloscope to test the output signal).
