GE DS200PTBAG1A Terminal Board Troubleshooting: Common Issues & Fixes

Description

System Architecture & Operational Principle

1. Field Devices: Receives raw signals from critical components like:
   • Speed sensors​ (high/low pressure shafts);
   • Flame detectors​ (combustion monitoring);
   • Generator/bus voltage/current sensors​ (electrical parameter monitoring);
   • Emergency stop buttons​ (safety interlocks).
2. Control Circuits: Transmits conditioned signals to Mark V main processor boards (e.g., TCEB for trip logic, TCTG for generator control) via screw terminals and connectors.

Upstream Communication

Downstream Communication

• TCEB (Trip Control and Emergency Board): For emergency trip logic (e.g., overspeed, flameout);
• TCTG (Turbine Control and Generator Board): For generator control (e.g., voltage regulation, synchronization);
• Operator Interfaces: Via the Mark V’s human-machine interface (HMI) for real-time monitoring.

Operational Advantages

• High-Density Connectivity: 144 signal terminals reduce the number of modules needed in the control cabinet, saving space and cost.
• Signal Integrity: Filtering circuits minimize electromagnetic interference (EMI) from nearby motors or power lines, ensuring accurate signal transmission.
• Fault Tolerance: Hardware jumpers allow customization of protection functions (e.g., enabling/disabling the audio alarm), enhancing system flexibility.

Core Technical Specifications

Attribute​	Specification​
Product Type​	Protection Core Terminal Board (PTBA)
Part Number​	DS200PTBAG1A
System Platform​	GE Mark V Series Turbine Control Systems
Terminal Blocks​	2× 72-pin (144 signal wires total)
Connectors​	3× 10-pin (JJR, JJT, JJS); 6× signal posts
Operating Temperature​	-30°C to +70°C (-22°F to 158°F)
Storage Temperature​	-40°C to +85°C (-40°F to 185°F)
Humidity​	5–95% non-condensing
Dimensions (W×H×D)​	~292 mm × 76 mm × 25 mm (11.5 in × 3 in × 1 in) (approximate)
Weight​	~0.6 kg (1.3 lbs)
Certifications​	UL, CE, CSA (hazardous location compliant)

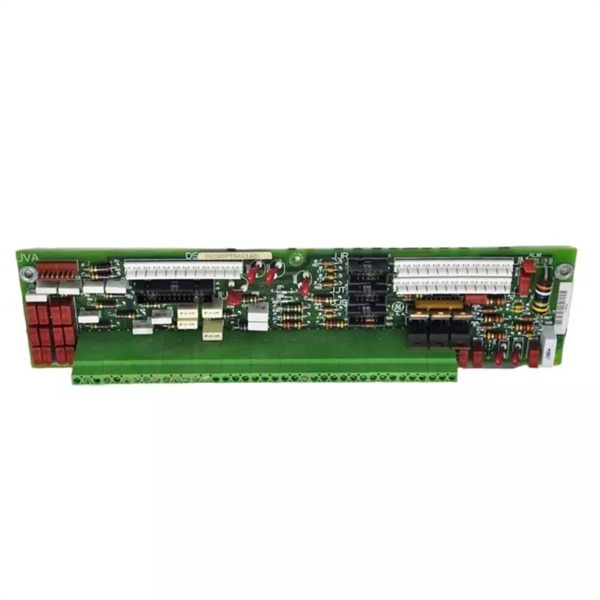

DS200PTBAG1A

Customer Value & Operational Benefits

Field Engineer’s Notes (From the Trenches)

When installing the DS200PTBAG1A, always label the signal wires​ before disconnecting the old board. I once saw a site where a technician forgot to label the wires, resulting in a 4-hour downtime to trace the connections. Using a marker to label each wire with its terminal ID (e.g., TB1-27) saves time and frustration.

Another gotcha: check the hardware jumpers—the board comes with default jumpers for the audio alarm and overspeed protection. If you’re using the board in a non-emergency application, move the jumpers to the “disable” position to avoid unnecessary alarms.

If the board’s “FAULT” LED illuminates, check the terminal connections—the most common cause is a loose wire (use a torque wrench to tighten the terminal screws to 1.2 N·m). I’ve fixed countless “intermittent signal” errors by tightening loose terminals.

Real-World Applications

• Power Generation:
  A coal-fired power plant uses the DS200PTBAG1A to connect 72 speed sensors and 72 flame detectors to the Mark V controller. The board’s signal conditioning ensures accurate measurement of turbine speed and flame intensity, allowing the controller to adjust the fuel flow and maintain optimal efficiency.
• Gas Turbines:
  A natural gas power plant uses the DS200PTBAG1A to connect 36 generator voltage sensors and 36 current sensors to the Mark V controller. The board’s fast response time (<10 ms) enables the controller to shut down the turbine quickly in case of an emergency (e.g., flameout), preventing damage to the turbine blades.
• Combined-Cycle Plants:
  A combined-cycle power plant uses the DS200PTBAG1A to synchronize the gas turbine and steam turbine. The board’s high channel density (144 terminals) reduces the number of modules needed in the control cabinet, saving space and cost.

High-Frequency Troubleshooting FAQ

• Loose Terminal Connection: A wire is not securely connected to the terminal (check with a torque wrench);
• Signal Overload: An input signal exceeds the board’s specified range (use a multimeter to test the signal voltage);
• Power Supply Failure: The input voltage is outside the 24V DC range (check with a multimeter).

1. Terminal Continuity: Check the continuity of each terminal (should be ≤1 Ω);
2. Input Voltage: Verify that the input voltage from field devices is within the specified range (e.g., 24V DC for digital inputs);
3. Output Voltage: Check the voltage at the output terminals (should match the input voltage).

1. Cables: Ensure the cables are not damaged (check for cuts or breaks);
2. Grounding: Verify that the shield is grounded at the board end (not at the field device) to minimize EMI;
3. Field Device: Ensure the field device (e.g., sensor) is not faulty (test with a multimeter).
