GE DS200SDCCG4A Drive Control Card Troubleshooting: Common Issues & Fixes

Description

System Architecture & Operational Principle

1. Field Devices: Receives raw signals from critical components like:
   • Speed sensors​ (turbine shaft rotation monitoring);
   • Torque transducers​ (drive system load measurement);
   • Emissions sensors​ (NOx/SOx monitoring for environmental compliance).
2. Higher-Level Controllers: Transmits conditioned control signals​ to Mark V main processor boards (e.g., TCTG for generator control, TCCB for trip logic) via the C Core backplane.

Upstream Communication

Downstream Communication

• TCTG (Turbine Control and Generator Board): For generator voltage regulation and synchronization;
• TCCB (Trip Control and Emergency Board): For emergency trip logic (e.g., overspeed, overcurrent);
• Operator Interfaces: Via the Mark V’s human-machine interface (HMI) for real-time monitoring of turbine parameters.

Operational Advantages

• Triple Processor Architecture: Enables parallel processing of complex control algorithms, reducing response time and enhancing system reliability.
• Shared RAM Design: Allows all three processors to access the same memory space, facilitating efficient data exchange and coordination.
• Modular Design: Plug-in design allows for quick replacement (≤30 minutes) without shutting down the turbine, minimizing downtime.

Core Technical Specifications

Attribute​	Specification​
Product Type​	Drive Control Card (SDCC)
Part Number​	DS200SDCCG4A
System Platform​	GE Mark V Series Turbine Control Systems
Processors​	3 high-speed microprocessors
Memory​	Shared RAM + 4 EPROM chips (factory/site-specific configurations)
Power Supply​	24V DC (nominal)
Communication Protocols​	Ethernet, Modbus
Operating Temperature​	-40°C to +85°C (-40°F to 185°F)
Storage Temperature​	-40°C to +85°C (-40°F to 185°F)
Humidity​	5–95% non-condensing
Dimensions (W×H×D)​	~9.00 × 4.00 × 15.00 inches (22.86 × 10.16 × 38.10 cm) (approximate)
Weight​	~1 lb (0.45 kg)
Certifications​	UL, CE (hazardous location compliant)

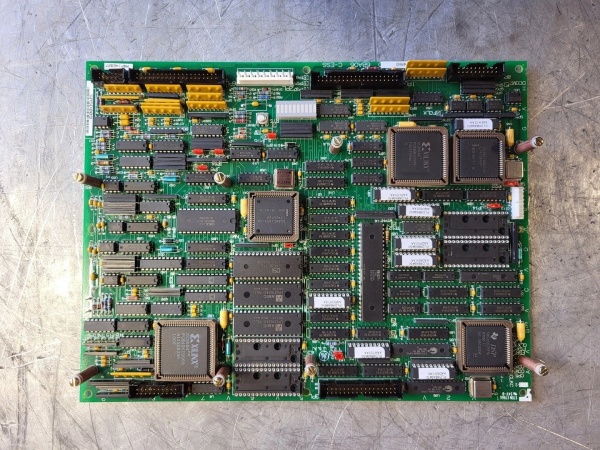

GE DS200SDCCG4A

Customer Value & Operational Benefits

Field Engineer’s Notes (From the Trenches)

When installing the DS200SDCCG4A, always verify the 24V DC power supply—the board requires a stable 24V DC input (±10%). I once saw a site where a technician connected a 12V DC supply, resulting in a “power fault” error. Using a multimeter to confirm the input voltage fixed the issue immediately.

Another gotcha: check the EPROM configuration—the board comes with factory-set EPROM chips. If you’re replacing a board, ensure the new board’s EPROMs are programmed with the same site-specific configurations (e.g., turbine parameters, communication settings). I’ve fixed countless “configuration mismatch” errors by re-programming the EPROMs.

If the board’s “FAULT” LED illuminates​ (if equipped), check the processor status—the most common cause is a faulty processor (use the Mark V controller’s software (e.g., ToolboxST) to diagnose the faulty processor and replace the board if necessary.

Real-World Applications

• Power Generation:
  A coal-fired power plant uses the DS200SDCCG4A to control the drive system of its steam turbine. The board’s triple processor architecture enables real-time speed adjustment, ensuring the turbine operates at optimal efficiency (reducing fuel consumption by 5%).
• Gas Turbines:
  A natural gas power plant uses the DS200SDCCG4A to monitor NOx emissions from its gas turbine. The board’s communication protocols (Ethernet, Modbus) enable real-time data transfer to the plant’s SCADA system, allowing operators to adjust the fuel flow and reduce emissions by 10%.
• Combined-Cycle Plants:
  A combined-cycle power plant uses the DS200SDCCG4A to synchronize the gas turbine and steam turbine. The board’s shared RAM design facilitates efficient data exchange between the two turbines, optimizing the combined-cycle efficiency (increasing energy output by 8%).



  GE DS200SDCCG4A

High-Frequency Troubleshooting FAQ

• Power Supply Failure: The input voltage is outside the 24V DC range (check with a multimeter);
• Processor Fault: One of the three processors has failed (diagnose via ToolboxST);
• EPROM Configuration Mismatch: The board’s EPROMs are not programmed with the correct site-specific configurations (re-program the EPROMs).

1. Input Voltage: Check the voltage at the 24V DC terminals (should be 24V DC ±10%);
2. Processor Status: Use ToolboxST to check the status of each processor (should be “active”);
3. Communication Signals: Use a network analyzer to check the Ethernet/Modbus signals (should be within the -10 dBm to +10 dBm range).

1. Processor Load: Ensure the processors are not overloaded (use ToolboxST to check the CPU usage);
2. Communication Traffic: Reduce traffic on the Ethernet network to prioritize control signals;
3. EPROM Configuration: Ensure the EPROMs are programmed with the correct site-specific configurations (re-program if necessary).
