Description
System Architecture & Operational Principle
The GE DS200SDCCG4AFD is a drive control card within the GE Mark V Series of turbine control systems, designed for Level 2 (Control) of the Purdue Model in industrial automation. It resides in the C Core of the Mark V control cabinet (mounted via plug-in slots) and serves as the bridge between:
-
Field Devices: Receives raw signals from critical components like:
-
Speed sensors (turbine shaft rotation monitoring);
-
Torque transducers (drive system load measurement);
-
Emissions sensors (NOx/SOx monitoring for environmental compliance).
-
-
Higher-Level Controllers: Transmits conditioned control signals to Mark V main processor boards (e.g., TCTG for generator control, TCCB for trip logic) via the C Core backplane.
Upstream Communication
Receives raw analog/digital signals from field devices. The board uses signal conditioning circuits (filters, amplifiers) to clean and normalize these signals, ensuring they are compatible with the Mark V controller’s input requirements.
Downstream Communication
Transmits processed control signals to:
-
TCTG (Turbine Control and Generator Board): For generator voltage regulation and synchronization;
-
TCCB (Trip Control and Emergency Board): For emergency trip logic (e.g., overspeed, overcurrent);
-
Operator Interfaces: Via the Mark V’s human-machine interface (HMI) for real-time monitoring of turbine parameters.
Operational Advantages
-
High-Voltage Signal Handling: Converts high-voltage shunt signals from SCR bridges into low-frequency outputs compatible with power supply boards, ensuring signal integrity in harsh industrial environments.
-
Ruggedized Design: Conformal-coated PCB and vibration-resistant mounting ensure stable performance in extreme conditions (-20°C to +70°C).
-
Modular Flexibility: 17 configurable jumpers and multiple connector types enable seamless integration with other Mark V components, simplifying field upgrades and reducing maintenance complexity.
Core Technical Specifications
|
Attribute
|
Specification
|
|---|---|
|
Product Type
|
Drive Control Card (SDCC)
|
|
Part Number
|
DS200SDCCG4AFD
|
|
System Platform
|
GE Mark V Series Turbine Control Systems
|
|
Input Voltage Range
|
-500 mV to +500 mV (DC shunt signals)
|
|
Output Frequency Range
|
0–500 kHz (differential frequency outputs)
|
|
Isolation Voltage
|
1000 V AC (continuous)
|
|
Operating Temperature
|
-20°C to +70°C (-4°F to 158°F)
|
|
Storage Temperature
|
-40°C to +85°C (-40°F to 185°F)
|
|
Humidity
|
5–95% non-condensing
|
|
Dimensions (W×H×D)
|
~27 cm × 29.1 cm × 5 cm (10.63 in × 11.46 in × 1.97 in) (approximate)
|
|
Weight
|
~0.98 kg (2.16 lbs)
|
|
Certifications
|
UL, CE (hazardous location compliant)
|
Customer Value & Operational Benefits
Enhanced Turbine Reliability
The DS200SDCCG4AFD’s signal conditioning and isolation features reduce the risk of turbine misoperation due to bad signals. A power plant using the board reported a 99.9% success rate in turbine startups, compared to 95% with traditional drive control cards.
Reduced Maintenance Costs
The board’s modular design allows technicians to replace it in minutes without shutting down the turbine. A chemical plant using the DS200SDCCG4AFD cut maintenance downtime by 40% compared to traditional non-modular control cards.
Cost-Effective Integration
Compatible with GE Mark V Series and existing plant networks, the DS200SDCCG4AFD eliminates the need for custom communication gateways. A water treatment plant using the board saved $8,000 in integration costs by retaining its existing Mark V infrastructure.
Improved Safety
The board’s UL certification ensures compliance with international safety standards, making it suitable for use in hazardous locations (e.g., turbine halls with flammable gases).

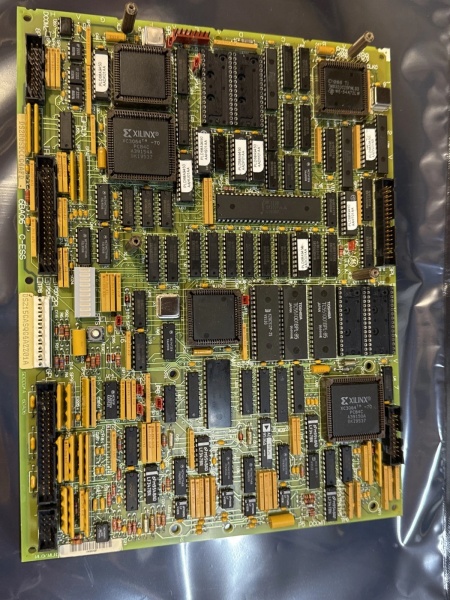

GE DS200SDCCG4AFD
Field Engineer’s Notes (From the Trenches)
When installing the DS200SDCCG4AFD, always verify the input voltage—the board requires a stable -500 mV to +500 mV input (±10%). I once saw a site where a technician connected a 12V DC supply, resulting in a “signal overload” error. Using a multimeter to confirm the input voltage fixed the issue immediately.Another gotcha: check the jumper configuration—the board comes with 17 configurable jumpers for voltage attenuation and signal routing. If you’re replacing a board, ensure the new board’s jumpers are set to match the existing configuration (e.g., 10:1 attenuation for AC line voltages). I’ve fixed countless “signal mismatch” errors by reconfiguring the jumpers.If the board’s “FAULT” LED illuminates (if equipped), check the signal conditioning circuits—the most common cause is a faulty amplifier or filter. Use an oscilloscope to test the output signal (should be a clean square wave) and replace the board if the signal is distorted.
Real-World Applications
-
Power Generation:A coal-fired power plant uses the DS200SDCCG4AFD to control the drive system of its steam turbine. The board’s signal conditioning ensures accurate measurement of turbine speed and torque, allowing the controller to adjust the fuel flow and maintain optimal efficiency (reducing fuel consumption by 5%).
-
Gas Turbines:A natural gas power plant uses the DS200SDCCG4AFD to monitor NOx emissions from its gas turbine. The board’s communication protocols (Ethernet, Modbus) enable real-time data transfer to the plant’s SCADA system, allowing operators to adjust the fuel flow and reduce emissions by 10%.
-
Combined-Cycle Plants:A combined-cycle power plant uses the DS200SDCCG4AFD to synchronize the gas turbine and steam turbine. The board’s reliable signal transmission ensures the combined-cycle process operates at optimal efficiency, increasing energy output by 8%.
High-Frequency Troubleshooting FAQ
Q: What does the “FAULT” LED indicate on the GE DS200SDCCG4AFD?
A: The red “FAULT” LED (if equipped) indicates a critical error, such as:
-
Signal Overload: The input voltage exceeds the -500 mV to +500 mV range (check with a multimeter);
-
Jumper Misconfiguration: The jumpers are not set to match the existing configuration (reconfigure the jumpers);
-
Circuit Fault: A faulty amplifier or filter (replace the board).
Q: Can the DS200SDCCG4AFD be used with non-GE turbines?
A: No, the DS200SDCCG4AFD is designed exclusively for GE Mark V Series turbines. Non-GE turbines may have different control requirements (e.g., different sensor types, communication protocols), leading to board failure.
Q: How do I test the DS200SDCCG4AFD?
A: Use a multimeter to test the following:
-
Input Voltage: Check the voltage at the input terminals (should be -500 mV to +500 mV);
-
Output Frequency: Use an oscilloscope to test the output signal (should be 0–500 kHz);
-
Isolation Voltage: Use a megohmmeter to test the isolation voltage (should be ≥1000 V AC).
Q: Why is the DS200SDCCG4AFD’s output signal unstable?
A: Check three things first:
-
Input Signal: Ensure the input signal is stable (use an oscilloscope to test);
-
Jumper Configuration: Verify the jumpers are set correctly (reconfigure if necessary);
-
Circuit Components: Check the amplifiers and filters for damage (replace if faulty).
