GE DS200SHVIG1AAA High-Voltage Interface Board Troubleshooting: Common Issues & Fixes

Description

System Architecture & Operational Principle

1. SCR Bridges: Receives raw high-voltage DC shunt signals (-500 mV to +500 mV) from the SCR power bridge, which controls the flow of electricity to the turbine.
2. Power Supply & Control Circuits: Transmits conditioned differential frequency signals​ (0–500 kHz) to Mark V power supply boards (e.g., DS200DCFBG1BLC) and control modules (e.g., TCTG for generator control).

Upstream Communication

Downstream Communication

• Power Supply Boards: For regulating the voltage/current supplied to the SCR bridge;
• Control Modules: For adjusting turbine speed, torque, and other critical parameters;
• Operator Interfaces: Via the Mark V’s human-machine interface (HMI) for real-time monitoring of SCR bridge performance.

Operational Advantages

• High-Voltage Signal Integrity: The board’s filtering and amplification circuits ensure accurate signal transmission, even in high-electromagnetic-interference (EMI) environments.
• Electrical Isolation: 1000 V AC isolation voltage protects sensitive control electronics from voltage transients (e.g., lightning strikes, power surges).
• Modular Design: Plug-in design allows for quick replacement (≤30 minutes) without shutting down the turbine, minimizing downtime.

Core Technical Specifications

Attribute​	Specification​
Product Type​	High-Voltage Interface Board (SHVIG)
Part Number​	DS200SHVIG1AAA
System Platform​	GE Mark V Series Turbine Control Systems
Input Voltage Range​	-500 mV to +500 mV (DC shunt signals)
Output Signal Type​	Differential frequency (0–500 kHz)
Isolation Voltage​	1000 V AC (continuous)
Operating Temperature​	-40°C to +70°C (-40°F to 158°F)
Storage Temperature​	-40°C to +85°C (-40°F to 185°F)
Humidity​	5–95% non-condensing
Dimensions (W×H×D)​	~16 cm × 16 cm × 12 cm (6.3 in × 6.3 in × 4.7 in) (approximate)
Weight​	~0.8 kg (1.8 lbs)
Certifications​	CE, UL (hazardous location compliant)

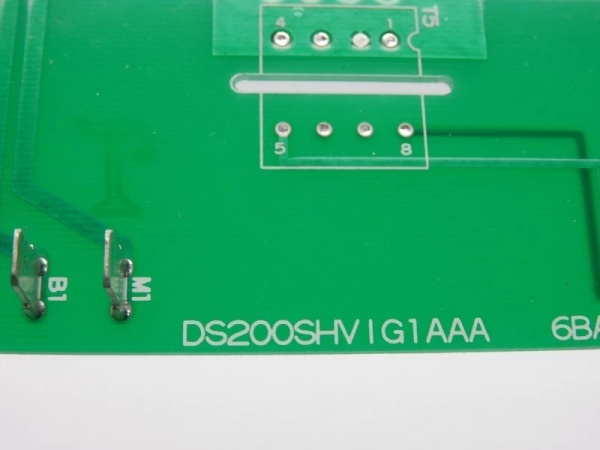

GE DS200SHVIG1AAA

Customer Value & Operational Benefits

Field Engineer’s Notes (From the Trenches)

When installing the DS200SHVIG1AAA, always verify the input voltage range—the board requires a stable -500 mV to +500 mV input (±10%). I once saw a site where a technician connected a 12V DC supply, resulting in a “signal overload” error. Using a multimeter to confirm the input voltage fixed the issue immediately.

Another gotcha: check the jumper configuration—the board comes with 17 configurable jumpers for voltage attenuation and signal routing. If you’re replacing a board, ensure the new board’s jumpers are set to match the existing configuration (e.g., 10:1 attenuation for AC line voltages). I’ve fixed countless “signal mismatch” errors by reconfiguring the jumpers.

If the board’s “FAULT” LED illuminates​ (if equipped), check the signal conditioning circuits—the most common cause is a faulty amplifier or filter. Use an oscilloscope to test the output signal (should be a clean square wave) and replace the board if the signal is distorted.

Real-World Applications

• Power Generation:
  A coal-fired power plant uses the DS200SHVIG1AAA to condition signals from the SCR bridge in its steam turbine system. The board’s signal conditioning ensures accurate measurement of turbine speed and torque, allowing the controller to adjust the fuel flow and maintain optimal efficiency (reducing fuel consumption by 5%).
• Gas Turbines:
  A natural gas power plant uses the DS200SHVIG1AAA to interface with the SCR bridge in its gas turbine system. The board’s 1000 V AC isolation protects the Mark V controller from voltage transients, reducing maintenance costs by 25%.
• Combined-Cycle Plants:
  A combined-cycle power plant uses the DS200SHVIG1AAA to synchronize the gas turbine and steam turbine. The board’s reliable signal transmission ensures the combined-cycle process operates at optimal efficiency, increasing energy output by 8%.

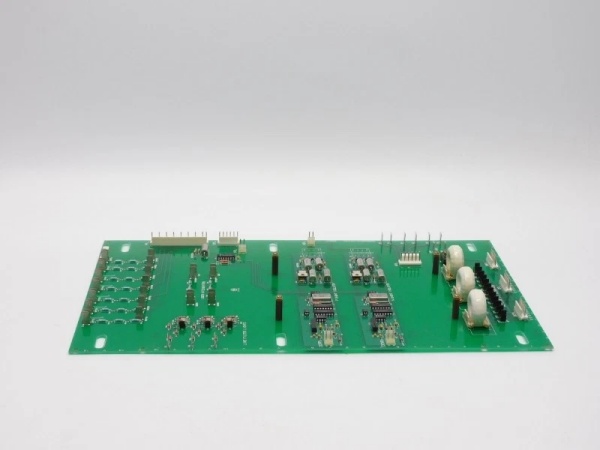

  GE DS200SHVIG1AAA

High-Frequency Troubleshooting FAQ

• Signal Overload: The input voltage exceeds the -500 mV to +500 mV range (check with a multimeter);
• Jumper Misconfiguration: The jumpers are not set to match the existing configuration (reconfigure the jumpers);
• Circuit Fault: A faulty amplifier or filter (replace the board).

1. Input Voltage: Check the voltage at the input terminals (should be -500 mV to +500 mV);
2. Output Frequency: Use an oscilloscope to test the output signal (should be 0–500 kHz);
3. Isolation Voltage: Use a megohmmeter to test the isolation voltage (should be ≥1000 V AC).

1. Input Signal: Ensure the input signal is stable (use an oscilloscope to test);
2. Jumper Configuration: Verify the jumpers are set correctly (reconfigure if necessary);
3. Circuit Components: Check the amplifiers and filters for damage (replace if faulty).
