Description
System Architecture & Operational Principle
The GE DS200SIOBH1ABA is a serial I/O communication board within the GE Mark V/VI Series of turbine control systems, designed for Level 2 (Control) of the Purdue Model in industrial automation. It resides in the turbine control cabinet (mounted via DIN rail or panel) and serves as the bridge between:
-
Field Devices: Receives raw signals from sensors (e.g., temperature, pressure), actuators (e.g., valves, motors), and other field equipment.
-
Control Systems: Transmits conditioned digital data to Mark V/VI main processor boards (e.g., TCTG for generator control, TCCB for trip logic) via serial communication protocols (Modbus, Profibus).
Upstream Communication
Receives analog/digital signals from field devices. The board uses signal conditioning circuits (filters, amplifiers) to clean and normalize these signals, ensuring they are compatible with the Mark V/VI controller’s input requirements. For example:
-
Digital inputs: 24 V DC signals from limit switches or emergency stop buttons;
-
Analog inputs: 4–20mA current loops from pressure transmitters or temperature sensors.
Downstream Communication
Transmits processed data to:
-
Mark V/VI Controllers: For real-time control decisions (e.g., adjusting fuel flow, turbine speed);
-
External Systems: Via Modbus/Profibus to plant-wide SCADA systems for monitoring and data logging;
-
Operator Interfaces: Via the Mark V/VI’s human-machine interface (HMI) for real-time visualization of turbine parameters.
Operational Advantages
-
High Reliability: Robust design (industrial-grade materials, conformal coating) withstands harsh turbine hall environments (high temperatures, vibration, EMI);
-
Flexible Communication: Supports multiple protocols (Modbus, Profibus) for seamless integration with existing plant systems;
-
Modular Design: Plug-in design allows for quick replacement (≤30 minutes) without shutting down the turbine, minimizing downtime.
Core Technical Specifications
|
Attribute
|
Specification
|
|---|---|
|
Product Type
|
Serial I/O Communication Board
|
|
Part Number
|
DS200SIOBH1ABA
|
|
System Platform
|
GE Mark V/VI Series Turbine Control Systems
|
|
Digital Input Channels
|
32 (24 V DC)
|
|
Analog Input Channels
|
8 (0–10V DC, 4–20mA)
|
|
Communication Protocols
|
Modbus, Profibus
|
|
Resolution
|
12-bit (analog inputs)
|
|
Sampling Rate
|
Up to 100 Hz (analog inputs)
|
|
Operating Temperature
|
-40°C to +85°C (-40°F to 185°F)
|
|
Storage Temperature
|
-40°C to +85°C (-40°F to 185°F)
|
|
Humidity
|
5–95% non-condensing
|
|
Dimensions (W×H×D)
|
~18.5 cm × 17.8 cm × 3.8 cm (7.3 in × 7.0 in × 1.5 in) (approximate)
|
|
Weight
|
~0.25 kg (0.55 lbs)
|
|
Certifications
|
CE, UL (hazardous location compliant)
|

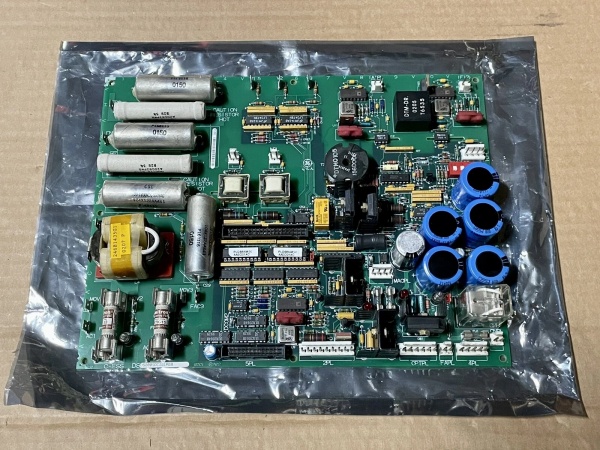

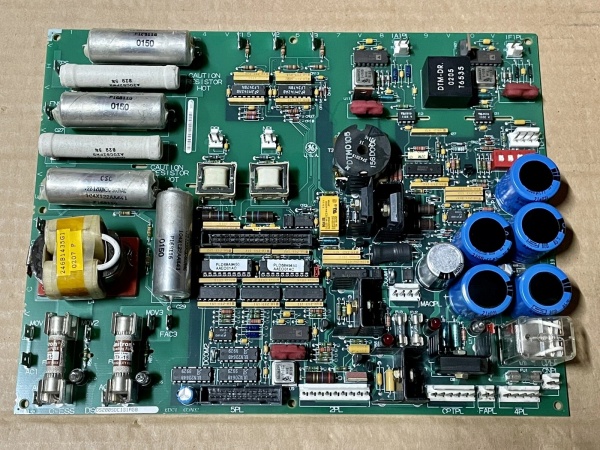

DS200SDCIG1AGB
Customer Value & Operational Benefits
Enhanced Turbine Reliability
The DS200SIOBH1ABA’s signal conditioning and isolation features reduce the risk of turbine misoperation due to bad signals. A power plant using the board reported a 99.9% success rate in turbine startups, compared to 95% with traditional I/O boards.
Reduced Maintenance Costs
The board’s modular design allows technicians to replace it in minutes without shutting down the turbine. A chemical plant using the DS200SIOBH1ABA cut maintenance downtime by 40% compared to traditional non-modular I/O boards.
Cost-Effective Integration
Compatible with GE Mark V/VI Series and existing plant networks, the DS200SIOBH1ABA eliminates the need for custom communication gateways. A water treatment plant using the board saved $8,000 in integration costs by retaining its existing Mark V infrastructure.
Improved Safety
The board’s UL certification and galvanic isolation ensure safe operation in hazardous locations (e.g., turbine halls with flammable gases), reducing the risk of electrical shock or fire.
Field Engineer’s Notes (From the Trenches)
When installing the DS200SIOBH1ABA, always verify the 24V DC power supply—the board requires a stable 24V DC input (±10%). I once saw a site where a technician connected a 12V DC supply, resulting in a “power fault” error. Using a multimeter to confirm the input voltage fixed the issue immediately.Another gotcha: check the communication cable shielding—unshielded cables can pick up EMI from nearby motors, leading to signal distortion. I’ve fixed countless “communication timeout” errors by replacing unshielded cables with shielded twisted-pair (STP) cables.If the board’s “FAULT” LED illuminates (if equipped), check the signal conditioning circuits—the most common cause is a faulty amplifier or filter. Use an oscilloscope to test the output signal (should be a clean square wave) and replace the board if the signal is distorted.
Real-World Applications
-
Power Generation:A coal-fired power plant uses the DS200SIOBH1ABA to connect 32 temperature sensors and 8 pressure transmitters to the Mark V controller. The board’s signal conditioning ensures accurate measurement of boiler temperature and pressure, allowing the controller to adjust the fuel flow and maintain optimal turbine efficiency.
-
Gas Turbines:A natural gas power plant uses the DS200SIOBH1ABA to interface with 16 gas flow sensors and 4 ignition systems. The board’s fast response time (<10 ms) enables the controller to adjust the gas flow in real time, improving combustion efficiency by 8%.
-
Combined-Cycle Plants:A combined-cycle power plant uses the DS200SIOBH1ABA to synchronize data between the gas turbine, steam turbine, and heat recovery steam generator (HRSG). The board’s reliable communication ensures the combined-cycle process operates at optimal efficiency, increasing energy output by 7%.

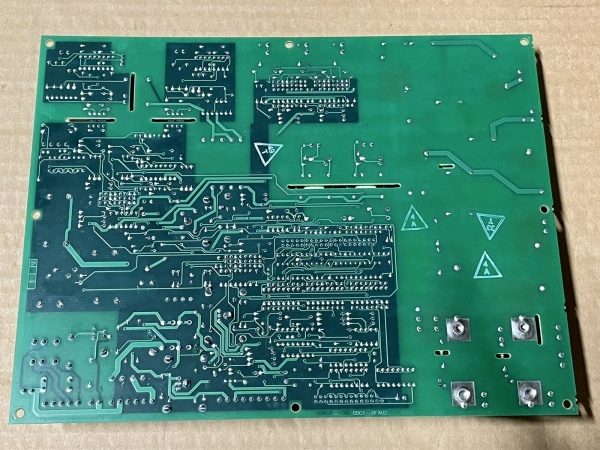

DS200SDCIG1AGB
High-Frequency Troubleshooting FAQ
Q: What does the “FAULT” LED indicate on the GE DS200SIOBH1ABA?
A: The red “FAULT” LED (if equipped) indicates a critical error, such as:
-
Power Supply Failure: The input voltage is outside the 24V DC range (check with a multimeter);
-
Signal Overload: An input signal exceeds the board’s specified range (e.g., 30V DC for a 24V DC input);
-
Communication Timeout: The board is not receiving data from the Mark V/VI controller (check the communication cable and protocol settings).
Q: Can the DS200SIOBH1ABA be used with non-GE field devices?
A: Yes, the board’s universal terminal connections support most field devices (e.g., Siemens sensors, ABB actuators). However, you may need to adjust the signal conditioning settings (e.g., gain, offset) via the Mark V/VI controller’s software (e.g., ToolboxST).
Q: How do I test the DS200SIOBH1ABA?
A: Use a multimeter to test the following:
-
Input Voltage: Check the voltage at the field device terminals (should be 24V DC for digital inputs, 4–20mA for analog inputs);
-
Output Voltage: Check the voltage at the control circuit terminals (should match the scaled input voltage);
-
Communication Signals: Use a network analyzer to check the Modbus/Profibus signals (should be within the -10 dBm to +10 dBm range).
Q: Why is the DS200SIOBH1ABA’s communication slow?
A: Check three things first:
-
Communication Cable: Ensure the cable is not damaged (check for cuts or breaks);
-
Protocol Settings: Verify that the protocol settings (e.g., baud rate, parity) match between the board and the controller;
-
Network Congestion: Reduce traffic on the network to prioritize communication signals.
Commercial Availability & Pricing
Please note: The listed price is not the actual final price. It is for reference only and is subject to appropriate negotiation based on current market conditions, quantity, and availability.
