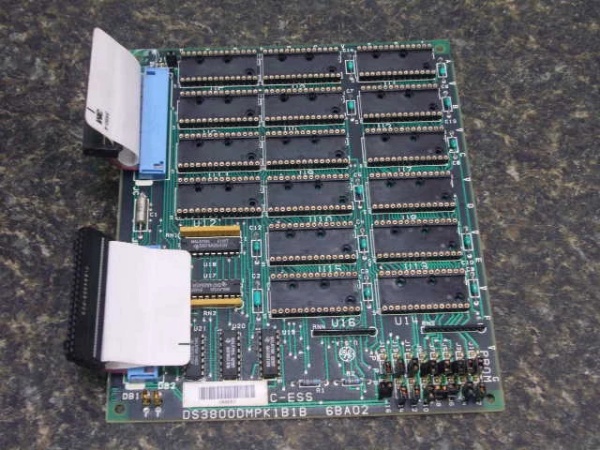

GE DS3800DMPK1B1B | Mark IV Series Static Voltage Regulator Board for Gas/Steam Turbine Control

Description

Key Technical Specifications​

• Model Number: DS3800DMPK1B1B
• Manufacturer: GE (General Electric)
• Function: Static Voltage Regulator (conditions and stabilizes voltage for turbine control)
• Bus Compatibility: VMEbus Rev. C.1 (fits into Mark IV I/O racks)
• Form Factor: 6U Eurocard (160 mm × 233 mm, standard for Mark IV devices)
• Operating Temperature: 0°C to +60°C (industrial-grade)
• Storage Temperature: -20°C to +70°C
• Humidity Tolerance: 5–95% non-condensing
• Weight: ~0.5 kg (1.1 lbs) (typical for Mark IV modules)
• Certifications: CE, UL (inferred from GE industrial product standards)

Field Application & Problem Solved​

• Power Generation: Regulates voltage for gas/steam turbines in power plants, ensuring stable power output and efficient fuel use.
• Manufacturing: Conditions voltage for assembly line robots and conveyor belts, preventing erratic motion caused by voltage dips.
• Petrochemical Industry: Stabilizes voltage for refinery equipment (e.g., pumps, valves), ensuring safe and efficient operation in hazardous environments.

Eliminates voltage-related turbine trips, reducing downtime by up to 20%. Its precision regulation (±0.1% accuracy) ensures the TCU receives clean signals, enabling optimal control of turbine operations. The module’s rugged design and VMEbus compatibility make it a reliable solution for legacy Mark IV systems.

DS3800DMPK1B1B

Installation & Maintenance Pitfalls (Expert Tips)​

• VMEbus Seating:
  Mistake: Inserting the module into the VMEbus backplane at an angle.
  Result: Bent pins or intermittent communication faults.
  Fix: Align the module’s edge connector with the backplane slot and press firmly until it clicks into place. Use a torque wrench to tighten mounting screws to 0.5–1.0 Nm (7–9 in-lbs).
• Voltage Matching:
  Mistake: Connecting the module to a power supply with a voltage outside its operating range (e.g., 48V DC).
  Result: Permanent damage to the module’s voltage regulation circuitry.
  Fix: Verify the power supply voltage (should be 24V DC ±10%) before connecting. Use a multimeter to check the output voltage.
• Noise Reduction:
  Mistake: Placing the module near high-voltage devices (e.g., motors, transformers).
  Result: Electromagnetic interference (EMI) corrupts the regulated voltage signal.
  Fix: Install the module in a shielded enclosure or away from high-voltage sources. Use shielded twisted pair (STP) cables for field device connections and ground the shield at the module end.
• Regular Calibration:
  Mistake: Neglecting to calibrate the module’s voltage reference (via trimmer resistor R1) annually.
  Result: Drifting accuracy (beyond ±0.1%) due to component aging.
  Fix: Use a calibrated voltage source to test the module’s output at 24V DC. Adjust R1 until the output voltage matches the input (±0.1% tolerance).



  DS3800DMPK1B1B

Technical Deep Dive & Overview​

1. Signal Acquisition: The module receives raw voltage signals from field devices (e.g., a rectifier feeding the TCU) via its input terminals.
2. Filtering: Built-in low-pass filters remove high-frequency noise (above 10 kHz) from the input signal.
3. Voltage Regulation: A precision voltage reference (e.g., LM399) and operational amplifier (op-amp) stabilize the filtered signal to the desired output voltage (e.g., 24V DC).
4. Output: The regulated voltage is transmitted to the TCU via the VMEbus (Rev. C.1) interface.

• Voltage Reference: Provides a stable 5V DC reference for accurate regulation.
• Op-Amp: Amplifies and stabilizes the input signal to the desired output voltage.
• Low-Pass Filter: Removes high-frequency noise from the input signal.
• VMEbus Interface: Conforms to VMEbus Rev. C.1 standards, ensuring seamless integration with Mark IV I/O racks.
• Status LEDs: Indicate power (green), regulation (yellow), and faults (red) for quick diagnostics.

• Voltage Reference Drift: Over time, the voltage reference’s accuracy may decrease due to temperature changes or component aging.
• Op-Amp Saturation: Excessive input voltage (e.g., 48V DC) can saturate the op-amp, leading to incorrect output.
• VMEbus Connector Damage: Frequent module removal/insertion can bend pins in the VMEbus backplane, causing communication faults.

• Use a multimeter to check the input/output voltage (should match the configured range).
• Monitor the module’s status LEDs: A blinking yellow LED indicates normal regulation; a solid red LED means a fault (e.g., overvoltage or undervoltage).
• Use an oscilloscope to view the output signal waveform (should be a clean DC signal with no noise).
