GE DS3800DSWA1A1A | Mark IV Series Optional Auxiliary Board for Gas/Steam Turbine Control

Description

Key Technical Specifications​

• Model Number: DS3800DSWA1A1A
• Manufacturer: GE (General Electric)
• Series: Mark IV DS3800

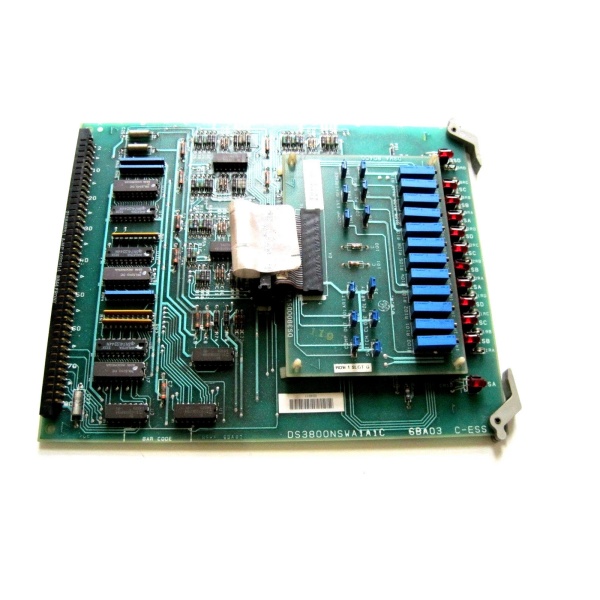

• Function: Optional auxiliary board for the DS3800NSWA1A1C main board (adds configurability via jumpers and potentiometers)
• Compatibility: Designed to work with the DS3800NSWA1A1C main board (connects via a ribbon cable to the “DA” connector)
• Configuration Options: 12 extra jumper switches (for customizing board settings) + 12 rotary potentiometers (for fine-tuning signal processing)
• Form Factor: Matches the DS3800NSWA1A1C main board (6U Eurocard, 160 mm × 233 mm)
• Operating Temperature: -20°C to +70°C (industrial-grade; suitable for turbine halls)
• Power Supply: Derived from the main board (24V DC; no separate power required)
• Weight: ~0.2 kg (0.44 lbs) (typical for Mark IV auxiliary boards)
• Certifications: CE, UL (inferred from GE industrial product standards)

Field Application & Problem Solved​

• Power Generation: Customizes signal conditioning for gas/steam turbine sensors (e.g., pressure transducers, temperature sensors) to ensure accurate readings.
• Manufacturing: Extends the configurability of assembly line control systems to accommodate new robotic arms or conveyor belts.
• Petrochemical Industry: Adds flexibility to refinery equipment (e.g., distillation columns, pumps) by allowing fine-tuning of signal processing parameters.

Enhances the configurability of Mark IV turbine control systems without replacing the main board, reducing costs and downtime. Its seamless integration with the DS3800NSWA1A1C main board makes it a cost-effective solution for adapting legacy systems to new field devices.

DS3800DSWA1A1A

Installation & Maintenance Pitfalls (Expert Tips)​

• Connector Alignment:
  Mistake: Misaligning the ribbon cable connector with the “DA” port on the main board.
  Result: No communication between the auxiliary board and main board, leading to “configuration not recognized” errors.
  Fix: Ensure the ribbon cable connector is aligned with the “DA” port (marked 218A4807P4) on the main board. Press firmly until the connector clicks into place.
• Jumper Settings:
  Mistake: Setting the jumper switches incorrectly (e.g., matching the wrong sensor type).
  Result: The auxiliary board may not condition the signal correctly, leading to inaccurate readings (e.g., incorrect pressure measurements).
  Fix: Refer to the GE Mark IV System Manual (rev. 5.0) for correct jumper settings. Use a multimeter to verify the sensor type before configuring the jumpers.
• Potentiometer Adjustment:
  Mistake: Over-tightening the rotary potentiometers (e.g., using a screwdriver with too much force).
  Result: Damaging the potentiometers, leading to permanent loss of configurability.
  Fix: Use a small flathead screwdriver to adjust the potentiometers gently. Turn the screw clockwise to increase the value and counterclockwise to decrease it.
• Regular Inspection:
  Mistake: Neglecting to inspect the ribbon cable for wear or damage.
  Result: Intermittent communication faults between the auxiliary board and main board.
  Fix: Inspect the ribbon cable every 6 months for cracks or fraying. Replace the cable if any damage is found.

Technical Deep Dive & Overview​

1. Connection: The auxiliary board connects to the main board via a ribbon cable (connected to the “DA” port on the main board).
2. Configuration: Field technicians use the 12 extra jumper switches to customize the board’s settings (e.g., signal type, gain) for specific field devices.
3. Fine-Tuning: The 12 rotary potentiometers allow for precise adjustment of signal processing parameters (e.g., offset, threshold).
4. Integration: The auxiliary board works in conjunction with the main board to condition signals from field devices and transmit them to the turbine control unit (TCU).

• Jumper Switches: 12 switches for customizing board settings (e.g., signal type, gain).
• Rotary Potentiometers: 12 potentiometers for fine-tuning signal processing parameters (e.g., offset, threshold).
• Ribbon Cable Connector: Connects the auxiliary board to the main board (marked “DA” on the main board).
• Status LEDs: Indicate power (green) and configuration (yellow) for quick diagnostics.

• Ribbon Cable Damage: Caused by frequent plugging/unplugging or wear.
• Jumper Corrosion: Moisture in turbine halls can corrode jumper pins, leading to incorrect configuration.
• Potentiometer Wear: Prolonged use can cause the potentiometers to lose their ability to hold a setting.

• Use a multimeter to check the continuity of the ribbon cable (should be 0 ohms).
• Monitor the auxiliary board’s status LEDs: A blinking yellow LED indicates normal configuration; a solid red LED means a fault (e.g., no communication with the main board).
• Use an oscilloscope to view the signal waveform after passing through the auxiliary board (should be clean and free of noise).
