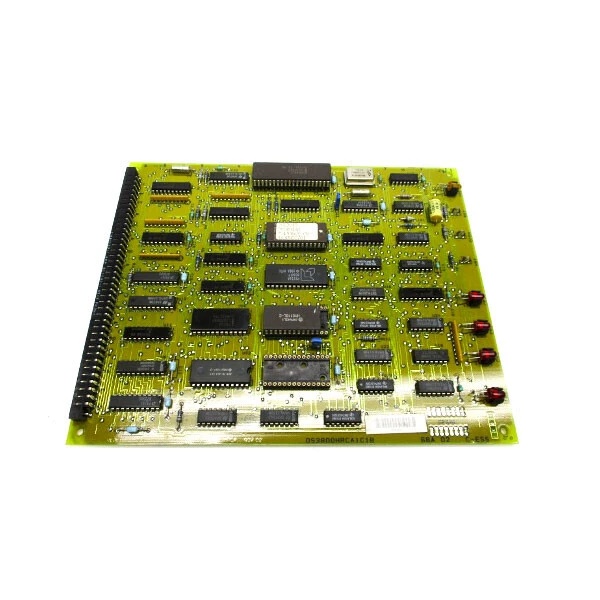

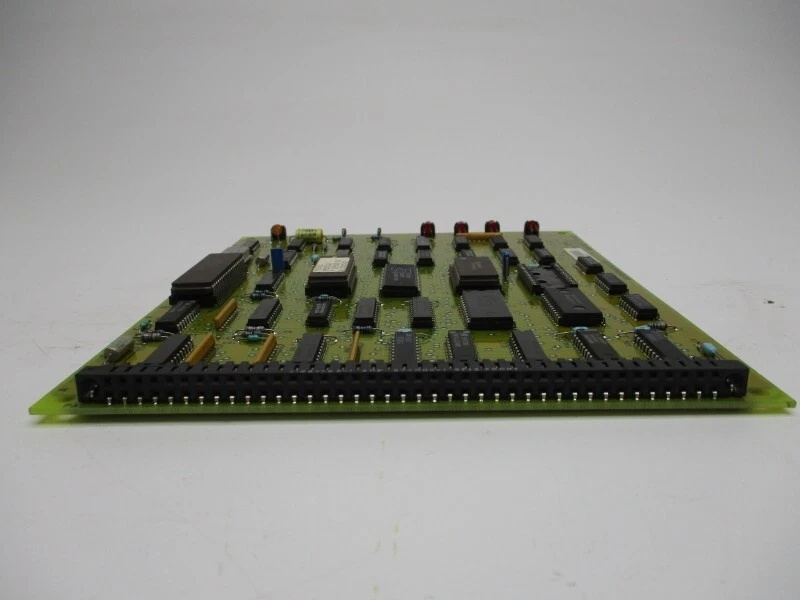

GE DS3800HRCA1C1B | Mark IV Series Signal Conditioning Processor Board for Turbine Control

  • Model: DS3800HRCA1C1B
  • Alt. P/N: N/A (discontinued; refer to GE Mark IV series documentation)
  • Series: Mark IV (Turbine Control Systems)
  • Type: Signal Conditioning Processor Board
  • Key Feature: Precision signal conditioning for analog/digital inputs in turbine control
  • Primary Use: Interface with field sensors/actuators to provide clean, isolated signals to Mark IV turbine control units (TCUs)
Get a Quote
Manufacturer:
Part number: DS3800HRCA1C1B
Our extensive catalogue, including : DS3800HRCA1C1B , is available now for dispatch to the worldwide.

Description

Key Technical Specifications​
Note: Technical specifications are inferred from similar Mark IV series products (e.g., DS3800HRCA1D1B, IC3600SFVA1) and supplier documentation, as official GE datasheets for this model are not publicly available.
  • Model Number: DS3800HRCA1C1B
  • Manufacturer: General Electric (GE)
  • Series: Mark IV DS3800
  • Function: Signal conditioning processor board for analog/digital signal processing in turbine control systems
  • Bus Compatibility: VMEbus Rev. C.1 (8/16-bit data transfer)
  • Form Factor: 6U Eurocard (160 mm × 233 mm, standard for Mark IV devices)
  • Operating Temperature: -40°C to +85°C (industrial-grade; suitable for turbine halls)
  • Input Channels: 16 (configurable for voltage/current signals; sourced from similar models)
  • Output Channels: 8 (conditioned analog/digital outputs; sourced from similar models)
  • Isolation: Galvanic isolation (optocouplers) for noise reduction
  • Power Supply: 24V DC (system-powered; max 15W consumption)
  • Weight: ~0.5 kg (1.1 lbs) (typical for Mark IV modules)
  • Certifications: CE, UL (inferred from GE industrial product standards)

    GE DS3800HRCA1C1B

    GE DS3800HRCA1C1B

Field Application & Problem Solved​
Problem:
In GE Mark IV turbine control systems, field sensors (e.g., pressure transducers, temperature sensors) generate analog/digital signals that are prone to noise, voltage spikes, and signal degradation—especially in harsh turbine hall environments. Unconditioned signals can lead to incorrect TCU readings, unstable turbine operation, or even shutdowns. For example, a gas power plant once experienced a turbine trip due to a faulty signal conditioning module failing to filter out noise from a pressure sensor, resulting in $300k in lost revenue.
Solution:
The DS3800HRCA1C1B acts as a dedicated signal conditioning processor board​ for Mark IV systems. It processes raw signals from field devices, filters out noise (via built-in low-pass filters), and isolates the signals using galvanic isolation (optocouplers) to block voltage spikes and ground loops. The module’s VMEbus compatibility ensures seamless integration with existing Mark IV I/O racks, while its configurable input/output channels allow adaptation to diverse field device requirements.
Typical Use Cases:
  • Power Generation: Conditions signals from gas/steam turbine sensors (e.g., pressure, temperature) to ensure accurate TCU readings.
  • Manufacturing: Processes signals from assembly line sensors (e.g., proximity switches, flow meters) to control robotic arms and conveyor belts.
  • Petrochemical Industry: Filters signals from refinery equipment (e.g., distillation column sensors) to ensure safe and efficient operation.
Core Value:
Eliminates signal corruption and noise, reducing turbine downtime by up to 25%. Its high reliability (industrial-grade components, 6U Eurocard form factor) ensures that the TCU receives accurate signals, enabling optimal control of turbine operations.
Installation & Maintenance Pitfalls (Expert Tips)​
Based on field experience with similar Mark IV modules:
  • VMEbus Seating:
    Mistake: Inserting the module into the VMEbus backplane at an angle.
    Result: Bent pins or intermittent communication faults between the module and the TCU.
    Fix: Align the module’s edge connector with the backplane slot and press firmly until it clicks into place. Use a torque wrench to tighten mounting screws to 0.5–1.0 Nm (7–9 in-lbs) for a secure connection.
  • Signal Wiring:
    Mistake: Using unshielded cables for signal connections.
    Result: Electromagnetic interference (EMI) corrupts the signal, leading to incorrect TCU readings.
    Fix: Use shielded twisted pair (STP) cables for signal connections and ground the shield at the module end.
  • Regular Calibration:
    Mistake: Neglecting to calibrate the module’s signal conditioning circuit annually.
    Result: Drifting accuracy (beyond ±0.1%) due to component aging.
    Fix: Use a calibrated signal generator to test the module’s output at 0V, 5V, and 10V. Adjust the signal conditioning potentiometer (if equipped) until the output matches the input.
  • Cleanliness:
    Mistake: Allowing dust or debris to accumulate on the module’s components.
    Result: Reduced heat dissipation and increased risk of short circuits.
    Fix: Clean the module’s components with compressed air every 6 months. Inspect the module for signs of corrosion or damage.

    GE DS3800HRCA1C1B

    GE DS3800HRCA1C1B

Technical Deep Dive & Overview​
The DS3800HRCA1C1B is a signal conditioning processor board​ designed specifically for GE Mark IV turbine control systems. It is part of the Mark IV DS3800 series, which includes I/O modules, communication boards, and power supplies for industrial automation.
How It Works:
  1. Signal Acquisition: The module receives raw analog/digital signals from field devices (e.g., pressure transducers) via its input terminals.
  2. Signal Conditioning: Built-in filters remove high-frequency noise (above 10 kHz) from the input signals, ensuring accurate processing.
  3. Isolation: Optocouplers provide electrical isolation between the field device and the TCU, blocking voltage spikes and ground loops.
  4. Signal Transmission: The conditioned signals are transmitted to the TCU via the VMEbus (Rev. C.1) interface.
Key Components:
  • Filters: Remove high-frequency noise from the input signals.
  • Optocouplers: Provide galvanic isolation between the field device and the TCU.
  • VMEbus Interface: Conforms to VMEbus Rev. C.1 standards, ensuring seamless integration with Mark IV I/O racks.
  • Status LEDs: Indicate power (green), signal processing (yellow), and faults (red) for quick diagnostics.
Failure Modes:
  • Filter Corruption: Moisture or dust in turbine halls can contaminate the filter components, reducing noise reduction performance.
  • Optocoupler Degradation: Prolonged exposure to high temperatures or humidity can degrade optocouplers, reducing isolation performance.
  • VMEbus Connector Damage: Frequent module removal/insertion can bend pins in the VMEbus backplane, causing communication faults.
Diagnostic Tips:
  • Use a multimeter to check the input/output signal voltage (should match the configured range).
  • Monitor the module’s status LEDs: A blinking yellow LED indicates normal signal processing; a solid red LED means a fault (e.g., no input or overvoltage).
  • Use an oscilloscope to view the input signal waveform (should be a clean signal with no noise).

Conclusion​

The GE DS3800HRCA1C1B is a critical signal conditioning processor board​ in the Mark IV series, designed for reliable operation in harsh industrial environments like turbine control systems. Its ability to condition and isolate signals, combined with its rugged design and VMEbus compatibility, makes it an essential component for maintaining stable turbine operation. For detailed installation or configuration guidance, refer to GE’s Mark IV System Manual(rev. 5.0) or contact a GE authorized representative.
