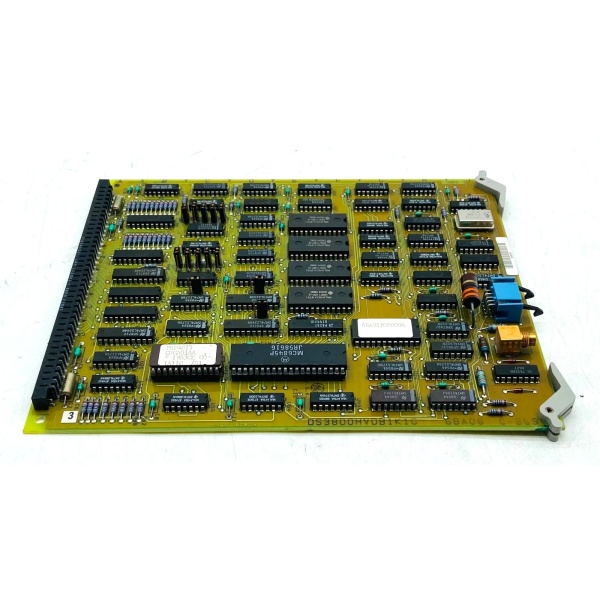

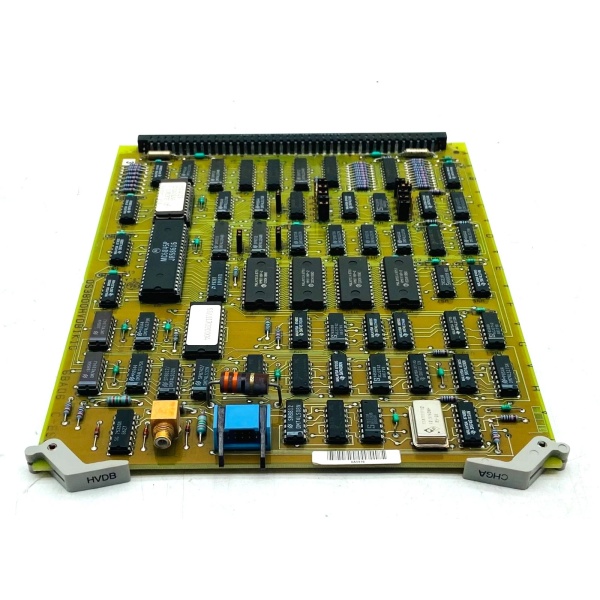

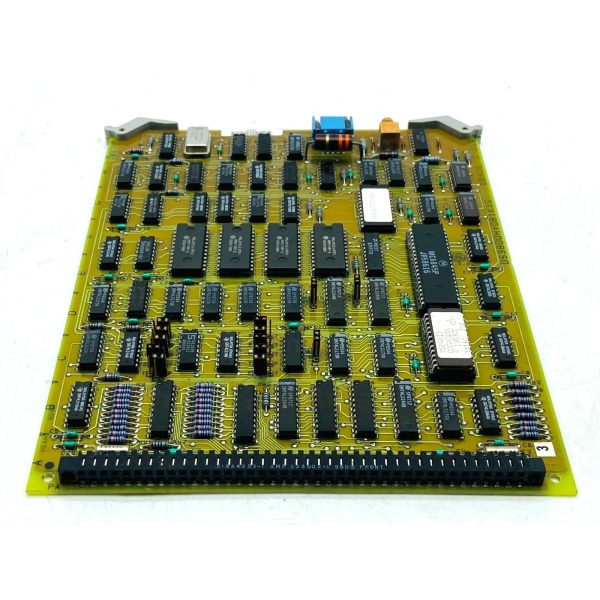

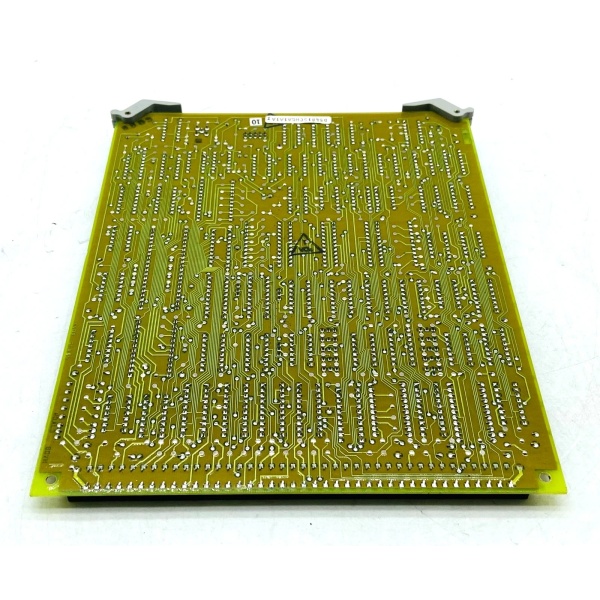

GE DS3800HVDB1K1G | Mark IV Series Video Driver Board for Turbine Control

Description

Key Technical Specifications​

• Model Number: DS3800HVDB1K1G
• Manufacturer: General Electric (GE)
• Function: Video driver board for conditioning and transmitting video signals in turbine control systems
• Bus Compatibility: VMEbus Rev. C.1 (fits into Mark IV I/O racks)
• Form Factor: 6U Eurocard (160 mm × 233 mm, standard for Mark IV devices)
• Operating Temperature: -20°C to +60°C (industrial-grade)
• Power Supply: 12V DC (nominal, consistent with Mark IV series industrial modules)
• Weight: ~0.5 kg (1.1 lbs) (typical for Mark IV modules)
• Certifications: CE, UL (inferred from GE industrial product standards)
• Key Components: EEPROM modules (firmware storage), 15 configurable jumpers, 20-pin modular connector



  DS3800HVDB1K1G

Field Application & Problem Solved​

• Power Generation: Transmits clear video signals from turbine cameras to TCUs for real-time monitoring of blade condition and fuel flow.
• Manufacturing: Processes video signals from assembly line cameras to control robotic arms and conveyor belts.
• Petrochemical Industry: Filters video signals from refinery equipment (e.g., distillation column cameras) to ensure safe and efficient operation.

Installation & Maintenance Pitfalls (Expert Tips)​

• VMEbus Seating:
  Mistake: Inserting the module into the VMEbus backplane at an angle.
  Result: Bent pins or intermittent communication faults between the module and TCU.
  Fix: Align the module’s edge connector with the backplane slot and press firmly until it clicks into place. Use a torque wrench to tighten mounting screws to 0.5–1.0 Nm (7–9 in-lbs) for a secure connection.
• Jumper Configuration:
  Mistake: Not matching jumper settings (15 total) to the field device’s signal type (e.g., NTSC vs. PAL).
  Result: The module may not recognize the video signal, leading to “no input” errors.
  Fix: Refer to the GE Mark IV System Manual (rev. 5.0) for jumper settings. For example, set J5 to “PAL” for European cameras or J7 to “NTSC” for North American devices.
• Shield Grounding:
  Mistake: Grounding the video cable shield at both the field device and the module.
  Result: Creates a ground loop, introducing 50/60 Hz noise into the video signal.
  Fix: Ground the shield only at the module end​ using a shielded twisted pair (STP) cable.
• Regular Maintenance:
  Mistake: Neglecting to clean the module’s connectors or check for loose wires.
  Result: Intermittent signal loss or poor contact, leading to blurry images or system faults.
  Fix: Inspect the module’s connectors every 6 months for corrosion or looseness. Clean the connectors with a contact cleaner (e.g., DeoxIT) if necessary. Tighten any loose wires to the recommended torque.



  DS3800HVDB1K1G

Technical Deep Dive & Overview​

1. Signal Acquisition: The module receives raw video signals from field devices (e.g., cameras) via its 20-pin modular connector.
2. Filtering: Built-in low-pass filters remove high-frequency noise (above 10 kHz) from the video signal, ensuring clear image transmission.
3. Isolation: Optocouplers provide galvanic isolation between the field device and the TCU, blocking voltage spikes and ground loops.
4. Signal Transmission: The conditioned video signal is transmitted to the TCU via the VMEbus Rev. C.1 interface, where it is displayed on a monitor or used for control decisions.

• EEPROM Modules: Store firmware and configuration data for the module, ensuring reliable operation.
• Configurable Jumpers: Allow field technicians to customize the module’s settings (e.g., signal type, gain) for specific field devices.
• 20-Pin Modular Connector: Provides a secure connection to field devices, ensuring reliable signal transmission.
• Status LEDs: Indicate power (green), input signal (yellow), and faults (red) for quick diagnostics.

• Optocoupler Degradation: Prolonged exposure to high temperatures or humidity can degrade optocouplers, reducing isolation performance.
• Jumper Corrosion: Moisture in turbine halls can corrode jumper pins, leading to incorrect configuration.
• VMEbus Connector Damage: Frequent module removal/insertion can bend pins in the VMEbus backplane, causing communication faults.

• Use a multimeter to check the input/output signal voltage (should match the configured range).
• Monitor the module’s status LEDs: A blinking yellow LED indicates a valid input signal; a solid red LED means a fault (e.g., no input or overvoltage).
• Use an oscilloscope to view the video signal waveform (should be a clean composite video signal with no noise).
