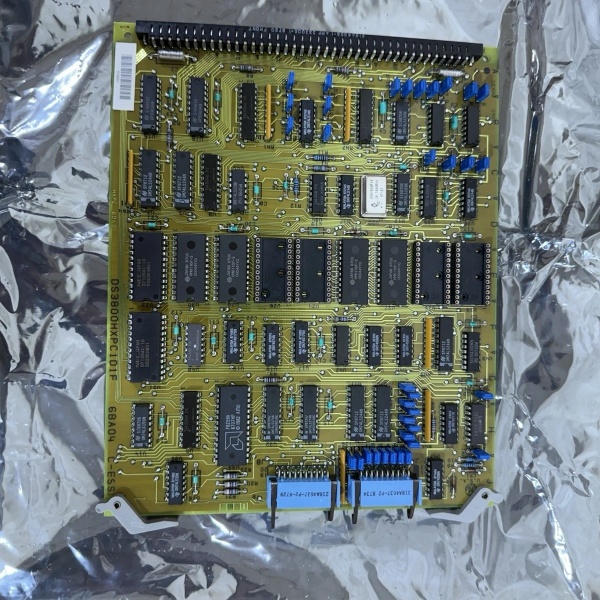

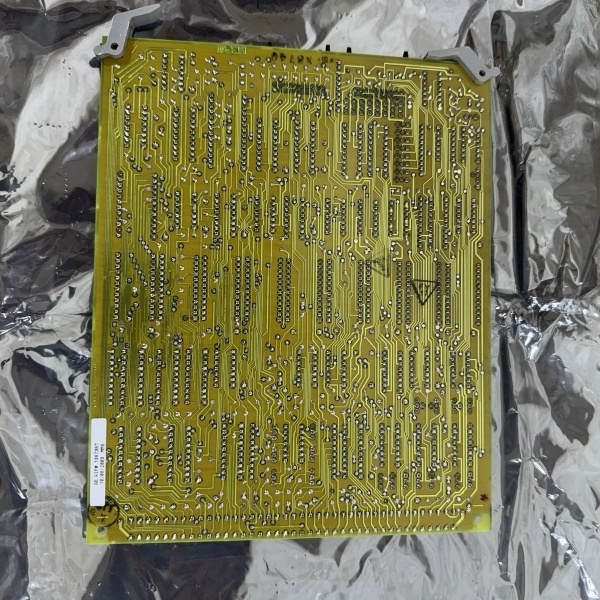

GE DS3800HXPC1D1F | Mark IV Series CPU Expander Board for Gas/Steam Turbine Control

Description

Key Technical Specifications​

• Model Number: DS3800HXPC1D1F
• Manufacturer: GE (General Electric)
• Series: Mark IV DS3800
• Function: CPU Expander Board (increases processing power and I/O capacity for turbine control)
• Bus Compatibility: VMEbus Rev. C.1 (8/16/32-bit data transfer, fits into Mark IV I/O racks)
• Form Factor: 6U Eurocard (160 mm × 233 mm, standard for Mark IV devices)
• Operating Temperature: 0°C to +70°C (industrial-grade, suitable for turbine halls)
• Isolation: Galvanic isolation (optocouplers) for noise reduction (typical for Mark IV modules)
• Weight: ~0.5 kg (1.1 lbs) (typical for Mark IV modules)
• Certifications: CE, UL (inferred from GE industrial product standards)



  GE DS3800HXPC1D1F

Field Application & Problem Solved​

• Power Generation: Expands CPU capacity in gas/steam turbines to handle real-time data from sensors (e.g., pressure, temperature, speed) and actuators (e.g., fuel valves, guide vanes).
• Manufacturing: Enhances CPU processing power in assembly lines to control multiple robotic arms and conveyor belts simultaneously.
• Petrochemical Industry: Increases I/O capacity in refinery equipment (e.g., distillation columns, pumps) to ensure safe and efficient operation.

Installation & Maintenance Pitfalls (Expert Tips)​

• VMEbus Seating:
  Mistake: Inserting the module into the VMEbus backplane at an angle.
  Result: Bent pins or intermittent communication faults between the CPU and expander board.
  Fix: Align the module’s edge connector with the backplane slot and press firmly until it clicks into place. Use a torque wrench to tighten mounting screws to 0.5–1.0 Nm (7–9 in-lbs) for a secure connection.
• I/O Configuration:
  Mistake: Failing to configure the expander board’s I/O channels (e.g., setting digital inputs to analog).
  Result: Signal misinterpretation by the CPU, leading to process instability (e.g., incorrect fuel flow adjustments).
  Fix: Refer to the GE Mark IV System Manual (rev. 5.0) for correct I/O configuration settings. Use a multimeter to verify signal types (digital/analog) before connecting field devices.
• Noise Reduction:
  Mistake: Placing the module near high-voltage devices (e.g., motors, transformers).
  Result: Electromagnetic interference (EMI) corrupts signals between the CPU and expander board, causing false trips or alarms.
  Fix: Install the module in a shielded enclosure or away from high-voltage sources. Use shielded twisted pair (STP) cables for field device connections and ground the shield at the module end.
• Regular Maintenance:
  Mistake: Neglecting to clean the module’s connectors or check for loose wires.
  Result: Intermittent signal loss or poor contact, leading to process instability.
  Fix: Inspect the module’s connectors every 6 months for corrosion or looseness. Clean the connectors with a contact cleaner (e.g., DeoxIT) if necessary. Tighten any loose wires to the recommended torque.



  GE DS3800HXPC1D1F

Technical Deep Dive & Overview​

1. Bus Integration: The module plugs into the VMEbus backplane, connecting to the CPU via the VMEbus Rev. C.1 interface.
2. Capacity Expansion: It adds additional processing power and I/O channels to the CPU, allowing it to handle more field devices and complex control algorithms.
3. Signal Conditioning: Built-in filters and optocouplers condition signals from field devices, reducing noise and protecting the CPU from voltage spikes.
4. Communication: The module transmits processed data between the CPU and field devices, ensuring real-time control of turbine operations.

• VMEbus Interface: Conforms to VMEbus Rev. C.1 standards, ensuring seamless integration with Mark IV I/O racks.
• Processing Unit: An onboard microcontroller enhances the CPU’s processing power for complex control tasks.
• I/O Channels: Configurable (digital/analog inputs/outputs) to adapt to diverse field device requirements.
• Galvanic Isolation: Uses optocouplers to protect sensitive CPU circuits from voltage spikes and noise.

• VMEbus Corruption: Improper backplane seating or loose connections can cause CRC errors.
• I/O Channel Failure: Overloading or incorrect configuration can damage I/O channels, leading to signal loss.
• Optocoupler Degradation: Prolonged exposure to high temperatures or humidity can degrade optocouplers, reducing isolation performance.

• Use a VMEbus analyzer to check for communication errors (e.g., CRC errors, timeout faults).
• Monitor the module’s status LED (if equipped): Blinking = normal operation; Solid = fault.
• Use a multimeter to check for continuity in I/O channels (should be 0 ohms for digital inputs, 4–20 mA for analog inputs).
