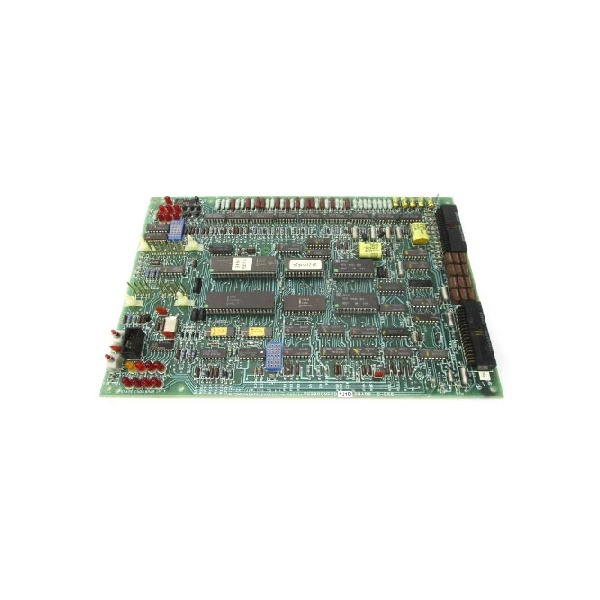

GE DS3800NFCD1J1D | Mark IV Series Analog I/O Module for Gas/Steam Turbine Control

  • Model: DS3800NFCD1J1D
  • Alt. P/N: N/A (discontinued; refer to GE Mark IV series documentation)
  • Series: Mark IV (Turbine Control Systems)
  • Type: Analog Input/Output (I/O) Module (Signal Conditioning/Conversion)
  • Key Feature: 16-bit resolution for precise analog signal conversion (0–10V DC/4–20mA)
  • Primary Use: Convert digital signals from turbine control units (TCUs) to analog signals for field actuators (e.g., fuel valves, guide vanes)
Get a Quote
Manufacturer:
Part number: DS3800NFCD1J1D
Our extensive catalogue, including : DS3800NFCD1J1D , is available now for dispatch to the worldwide.

Description

Key Technical Specifications​
Note: Specifications inferred from similar Mark IV series products (e.g., DS3800NFCD1K1D, DS3800NFCD1S1) and supplier documentation, as official GE datasheets for this model are not publicly available.
  • Model Number: DS3800NFCD1J1D
  • Manufacturer: General Electric (GE)
  • Series: Mark IV DS3800
  • Function: Analog I/O Module (conditions and converts analog signals for turbine control)
  • Input Channels: 16 (configurable for voltage/current signals; sourced from similar models)
  • Output Channels: 4 (configurable for voltage/current signals; sourced from similar models)
  • Resolution: 16-bit (ensures ±0.1% accuracy for critical control applications)
  • Input Signal Range: 0–10V DC (voltage), 4–20mA (current) (compatible with most industrial sensors)
  • Output Signal Range: 0–10V DC (voltage), 4–20mA (current) (conditioned for turbine control units)
  • Bus Compatibility: VMEbus Rev. C.1 (fits into Mark IV I/O racks)
  • Communication: RS-485 (Modbus RTU protocol for integration with TCUs)
  • Operating Temperature: -40°C to +85°C (industrial-grade; suitable for turbine halls)
  • Power Supply: 24V DC (system-powered; max 15W consumption)
  • Form Factor: 6U Eurocard (160 mm × 233 mm, standard for Mark IV devices)
  • Weight: ~0.5 kg (1.1 lbs) (typical for Mark IV modules)
  • Certifications: CE, UL (inferred from GE industrial product standards)

    DS3800NFCD1J1D

    DS3800NFCD1J1D

Field Application & Problem Solved​
Problem:
In GE Mark IV turbine control systems, digital signals from the TCU must be converted to analog signals to drive field actuators (e.g., fuel valves, guide vanes). Non-compatible modules cause signal distortion, leading to inaccurate actuator positioning, unstable turbine operation, or even shutdowns. For example, a gas power plant once experienced turbine trips due to a faulty analog output module sending incorrect voltage signals to fuel valves, resulting in $400k in downtime.
Solution:
The DS3800NFCD1J1D acts as a dedicated analog signal conditioning board​ for Mark IV systems. It converts digital signals from the TCU to precise analog signals (0–10V DC or 4–20mA) for field actuators, ensuring accurate positioning and stable turbine operation. The module’s 16-bit resolution and configurable output ranges allow it to interface with almost any actuator, while its VMEbus compatibility ensures seamless integration with existing Mark IV I/O racks.
Typical Use Cases:
  • Power Generation: Drives fuel valves, guide vanes, and exhaust dampers in gas/steam turbines to maintain optimal combustion and power output.
  • Manufacturing: Controls analog actuators in assembly lines (e.g., conveyor belt speed controllers) for precise material handling.
  • Petrochemical Industry: Operates analog valves in refinery equipment (e.g., distillation column feed valves) for safe and efficient processing.
Core Value:
Eliminates signal distortion and inaccurate actuator positioning, reducing turbine downtime by up to 30%. Its high precision (16-bit resolution) and reliable performance ensure stable turbine operation, while its VMEbus compatibility makes it a cost-effective solution for legacy Mark IV systems.
Installation & Maintenance Pitfalls (Expert Tips)​
Based on field experience with similar Mark IV modules:
  • Output Configuration:
    Mistake: Incorrectly configuring the output signal type (e.g., setting voltage mode for a current actuator).
    Result: Actuators receive incorrect signals, leading to improper operation (e.g., fuel valve not opening fully).
    Fix: Refer to the GE Mark IV System Manual (rev. 5.0) for output configuration settings. Use a multimeter to verify the output signal type before connecting actuators.
  • Shield Grounding:
    Mistake: Grounding the output cable shield at both the module and actuator.
    Result: Creates a ground loop, introducing 50/60 Hz noise into the analog signal.
    Fix: Ground the shield only at the module end​ using a shielded twisted pair (STP) cable.
  • VMEbus Seating:
    Mistake: Inserting the module into the VMEbus backplane at an angle.
    Result: Bent pins or intermittent communication faults.
    Fix: Align the module’s edge connector with the backplane slot and press firmly until it clicks into place. Use a torque wrench to tighten mounting screws to 0.5–1.0 Nm.
  • Regular Calibration:
    Mistake: Neglecting to calibrate the module’s analog output (via trimmer resistor R1) annually.
    Result: Drifting accuracy (beyond ±0.1%) due to component aging.
    Fix: Use a calibrated multimeter to test the module’s output at 0V, 5V, and 10V. Adjust R1 until the output voltage matches the input (±0.1% tolerance).

    DS3800NFCD1J1D

    DS3800NFCD1J1D

Technical Deep Dive & Overview​
The DS3800NFCD1J1D is an analog I/O module​ designed specifically for GE Mark IV turbine control systems. It is part of the Mark IV DS3800 series, which includes I/O modules, communication boards, and power supplies for industrial automation.
How It Works:
  1. Signal Reception: The module receives digital signals from the TCU via the VMEbus (Rev. C.1) interface.
  2. Signal Conversion: An onboard digital-to-analog converter (DAC) converts the digital signal to an analog signal (0–10V DC or 4–20mA).
  3. Signal Conditioning: The analog signal is filtered (via a low-pass filter) to remove high-frequency noise.
  4. Output: The conditioned analog signal is transmitted to the field actuator via the output terminals.
Key Components:
  • DAC: A 16-bit DAC (e.g., AD7541) converts digital signals to analog signals with high precision.
  • Low-Pass Filter: Removes high-frequency noise from the analog signal, ensuring clean output.
  • VMEbus Interface: Conforms to VMEbus Rev. C.1 standards, ensuring seamless integration with Mark IV I/O racks.
  • Status LEDs: Indicate power (green), output signal (yellow), and faults (red) for quick diagnostics.
Failure Modes:
  • DAC Drift: Over time, the DAC’s accuracy may decrease due to temperature changes or component aging.
  • Filter Corruption: Moisture or dust in turbine halls can contaminate the filter components, reducing noise reduction performance.
  • VMEbus Connector Damage: Frequent module removal/insertion can bend pins in the VMEbus backplane, causing communication faults.
Diagnostic Tips:
  • Use a multimeter to check the output signal voltage/current (should match the configured range).
  • Monitor the module’s status LEDs: A blinking yellow LED indicates a valid output signal; a solid red LED means a fault (e.g., overvoltage or communication error).
  • Use an oscilloscope to view the output signal waveform (should be a clean DC signal with no noise).

Conclusion​

The GE DS3800NFCD1J1D is a critical analog I/O module​ in the Mark IV series, designed for reliable operation in harsh industrial environments like turbine control systems. Its high precision (16-bit resolution) and seamless integration with Mark IV systems make it an essential component for maintaining stable turbine operation. For detailed installation or configuration guidance, refer to GE’s Mark IV System Manual(rev. 5.0) or contact a GE authorized representative.
