Description
DS3800NFDB1A1A: Product Overview

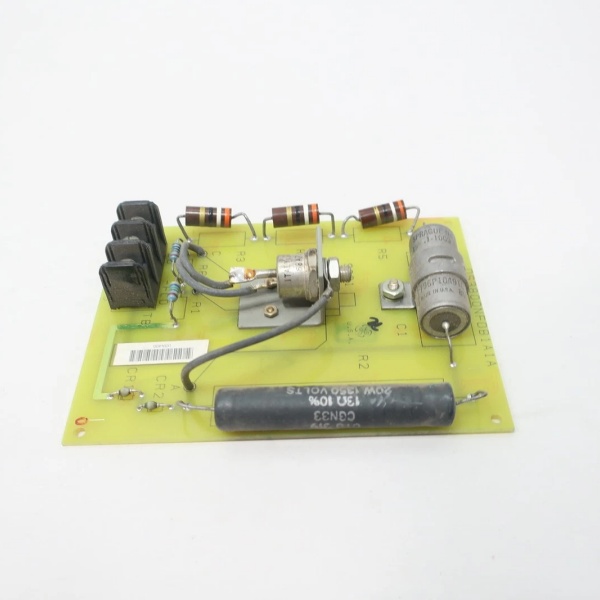

The GE DS3800NFDB1A1A is a control circuit board belonging to the Mark V series, a legacy platform for GE turbine control systems. It is engineered for signal conditioning and isolation in industrial automation systems, particularly in gas and steam turbine control applications. As part of the Mark V ecosystem, it serves as a “protective bridge” between field devices (e.g., turbine blade position sensors, fuel flow meters) and the turbine control unit, ensuring that only clean, accurate signals reach the control system.
Role in Automation Systems:
Positioned as a “signal conditioner” in Mark V architectures, the DS3800NFDB1A1A performs two primary functions:
-
Signal Isolation: Uses galvanic isolation (optocouplers) to separate field devices from the control unit, protecting sensitive electronics from voltage spikes, electromagnetic interference (EMI), and ground loops. This is critical for turbine control, where even minor signal corruption can lead to process instability or equipment damage.
-
Signal Conditioning: Scales and filters raw analog signals from field devices (e.g., converting millivolt thermocouple signals to 4–20 mA current loops) into a format suitable for the turbine control unit. This ensures accurate data for turbine control algorithms (e.g., adjusting fuel flow based on temperature readings).
Core Functionality:
-
VMEbus Compatibility: Conforms to VMEbus Rev. C.1 standards, ensuring seamless integration with existing Mark V I/O racks and controllers. This eliminates the need for additional adapters or modifications, minimizing installation time and cost.
-
Flexible Signal Handling: Supports multiple analog signal types (LVDT, thermocouple, 4–20 mA, ±10 V DC) through configurable input channels, making it adaptable to diverse field devices.
-
Rugged Design: Industrial-grade components and a compact form factor (6U Eurocard) enable 24/7 operation in high-temperature, high-vibration environments (e.g., turbine halls).
-
Legacy Support: Designed to work with existing Mark V components (e.g., I/O modules, terminal boards), reducing the cost of system upgrades. This makes it an ideal choice for power plants with aging Mark V systems, where replacing the entire control architecture is not feasible.
Platform Benefits (Mark V Series):
The DS3800NFDB1A1A inherits the Mark V platform’s strengths, including:
-
Reliability: The Mark V system is the industry standard for gas turbine control, with a proven track record of 24/7 operation in power plants worldwide.
-
Scalability: Supports expansion with additional I/O modules to accommodate growing system demands (e.g., adding more sensors to a turbine control system).
-
Easy Integration: Compatible with GE Fanuc/Emerson PLC/PAC systems, ensuring seamless integration with existing automation architectures.
DS3800NFDB1A1A
Technical Specifications
|
Parameter
|
Specification
|
|---|---|
|
Model Number
|
DS3800NFDB1A1A (Variant of Mark V Series)
|
|
Manufacturer
|
GE (General Electric)
|
|
Product Type
|
Control Circuit Board (Analog/Digital Signal Processing)
|
|
Series
|
Mark V (Turbine Control Systems)
|
|
Bus Compatibility
|
VMEbus Rev. C.1 (fits into Mark V I/O racks)
|
|
Form Factor
|
6U Eurocard (160 mm × 233 mm)
|
|
Isolation Voltage
|
1500 V AC (channel-to-channel)
|
|
Input Signal Types
|
LVDT, thermocouple, 4–20 mA, ±10 V DC (configurable)
|
|
Output Signal Types
|
4–20 mA, ±10 V DC, relay driver (conditioned)
|
|
Operating Temperature
|
0°C to +55°C (industrial-grade)
|
|
Storage Temperature
|
-40°C to +85°C
|
|
Humidity
|
5–95% non-condensing
|
|
Weight
|
~0.5 kg (1.1 lbs)
|
|
Certifications
|
CE, UL (inferred from GE industrial product standards)
|
Core Features & Customer Value
1. Reliable Signal Isolation:
The DS3800NFDB1A1A’s galvanic isolation (1500 V AC) protects sensitive control electronics from voltage spikes and EMI, ensuring reliable signal transmission. This is critical for turbine control, where signal corruption can lead to process instability or equipment damage.
2. Flexible Signal Handling:
Support for multiple analog signal types (LVDT, thermocouple, 4–20 mA, ±10 V DC) allows engineers to adapt the board to diverse field devices, reducing the need for additional signal conditioning hardware. This flexibility saves time and money during installation.
3. Legacy Compatibility:
Designed to work with existing Mark V components, the DS3800NFDB1A1A eliminates the need for costly system upgrades. This makes it an ideal choice for power plants with aging Mark V systems, where replacing the entire control architecture is not feasible.
4. Rugged Industrial Design:
The board’s industrial-grade construction (0°C to +55°C operating temperature, 6U Eurocard form factor) ensures reliable performance in harsh environments (e.g., turbine halls, refineries). This reduces the risk of unplanned downtime and extends the lifespan of the control system.
DS3800NFDB1A1A
Typical Applications
The GE DS3800NFDB1A1A is widely used in industrial automation systems for:
-
Power Generation:
-
Conditions analog signals from gas/steam turbines (e.g., blade position, fuel flow, temperature) for real-time control, ensuring stable power output.
-
-
Manufacturing:
-
Used in assembly lines to process analog signals from sensors (e.g., pressure, flow) and control actuators (e.g., valves, motors).
-
-
Petrochemical Industry:
-
Controls analog signals from refinery equipment (e.g., distillation columns, pumps), ensuring safe and efficient operation in hazardous environments.
-
