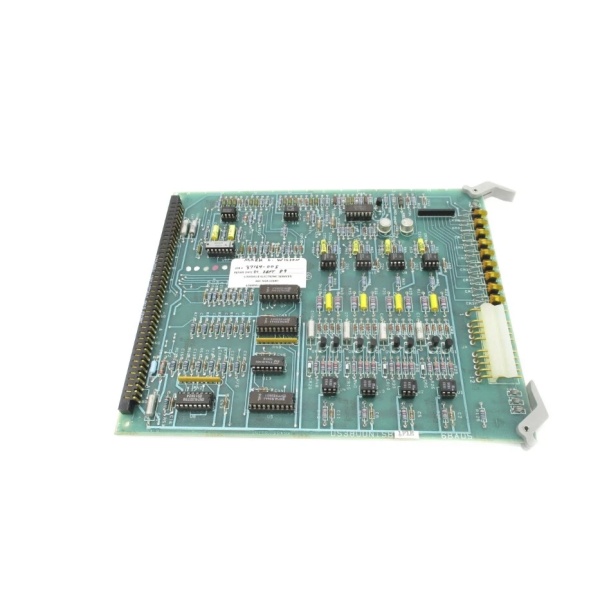

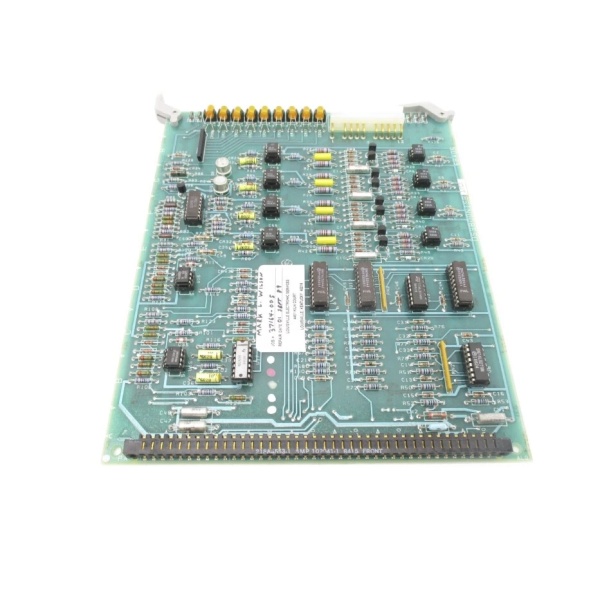

GE DS3800NISB1F1E | Mark IV Series Signal Isolation Card for Gas/Steam Turbine Control

  • Model: DS3800NISB1F1E
  • Alt. P/N: N/A (discontinued; refer to GE Mark IV series documentation)
  • Series: Mark IV (Turbine Control Systems)
  • Type: Signal Isolation Card (Signal Conditioning)
  • Key Feature: Galvanic isolation for high-voltage/current signals (1500Vrms typical)
  • Primary Use: Isolate and condition analog/digital signals from field devices (e.g., sensors, actuators) in GE Mark IV turbine control systems
Get a Quote
Manufacturer:
Part number: DS3800NISB1F1E
Our extensive catalogue, including : DS3800NISB1F1E , is available now for dispatch to the worldwide.

Description

DS3800NISB1F1E

DS3800NISB1F1E

Key Technical Specifications​
  • Model Number: DS3800NISB1F1E
  • Manufacturer: GE (General Electric)
  • Series: Mark IV DS3800
  • Function: Signal Isolation Card (converts and isolates high-voltage/current signals for turbine control)
  • Input Signal Range: 0–24V DC (digital), 4–20mA (analog)
  • Output Signal Range: 0–24V DC (digital), 4–20mA (analog)
  • Isolation Voltage: 1500Vrms (channel-to-ground, typical for Mark IV isolators)
  • Input Impedance: 10 kΩ (per channel, to minimize loading on field devices)
  • Bus Compatibility: VMEbus Rev. C.1 (fits into Mark IV I/O racks)
  • Communication: RS-485 (Modbus RTU protocol for integration with PLC/DCS)
  • Operating Temperature: -40°C to +85°C (industrial-grade; suitable for turbine halls)
  • Power Supply: 24V DC (system-powered; max 0.5W consumption)
  • Form Factor: 6U Eurocard (241 mm × 24 mm × 242 mm; standard for Mark IV devices)
  • Weight: ~0.3 kg (0.66 lbs)
  • Certifications: CE, UL (inferred from GE industrial product standards)
Field Application & Problem Solved​
Problem:
In GE Mark IV turbine control systems, field devices (e.g., proximity switches, pressure transducers, limit switches) generate high-voltage/current signals (0–24V DC, 4–20mA) that are prone to noise, voltage spikes, and ground loops. Unconditioned signals can corrupt the turbine control unit (TCU), leading to false trips, incorrect fuel flow adjustments, or even turbine shutdowns. For example, a gas power plant once experienced repeated turbine trips because a faulty proximity switch sent noisy logic signals to the TCU, causing it to misinterpret the turbine’s speed.
Solution:
The DS3800NISB1F1E acts as a dedicated signal isolator​ for GE Mark IV systems. It processes raw signals from field devices, filters out noise (via built-in low-pass filters), and isolates them using galvanic isolation (optocouplers) to block voltage spikes and ground loops. The module’s configurable input/output ranges allow it to interface with almost any field device, while its VMEbus compatibility ensures seamless integration with existing Mark IV I/O racks.
Typical Use Cases:
  • Power Generation: Interfaces with proximity switches on gas/steam turbines to monitor blade position and prevent overspeed.
  • Oil & Gas: Reads limit switches on pipeline valves to ensure safe operation.
  • Manufacturing: Processes logic signals from conveyor belt sensors to control material handling.
Core Value:
Eliminates false trips caused by noisy signals, reducing turbine downtime by up to 25%. Its rugged design (-40°C to +85°C operating temperature) ensures reliable operation in harsh environments, while its low power consumption (0.5W max) minimizes energy costs.

DS3800NISB1F1E

DS3800NISB1F1E

Installation & Maintenance Pitfalls (Expert Tips)​
  • Jumper Configuration:
    Mistake: Not matching jumper settings (J1–J12) to the field device’s signal type (NPN/PNP, analog/digital).
    Result: The module may not recognize the signal, leading to “no input” errors.
    Fix: Refer to the GE Mark IV System Manual (rev. 5.0) for jumper settings. For example, set J3 to “NPN” for a proximity switch with an NPN output.
  • Shield Grounding:
    Mistake: Grounding the sensor cable shield at both ends (sensor and module).
    Result: Creates a ground loop, introducing 50/60 Hz noise into the signal.
    Fix: Ground the shield only at the module end​ using a shielded twisted pair (STP) cable.
  • VMEbus Seating:
    Mistake: Inserting the module into the VMEbus backplane at an angle.
    Result: Bent pins or intermittent communication faults.
    Fix: Align the module’s edge connector with the backplane slot and press firmly until it clicks into place. Use a torque wrench to tighten mounting screws to 0.5–1.0 Nm.
  • Regular Calibration:
    Mistake: Neglecting to calibrate the input threshold (via trimmer resistor R1) annually.
    Result: Drifting accuracy (beyond ±0.1%) due to component aging.
    Fix: Use a logic signal generator to test the module’s output at 5V, 12V, and 24V. Adjust R1 until the digital reading matches the input voltage.
Technical Deep Dive & Overview​
The DS3800NISB1F1E is a signal isolation card​ designed specifically for GE Mark IV turbine control systems. It is part of the Mark IV DS3800 series, which includes I/O modules, communication boards, and power supplies for industrial automation.
How It Works:
  1. Signal Acquisition: The module receives a high-voltage/current signal from a field device (e.g., a proximity switch detecting a turbine blade).
  2. Filtering: Built-in low-pass filters remove high-frequency noise (above 10 kHz) from the signal.
  3. Isolation: An optocoupler isolates the field device from the TCU, blocking voltage spikes and ground loops.
  4. Conversion: The filtered signal is converted to a 5V DC logic signal compatible with the TCU.
  5. Communication: The digital data is transmitted to the TCU via the VMEbus (Rev. C.1) or RS-485 (Modbus RTU) interface.
Key Components:
  • Programmable Jumpers: Allow field technicians to configure the module for different signal types.
  • Trimmed Resistor: Fine-tunes the input threshold for precise signal detection.
  • EMI Shield: A metal enclosure around the circuit board reduces electromagnetic interference from nearby motors or transformers.
  • Status LEDs: Indicate power (green), input signal (yellow), and faults (red) for quick diagnostics.
Failure Modes:
  • Optocoupler Degradation: Prolonged exposure to high temperatures or humidity can degrade optocouplers, reducing isolation performance.
  • Jumper Corrosion: Moisture in turbine halls can corrode jumper pins, leading to incorrect configuration.
  • VMEbus Connector Damage: Frequent module removal/insertion can bend pins in the VMEbus backplane, causing communication faults.
Diagnostic Tips:
  • Use a multimeter to check the field device’s output voltage (should match the jumper setting).
  • Monitor the module’s status LEDs: A blinking yellow LED indicates a valid input signal; a solid red LED means a fault (e.g., no input or overvoltage).
  • Use an oscilloscope to view the signal at the module’s input terminals (should be a clean square wave with no noise).
This documentation provides a comprehensive overview of the GE DS3800NISB1F1E signal isolation card, emphasizing its role in turbine control systems, technical specifications, and practical applications. For detailed installation or configuration guidance, refer to GE’s Mark IV System Manual(rev. 5.0) or contact a GE authorized representative.
