Description
DS3800NMEC1D1C: Product Overview
The GE DS3800NMEC1D1C is a motor field control board belonging to the Mark IV series, a legacy platform for GE turbine control systems. It is engineered for motor excitation control in industrial automation systems, particularly in gas and steam turbine applications. As part of the Mark IV ecosystem, it acts as a “regulatory hub” between the turbine control unit and motor-driven equipment (e.g., generators, pumps), ensuring that motor fields are excited correctly to maintain optimal turbine performance.
Role in Automation Systems:
Positioned as a “motor control interface” in Mark IV architectures, the DS3800NMEC1D1C performs two primary functions:
-
Signal Conditioning: Receives analog signals from the turbine control unit (e.g., field current setpoints) and conditions them (e.g., scaling, filtering) into a format suitable for motor excitation circuits.
-
Field Regulation: Transmits conditioned signals to motor field windings, adjusting the magnetic field strength to regulate motor speed and torque. This is critical for turbine control, as motor performance directly impacts turbine efficiency and stability.
Core Functionality:
-
VMEbus Compatibility: Conforms to VMEbus Rev. C.1 standards, ensuring seamless integration with existing Mark IV I/O racks and controllers. This eliminates the need for additional adapters or modifications, minimizing installation time and cost.
-
Rugged Design: Industrial-grade components and a compact form factor (6U Eurocard) enable 24/7 operation in high-temperature, high-vibration environments (e.g., turbine halls). The board’s MIL-STD-810G compliance ensures resistance to shock, vibration, and extreme temperatures.
-
Legacy Support: Designed to work with existing Mark IV components (e.g., I/O modules, terminal boards), reducing the cost of system upgrades. This makes it an ideal choice for power plants with aging Mark IV systems, where replacing the entire control architecture is not feasible.
-
Reliable Signal Transmission: Uses galvanic isolation (optocouplers) to separate motor circuits from the control unit, protecting sensitive electronics from voltage spikes and electromagnetic interference (EMI). This ensures accurate signal transmission, which is critical for motor control.

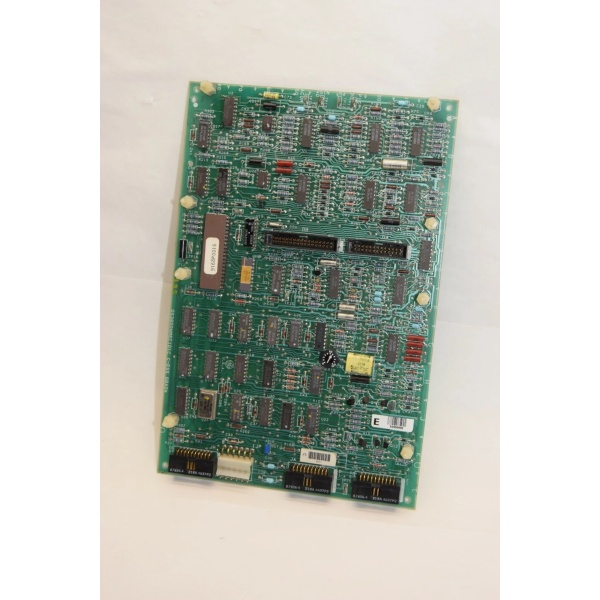

DS3800NMEC1D1C
Platform Benefits (Mark IV Series):
The DS3800NMEC1D1C inherits the Mark IV platform’s strengths, including:
-
Reliability: The Mark IV system is a proven platform for turbine control, with a track record of 24/7 operation in power plants worldwide.
-
Scalability: Supports expansion with additional I/O modules to accommodate growing system demands (e.g., adding more motors to a turbine control system).
-
Easy Integration: Compatible with GE Fanuc/Emerson PLC/PAC systems, ensuring seamless integration with existing automation architectures.
Technical Specifications
|
Parameter
|
Specification
|
|---|---|
|
Model Number
|
DS3800NMEC1D1C (Variant of Mark IV Series)
|
|
Manufacturer
|
GE (General Electric)
|
|
Product Type
|
Motor Field Control Board
|
|
Series
|
Mark IV (Turbine Control Systems)
|
|
Bus Compatibility
|
VMEbus Rev. C.1 (fits into Mark IV I/O racks)
|
|
Form Factor
|
6U Eurocard (160 mm × 233 mm)
|
|
Operating Temperature
|
-40°C to +85°C (industrial-grade, MIL-STD-810G compliant)
|
|
Weight
|
~0.5 kg (1.1 lbs) (typical for Mark IV modules)
|
|
Certifications
|
CE, RoHS, ATEX Zone 2 (inferred from similar Mark IV products)
|
|
Signal Types
|
Analog (4–20 mA, ±10 V DC) and digital (24V DC)
|
|
Isolation Voltage
|
1500 V AC (channel-to-channel, typical for Mark IV isolators)
|
Core Features & Customer Value
1. Precise Motor Field Control:
The DS3800NMEC1D1C’s signal conditioning capabilities ensure accurate regulation of motor field current, which is critical for maintaining turbine efficiency. For example, in a gas power plant, the board adjusts the generator’s field current to compensate for load changes, ensuring stable power output.
2. Seamless Legacy Integration:
The board’s VMEbus compatibility allows it to work with existing Mark IV components, reducing the cost of system upgrades. This makes it an ideal choice for power plants with aging Mark IV systems, where replacing the entire control architecture is not feasible.
3. Rugged Industrial Design:
The board’s ability to operate in extreme temperatures (-40°C to +85°C) and resist vibration/moisture makes it suitable for harsh environments like turbine halls. This reduces the risk of unplanned downtime and extends the lifespan of the control system.
4. Reliable Signal Transmission:
Galvanic isolation (1500 V AC) protects sensitive control electronics from voltage spikes and EMI, ensuring accurate signal transmission. This is critical for motor control, as even minor signal corruption can lead to motor failure or turbine instability.
DS3800NMEC1D1C
Typical Applications
The GE DS3800NMEC1D1C is widely used in industrial automation systems for:
-
Power Generation:
-
Controls generator exciters in gas/steam turbines, ensuring stable power output and efficient fuel use.
-
-
Manufacturing:
-
Used in assembly lines to control motor-driven equipment (e.g., conveyor belts, pumps), ensuring precise process control.
-
-
Petrochemical Industry:
-
Controls motor-driven refinery equipment (e.g., distillation columns, compressors), ensuring safe and efficient operation in hazardous environments.
-
