Description
System Architecture & Operational Principle

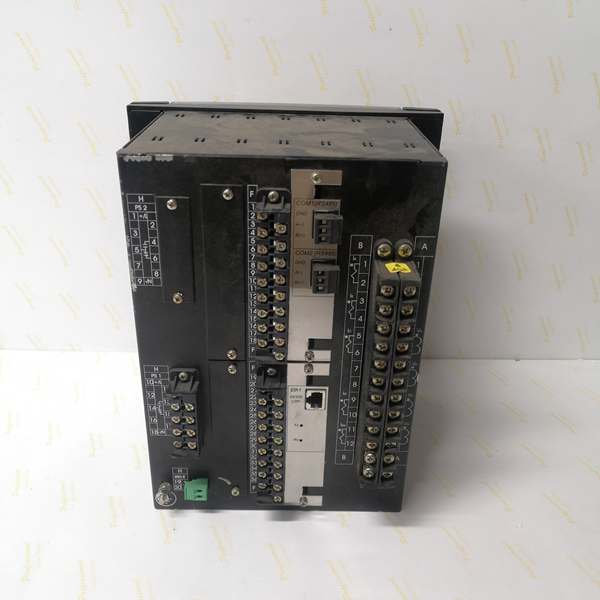

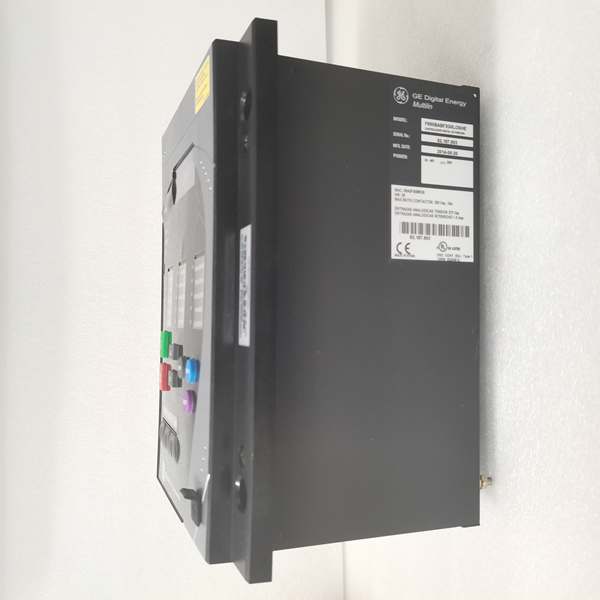

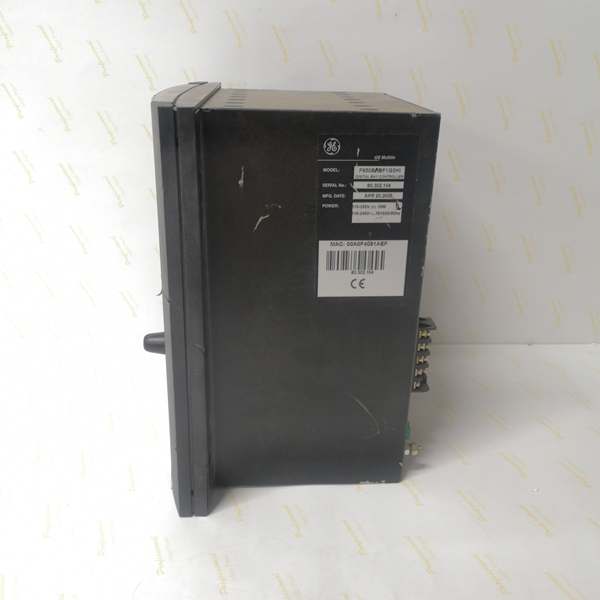

The GE F650CABF2G1HI10NBNA is a rack-mounted digital bay controller (1/2 rack width, panel mount) designed for deployment in substation control cabinets (Purdue Model Level 2). It acts as the “brain” of the feeder protection system, receiving analog signals (current/voltage from CTs/VTs) and digital signals (status from circuit breakers, switches) from the field. These signals are processed by an internal microprocessor, which executes protection algorithms (e.g., overcurrent, earth fault) and generates control commands (e.g., trip signals to circuit breakers).
Upstream, it connects to SCADA systems or substation automation systems via Ethernet (10/100 Base TX) or serial (RS485) links for remote monitoring and configuration. Downstream, it outputs trip/close commands to circuit breakers and status signals to local HMIs or remote operators. The modular I/O design (Slot F for 8DI/8DO) allows customization for specific applications, while the wide auxiliary voltage range (110–250 VDC / 120–230 VAC) ensures compatibility with diverse power supplies.
A key advantage is its compliance with industry-standard communication protocols (Modbus, DNP 3.0, IEC 60870-5-104), which enables seamless integration with legacy and modern substation automation systems. The graphic display with standard symbols (inferred from similar models) provides local access to real-time values (current, voltage) and fault reports, reducing reliance on external devices for basic operations.
Core Technical Specifications
-
Physical Interface: 1/2 rack width (96mm), panel mount
-
Signal Type: Analog (current/voltage) + Digital (status/control)
-
Channel Density: 8 digital inputs, 8 digital outputs, 2 trip/close circuit supervision circuits (Slot F)
-
Communication Bus: Ethernet (10/100 Base TX), RS485 (Modbus/DNP3.0)
-
Environmental Tolerance: Operating temperature: -40°C to +70°C; storage: -40°C to +85°C
-
Power Draw: 30W (max) @ 110–250 VDC / 120–230 VAC
-
Protection Functions: Overcurrent, earth fault, directional, distance, breaker failure
-
Measurement Accuracy: ±0.5% (voltage/current), ±0.1 Hz (frequency)
-
Certifications: IEC 61850, IEEE C37.90, ANSI/IEEE standards
Customer Value & Operational Benefits
Reduced Downtime with Advanced Protection
The F650CABF2G1HI10NBNA’s high-speed overcurrent protection (trip time <10 ms) and arc flash detection minimize equipment damage during faults. For example, in a distribution substation, it can quickly isolate a faulted feeder, preventing cascading outages and reducing downtime by up to 30%.
Simplified Integration with Existing Systems
With support for Modbus, DNP 3.0, and IEC 60870-5-104, the relay integrates seamlessly with legacy SCADA systems. A utility company in the Midwest reported a 25% reduction in integration time when upgrading from an older electromechanical relay to the F650 series.
Lower Maintenance Costs via Modular Design
The draw-out construction allows technicians to replace the relay without disturbing field wiring, cutting maintenance time by 50%. Additionally, the event log (stores up to 1000 events) and waveform capture simplify troubleshooting, reducing the need for expensive diagnostic tools.
Field Engineer’s Notes (From the Trenches)
When installing the F650CABF2G1HI10NBNA, always verify the auxiliary voltage before powering up. I once worked on a project where the site supplied 250V AC instead of the required 120V AC—luckily, the relay’s wide voltage range (120–230V AC) prevented damage, but it caused unexpected behavior until we corrected the supply.Another gotcha: grounding the shield of the RS485 cable is critical. I’ve seen intermittent communication faults traced to ungrounded shields, which pick up electromagnetic interference from nearby power lines. Use a shielded twisted-pair cable with the shield connected to the relay’s ground terminal.For troubleshooting, start with the LED indicators on the front panel: a steady green light means power is good, while a flashing red light indicates a fault (e.g., communication loss). The event log (accessible via the serial port) will tell you exactly what happened—don’t skip this step!
Real-World Applications
-
Distribution Substation Feeder ProtectionThe F650CABF2G1HI10NBNA monitors current and voltage on a 13.8 kV feeder, detecting overcurrent and earth faults. When a fault occurs, it sends a trip signal to the circuit breaker, isolating the faulted section. The breaker failure protection (50BF) ensures that if the breaker fails to trip, a backup trip signal is sent to adjacent breakers.
-
Industrial Motor Control Center (MCC)In a manufacturing plant, the relay protects a 480V motor feeder from overcurrent and locked rotor conditions. The thermal image function (49) tracks motor temperature, preventing overheating and extending motor life. The Modbus TCP interface allows the plant’s SCADA system to monitor motor status remotely.
High-Frequency Troubleshooting FAQ

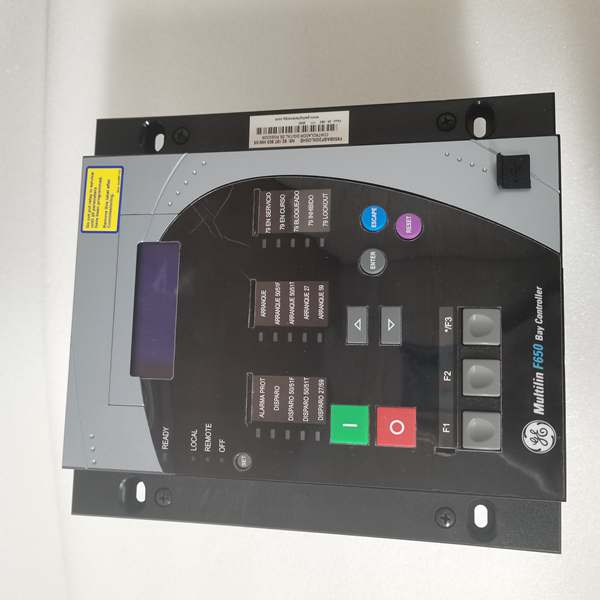

Q: What do the LED indicators on the F650CABF2G1HI10NBNA mean?
A: The front panel has two LEDs: green (power/communication) and red (fault). A steady green light indicates the relay is powered and communicating with the SCADA system. A flashing red light means a fault (e.g., overcurrent, communication loss)—check the event log via the serial port for details.
Q: Can the F650CABF2G1HI10NBNA be replaced with a newer model like the F650BABF1G0HI?
A: Yes, but verify compatibility with the existing system. The F650BABF1G0HI has a larger graphic display (instead of basic) and supports IEC 61850 Edition 2, but the I/O configuration (8DI/8DO) is the same. Ensure the new relay’s communication protocols (e.g., Modbus TCP) match the SCADA system.
Q: How do I troubleshoot a communication fault with the SCADA system?
A: First, check the Ethernet cable (use a cable tester to verify continuity). Next, confirm the IP address (via the serial port) matches the SCADA system’s configuration. If using RS485, check the baud rate (9600 bps default) and termination resistors (120 ohms at each end of the bus).
Q: What is the maximum distance for the RS485 communication?
A: The F650CABF2G1HI10NBNA supports RS485 up to 1200 meters (4000 feet) with a shielded twisted-pair cable. For longer distances, use a fiber optic converter (available as an option).
