Description
System Architecture & Operational Principle
The GE H201CI-1 is a single-channel controller designed to work exclusively with the H201Ti Intelligent Transmitter, forming a compact DGA system for power transformers. Here’s how it fits into the architecture:
1. Physical & Functional Role
The H201CI-1 is typically mounted in a NEMA-4X enclosure (weatherproof) near the transformer, connected to the H201Ti via a 4-conductor shielded cable (max length: 1300 meters). The H201Ti, installed directly on the transformer’s oil sampling valve, measures dissolved gases (hydrogen, methane, acetylene, etc.) using a gas-permeable membrane and electrochemical sensors.
2. Data Flow & Communication
-
Upstream: Receives raw gas concentration data from the H201Ti (via the 4-conductor cable).
-
Processing: Converts analog signals to digital values and applies algorithms to detect gas trends (e.g., rate-of-change for hydrogen).
-
Downstream:
-
Local Outputs: Drives a 7-segment LED display (shows gas concentration in ppm) and two alarm indicators (Hi/Hi-Hi gas levels).
-
Remote Communication: Sends data to a SCADA system or laptop via RS-232 (for configuration) or RS-485 (for daisy-chaining multiple controllers).
-
3. Key Advantages
-
Real-Time Monitoring: Eliminates the need for manual oil sampling, providing instant feedback on transformer health.
-
Fault Diagnosis: The H201Ti’s 100% response to composite gases (hydrogen to carbon dioxide) helps identify incipient faults (e.g., overheating, arcing) before they escalate.
-
Flexibility: Jumper-configurable analog outputs (0-1mA/4-20mA) allow integration with legacy monitoring systems.

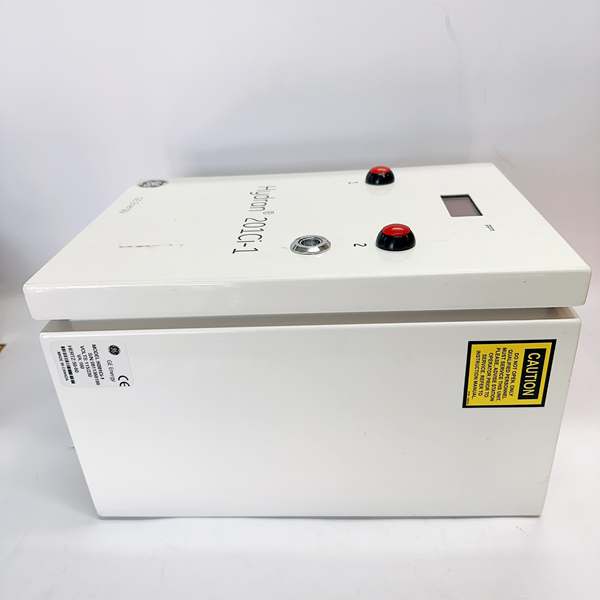

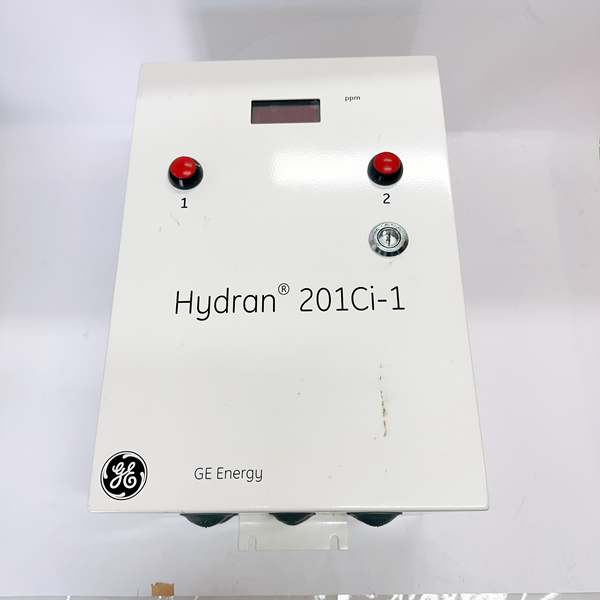

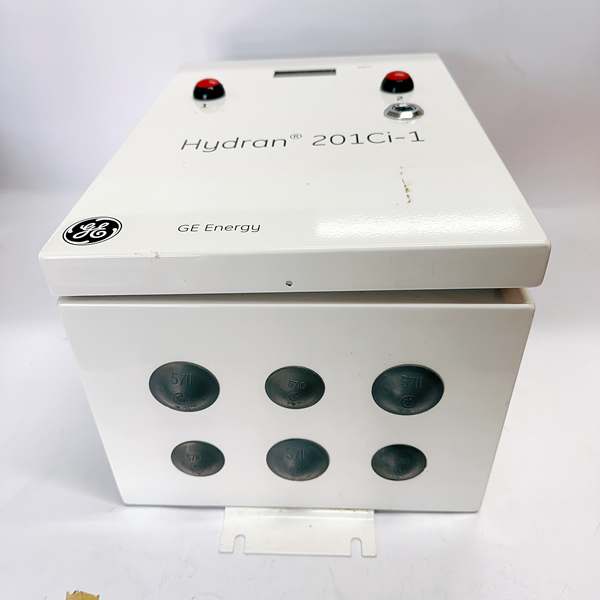

GE H201CI-1
Core Technical Specifications
|
Attribute
|
Value
|
|---|---|
|
Compatibility
|
H201Ti Intelligent Transmitter (1:1)
|
|
Analog Outputs
|
0-1mA (non-isolated); 4-20mA (isolated, jumper-selectable)
|
|
Communication Ports
|
RS-232 (PC/modem); RS-485 (daisy-chain, max 32 nodes)
|
|
Operating Temperature
|
-20°C to +60°C (storage: -40°C to +85°C)
|
|
Power Supply
|
110-240V AC (±10%); 50/60Hz
|
|
Alarm Contacts
|
SPDT (Form C) for gas Hi/Hi-Hi; 125VA @ 250V AC
|
|
Display
|
7-segment LED (0-1999 ppm); 2 alarm LEDs (Hi/Hi-Hi)
|
|
Enclosure Rating
|
NEMA-4X (weatherproof, dustproof)
|
Customer Value & Operational Benefits
1. Early Fault Detection
The H201CI-1’s real-time gas monitoring helps utilities and industrial users identify transformer faults (e.g., winding overheating, core insulation breakdown) before they cause outages. For example, a sudden increase in hydrogen concentration (a byproduct of arcing) triggers an immediate alarm, allowing technicians to investigate and repair the transformer proactively.
2. Reduced Maintenance Costs
By eliminating manual oil sampling (which requires downtime and labor), the H201CI-1 cuts maintenance costs by up to 50%. The system’s self-diagnostic feature (tests sensors, cables, and power supply on startup) further reduces troubleshooting time.
3. Seamless Integration
The RS-485 daisy-chain capability allows users to connect up to 32 H201CI-1 controllers to a single SCADA system, making it ideal for substations with multiple transformers. The jumper-configurable analog outputs (0-1mA/4-20mA) ensure compatibility with legacy monitoring equipment.
Field Engineer’s Notes (From the Trenches)
When installing the H201CI-1, always use shielded twisted-pair cable for the H201Ti connection—unshielded cables can pick up electromagnetic interference (EMI) from nearby power lines, leading to false gas readings. I once worked on a substation where intermittent EMI caused the H201CI-1 to report a “gas Hi” alarm even though the transformer was healthy. Switching to shielded cable fixed the issue.Another gotcha: calibrate the H201Ti annually using a certified gas mixture. The H201CI-1 relies on the H201Ti’s accuracy, and drift over time can lead to missed faults. Most utilities schedule calibration during routine transformer maintenance.For troubleshooting, start with the LED display: if it shows “Err” (error), check the H201Ti’s power supply and cable connections. The H201CI-1’s self-diagnostic log (accessible via RS-232) will tell you exactly what’s wrong—don’t skip this step!GE H201CI-1
Real-World Applications
1. Power Utility Substations
A Midwest utility uses H201CI-1 controllers to monitor 138kV transformers. In 2022, the system detected a hydrogen spike in one transformer, indicating a loose connection in the winding. Technicians repaired the connection before it caused a failure, avoiding a $500k outage.
2. Industrial Manufacturing Plants
A Texas refinery uses H201CI-1 controllers to monitor transformers powering its distillation columns. The system’s rate-of-change alarms (e.g., hydrogen increasing by 10 ppm/hour) helped identify a cooling system failure in a transformer, preventing overheating and extending the transformer’s lifespan by 3 years.
High-Frequency Troubleshooting FAQ
Q: What does the “Err” message on the H201CI-1 display mean?
A: The “Err” message indicates a communication fault between the H201CI-1 and H201Ti. Check the 4-conductor cable for breaks or loose connections. If the cable is intact, verify that the H201Ti’s power supply is within 110-240V AC.
Q: Can the H201CI-1 be used with non-GE transmitters?
A: No, the H201CI-1 is proprietary to GE’s H201Ti. For non-GE transmitters, consider the H201Ci-C (communication controller) or a third-party DGA system.
Q: How do I configure the analog output (0-1mA vs. 4-20mA)?
A: Use the jumper settings on the H201CI-1’s main board (see the user manual for details). For 4-20mA, set JP1 to “Isolated” and JP2 to “4-20mA”.
Q: What is the maximum distance for RS-485 communication?
A: The H201CI-1 supports RS-485 communication up to 1300 meters (4000 feet) with shielded twisted-pair cable. For longer distances, use a fiber optic converter.
Commercial Availability & Pricing
Please note: The listed price is not the actual final price. It is for reference only and is subject to appropriate negotiation based on current market conditions, quantity, and availability.
