Description
System Architecture & Operational Principle
The GE IC200ALG331 is a 4-channel analog output module within the GE VersaMax I/O platform, designed for Level 1 (Device) or Level 2 (Control) of the Purdue Model in industrial automation. It resides in control cabinets (mounted on a VersaMax baseplate) and serves as the bridge between higher-level controllers (e.g., GE VersaMax PLCs, ABB AC 800M DCS) and field devices (e.g., control valves, variable frequency drives (VFDs), dampers).
Upstream Communication
Receives digital output data (e.g., setpoints for flow, speed, or position) from the controller via the VersaMax backplane. The module uses a 16-bit digital-to-analog converter (DAC) to convert these digital values into analog signals.
Downstream Communication
Transmits analog signals (±10 VDC or 4–20 mA) to field devices via screw terminals or MIL connectors. The module’s isolated channels (250 VAC continuous, 1500 VAC for 1 minute) prevent ground loops and protect sensitive field devices from electrical noise.
Operational Advantages
-
High Precision: 16-bit resolution ensures accurate signal conversion (0.38 µA/count for 4–20 mA, 2.4 mV/count for ±10 VDC), critical for applications requiring tight process control (e.g., pharmaceutical manufacturing, chemical processing).
-
Flexible Configuration: Software-configurable output types (voltage/current) and fault behaviors (hold last state/default value) eliminate the need for physical jumpers, reducing installation time.
-
Hot-Swap Capability: Allows technicians to replace the module without shutting down the system, minimizing downtime during maintenance.
Core Technical Specifications
|
Attribute
|
Specification
|
|---|---|
|
Product Type
|
4-Channel Analog Output Module
|
|
Part Number
|
IC200ALG331
|
|
Number of Channels
|
4 (individually isolated)
|
|
Output Signal Range
|
±10 VDC (voltage); 4–20 mA (current) (software-configurable per channel)
|
|
Resolution
|
16-bit (65,536 steps)
|
|
Accuracy
|
±0.1% of full scale (at 25°C)
|
|
Update Rate
|
7 ms per channel (max)
|
|
Isolation
|
250 VAC continuous (channel-to-channel); 1500 VAC for 1 minute (channel-to-backplane)
|
|
Power Supply
|
5 VDC from VersaMax backplane (10 mA max consumption)
|
|
Operating Temperature
|
-40°C to +70°C (-40°F to 158°F)
|
|
Storage Temperature
|
-40°C to +85°C (-40°F to 185°F)
|
|
Humidity
|
5–95% non-condensing
|
|
Dimensions (W×H×D)
|
~110 mm × 66.8 mm × 50 mm (4.3 in × 2.6 in × 2.0 in) (approximate)
|
|
Weight
|
~0.3 kg (0.66 lbs)
|
|
Certifications
|
CE, UL, RoHS (compliant with EU directives)
|

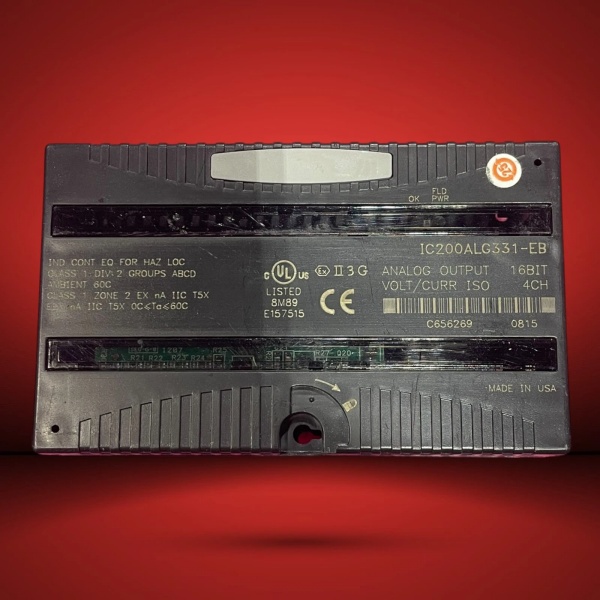

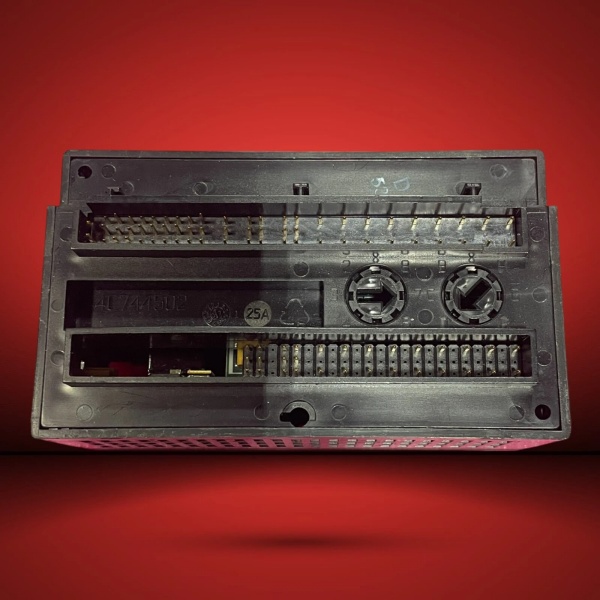

GE IC200ALG331
Customer Value & Operational Benefits
Enhanced Process Control Precision
The IC200ALG331’s 16-bit resolution and fast update rate (7 ms) enable real-time adjustment of field devices, reducing process variability and improving product quality. For example, a chemical plant using the module reported a 25% reduction in batch-to-batch variation by improving temperature control with precise analog outputs.
Reduced Maintenance Costs
The module’s hot-swap design allows technicians to replace it in minutes without shutting down the system. A manufacturing plant using the IC200ALG331 cut maintenance downtime by 40% compared to traditional non-hot-swappable analog output modules.
Cost-Effective Integration
Compatible with GE’s VersaMax PLCs and third-party controllers (e.g., Siemens S7-1200), the IC200ALG331 eliminates the need for custom interfaces. A water treatment plant using the module saved $10,000 in integration costs by retaining its existing PLC infrastructure.
Field Engineer’s Notes (From the Trenches)
When installing the IC200ALG331, always use shielded twisted-pair cables for analog outputs—unshielded cables can pick up electromagnetic interference (EMI) from nearby motors or power lines, leading to signal distortion. I once saw a site where a technician used unshielded cables, resulting in a 15% error rate in valve positioning. Switching to shielded cables eliminated the problem immediately.Another gotcha: verify the output type configuration—the module defaults to 4–20 mA, but if you need ±10 VDC, you must configure it via the VersaMax programming software (e.g., VersaPro). I’ve fixed countless “signal mismatch” errors by forgetting to adjust the output type.If the module’s “FAULT” LED illuminates, check the field power supply—the module requires a stable 18–30 VDC external supply for current outputs. I’ve seen cases where a faulty power supply (outputting 12 VDC) caused the module to enter a fault state. Use a multimeter to test the external power supply voltage before replacing the module.
Real-World Applications
-
Chemical Manufacturing:A chemical plant uses the IC200ALG331 to control the flow of reactants into a reactor. The module receives digital setpoints from a GE VersaMax PLC and outputs 4–20 mA signals to control valves, maintaining the correct reactant ratio for optimal product yield.
-
Power Generation:A power plant uses the IC200ALG331 to adjust the speed of its boiler feedwater pump. The module outputs ±10 VDC signals to a VFD, which controls the pump’s motor speed. The 16-bit resolution ensures precise speed control, improving energy efficiency by 10%.
-
Water Treatment:
A water treatment plant uses the IC200ALG331 to regulate the dosage of chemicals into the effluent. The module outputs 4–20 mA signals to metering pumps, adjusting the chemical flow based on pH sensor readings. The fast update rate (7 ms) ensures real-time adjustment, maintaining compliance with environmental regulations.
GE IC200ALG331
High-Frequency Troubleshooting FAQ
Q: What does the “FAULT” LED indicate on the GE IC200ALG331?
A: The red “FAULT” LED indicates a critical error, such as:
-
Field Power Loss: The external 18–30 VDC supply for current outputs is missing or unstable (check with a multimeter);
-
Open Circuit: A field device (e.g., valve) is disconnected or the wiring is faulty (use a multimeter to test the current signal);
-
Module Fault: The internal DAC or power supply is faulty (replace the module).
Q: Can the IC200ALG331 be used with non-GE controllers?
A: Yes, the module’s digital input is compatible with most controllers (e.g., Siemens S7-1200, Allen-Bradley CompactLogix). However, you may need to configure the controller’s output module to match the IC200ALG331’s signal type (e.g., 4–20 mA).
Q: How do I configure the IC200ALG331’s output type?
A: Use GE’s VersaPro software to configure the output type:
-
Open VersaPro: Launch the software and connect to the VersaMax PLC;
-
Select the IC200ALG331: Navigate to the “I/O Configuration” tab and select the module;
-
Set Output Type: Choose “Voltage” (±10 VDC) or “Current” (4–20 mA) for each channel;
-
Save Configuration: Click “Save” to apply the changes to the module’s memory.
Q: Why is the IC200ALG331’s output signal unstable?
A: Check three things first:
-
External Power Supply: Ensure the 18–30 VDC supply for current outputs is stable (use a multimeter to test);
-
Cables: Verify the shielded twisted-pair cables are not damaged (check for cuts or breaks);
-
Field Device: Ensure the field device (e.g., valve) is not faulty (test with a multimeter).
Commercial Availability & Pricing
Please note: The listed price is not the actual final price. It is for reference only and is subject to appropriate negotiation based on current market conditions, quantity, and availability.
