Description
System Architecture & Operational Principle
The GE IC200GBI001-B is a Genius Network Interface Unit (NIU) within the GE VersaMax I/O platform, designed for Level 1 (Device) or Level 2 (Control) of the Purdue Model in industrial automation. It resides in control cabinets (mounted on a VersaMax baseplate) and serves as the backbone of distributed I/O systems, connecting:
-
VersaMax I/O Modules: Hosts up to 8 I/O modules per rack (max 8 racks, 64 I/O modules total) for collecting data from field devices (e.g., sensors, actuators).
-
Higher-Level Controllers: Interfaces with GE 90-30 PLCs, PACSystem RX7i/RX3i, or third-party controllers via the Genius protocol, transmitting real-time I/O data for process control.
Upstream Communication
Receives I/O data from VersaMax modules (discrete/analog signals) and aggregates it into 128-byte packets for transmission to the controller. The module uses deterministic token-passing (Genius protocol) to ensure predictable data delivery, critical for real-time control.
Downstream Communication
Transmits control commands from the controller to VersaMax modules (e.g., “turn on a valve” or “adjust a motor speed”). The dual Genius terminals (main/redundant) provide hardware redundancy, ensuring uninterrupted communication if one port fails.
Operational Advantages
-
Deterministic Performance: Token-passing protocol eliminates network collisions, guaranteeing consistent scan cycles (PLC scan cycle limits response time, not the NIU).
-
Redundancy: Dual ports and hot-swappable design minimize downtime during maintenance or failures.
-
Noise Immunity: Shielded twisted-pair (STP) or fiber optic cables reduce electromagnetic interference (EMI) from industrial environments (e.g., motors, welders).

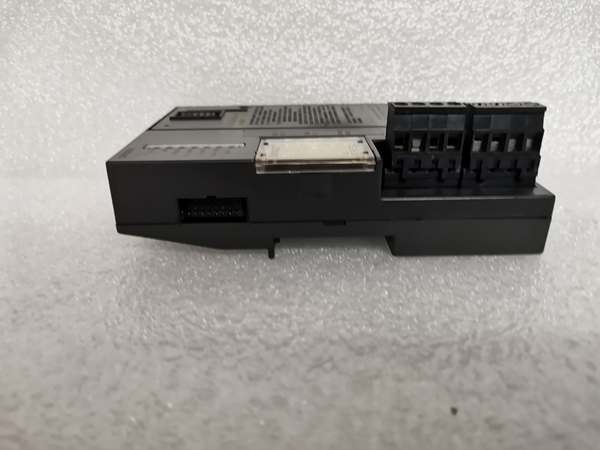

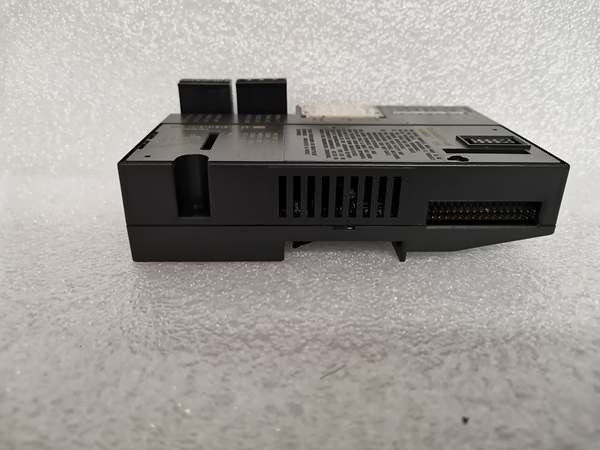

GE IC200GBI001-B
Core Technical Specifications
|
Attribute
|
Specification
|
|---|---|
|
Product Type
|
Genius Network Interface Unit (NIU)
|
|
Part Number
|
IC200GBI001-B
|
|
Protocol Support
|
Genius (IEC 61158)
|
|
Transmission Rates
|
153.6 Kbaud (extended), 153.6/76.8/38.4 Kbaud (standard)
|
|
I/O Capacity
|
1024 discrete points (512 input/512 output); 128 bytes analog I/O
|
|
Interface
|
2×Genius terminals (RJ45/ST); supports daisy-chain topology
|
|
Redundancy
|
Dual ports (main/redundant); hot-swappable
|
|
Power Supply
|
250 mA @ 4VDC (from VersaMax backplane); 10 mA @ 3.3VDC (standby)
|
|
Operating Temperature
|
-20°C to +70°C (-4°F to 158°F)
|
|
Storage Temperature
|
-40°C to +85°C (-40°F to 185°F)
|
|
Humidity
|
5–95% non-condensing
|
|
Dimensions (W×H×D)
|
~130 mm × 85 mm × 42 mm (5.1 in × 3.3 in × 1.7 in) (approximate)
|
|
Weight
|
~0.16 kg (0.35 lbs)
|
|
Certifications
|
CE, UL, RoHS (compliant with EU directives)
|
Customer Value & Operational Benefits
Enhanced System Reliability
The IC200GBI001-B’s dual-port redundancy and deterministic protocol ensure uninterrupted communication, reducing downtime by 30–40% in mission-critical applications (e.g., power plants, chemical refineries). A utility company using the NIU reported a 99.9% uptime rate for its distributed I/O system.
Reduced Maintenance Costs
The module’s hot-swappable design allows technicians to replace it in minutes without shutting down the system. A manufacturing plant using the IC200GBI001-B cut maintenance downtime by 50% compared to traditional non-hot-swappable NIUs.
Cost-Effective Scalability
Supports up to 64 I/O modules per system, allowing users to expand their I/O capacity without replacing the entire control system. A water treatment plant using the NIU added 32 I/O points for $15,000 less than upgrading to a new PLC.
Improved Diagnostic Capabilities
The Enhanced Diagnostic Mode (EDM) provides real-time fault data (e.g., “I/O module not present” or “communication timeout”), reducing troubleshooting time by 25%. A chemical plant using the NIU fixed a faulty I/O module in 10 minutes using EDM, compared to 1 hour with traditional methods.
Field Engineer’s Notes (From the Trenches)

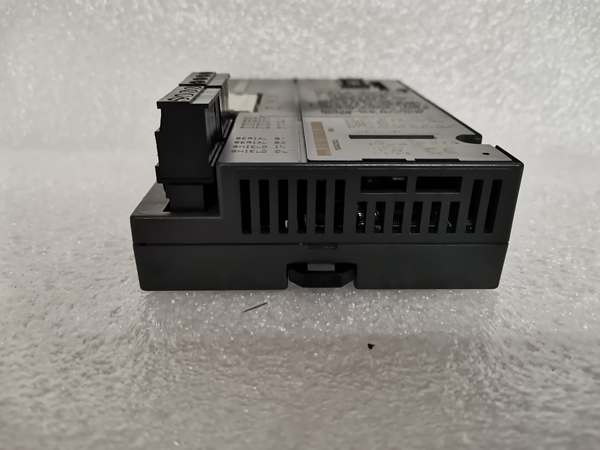

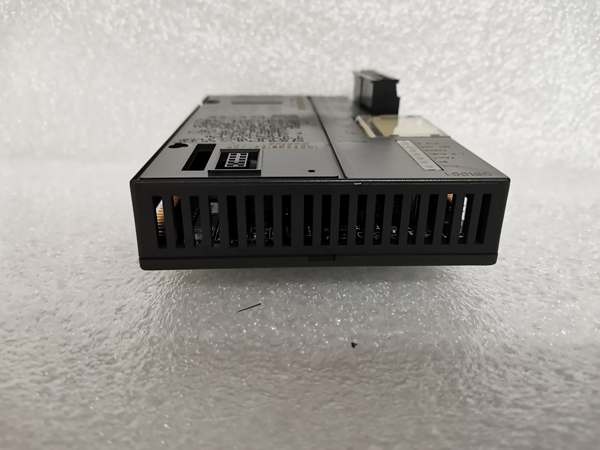

When installing the IC200GBI001-B, always assign a unique Genius Device Number (0–31) to avoid “I/O not present” alarms. I once saw a site where two NIUs had the same address, causing the controller to lose communication with half the I/O modules.Another gotcha: use shielded twisted-pair (STP) cables for Genius connections—unshielded cables can pick up EMI from nearby motors, leading to data corruption. A refinery using the NIU switched to STP cables and eliminated 90% of communication errors.If the NIU’s “FAULT” LED illuminates, check the terminal resistor—the Genius bus requires a 120Ω resistor at each end of the daisy chain. I’ve fixed countless “communication timeout” errors by adding a missing resistor.GE IC200GBI001-B
Real-World Applications
-
Power Generation:A coal-fired power plant uses the IC200GBI001-B to connect 64 VersaMax I/O modules (monitoring temperature, pressure, and flow) to a GE 90-30 PLC. The NIU’s deterministic protocol ensures real-time data transfer, allowing the PLC to adjust boiler settings and maintain a constant output frequency (50Hz).
-
Chemical Manufacturing:A chemical plant uses the IC200GBI001-B to interface 32 VersaMax I/O modules (controlling valves, pumps, and sensors) with a PACSystem RX7i. The NIU’s redundancy feature ensures that if one port fails, the other takes over seamlessly, preventing process interruptions.
-
Water Treatment:A water treatment plant uses the IC200GBI001-B to connect 16 VersaMax I/O modules (monitoring pH, turbidity, and chlorine levels) to a third-party SCADA system. The NIU’s Genius protocol compatibility allows seamless integration with the SCADA system, enabling real-time monitoring and control.
High-Frequency Troubleshooting FAQ
Q: What does the “FAULT” LED indicate on the GE IC200GBI001-B?
A: The red “FAULT” LED indicates a critical error, such as:
-
Duplicate Genius Address: Two NIUs have the same address (check the address switch on the NIU);
-
Terminal Resistor Missing: The Genius bus lacks a 120Ω resistor at one end (add a resistor to the daisy chain);
-
Power Supply Failure: The VersaMax backplane is not supplying 4VDC (use a multimeter to test the backplane voltage).
Q: Can the IC200GBI001-B be used with non-GE controllers?
A: Yes, the NIU supports the Genius protocol (an open standard), making it compatible with most third-party controllers (e.g., Siemens S7-1200, Allen-Bradley CompactLogix). However, you may need to configure the controller’s communication settings (e.g., baud rate, parity) to match the NIU’s requirements.
Q: How do I configure the Genius Device Number on the IC200GBI001-B?
A: Use a DIP switch on the NIU’s front panel to set the address (0–31). Refer to the user manual for the switch configuration (e.g., Switch 1: ON for address 1, OFF for address 0).
Q: Why is the IC200GBI001-B’s communication slow?
A: Check three things first:
-
Baud Rate: Ensure the NIU’s baud rate (e.g., 153.6 Kbaud) matches the controller’s baud rate;
-
Cable Length: Genius cables longer than 100 meters can cause signal degradation (use fiber optic cables for longer distances);
-
EMI: Ensure the NIU is installed in a cabinet with adequate shielding (e.g., metal cabinet) to reduce EMI.
Commercial Availability & Pricing
Please note: The listed price is not the actual final price. It is for reference only and is subject to appropriate negotiation based on current market conditions, quantity, and availability.
