Description
System Architecture & Operational Principle
The GE IC200PNS001 is a PROFINET network interface unit within the GE VersaMax I/O platform, designed for Level 1 (Device) or Level 2 (Control) of the Purdue Model in industrial automation. It resides in control cabinets (mounted on a VersaMax baseplate) and serves as the backbone of distributed I/O systems, connecting:
-
VersaMax I/O Modules: Hosts up to 8 I/O modules per rack (e.g., digital/analog input/output modules) for collecting data from field devices (e.g., sensors, actuators).
-
Higher-Level Controllers: Interfaces with GE PACSystem RX3i/RX7i or Series 90-70 PLCs via PROFINET, transmitting real-time I/O data for process control.
Upstream Communication
Receives I/O data from VersaMax modules (discrete/analog signals) and aggregates it into 2880-byte packets for transmission to the controller. The module uses PROFINET V2.2 (an open industrial protocol) to ensure seamless integration with third-party devices.
Downstream Communication
Transmits control commands from the controller to VersaMax modules (e.g., “turn on a valve” or “adjust a motor speed”). The dual RJ45 ports support daisy-chain topology (without additional switches) and ring topology (for redundancy), ensuring reliable communication in harsh industrial environments.
Operational Advantages
-
High Speed: 10/100 Mbps transmission rate supports real-time data transfer (1ms update rate) for critical applications (e.g., turbine control, chemical processing).
-
Redundancy: Ring topology allows the network to reroute traffic if a cable or port fails, minimizing downtime.
-
Flexibility: Compatible with multiple controller platforms (GE and third-party) and supports various network topologies (linear, star, ring).
Core Technical Specifications
|
Attribute
|
Specification
|
|---|---|
|
Product Type
|
PROFINET Network Interface Unit (VersaMax Series)
|
|
Part Number
|
IC200PNS001
|
|
Protocol Support
|
PROFINET V2.2 Class A IO-Device
|
|
Ports
|
2×RJ45 (10/100 Mbps); supports daisy-chain/ring topology
|
|
I/O Capacity
|
2880 bytes total (1440 discrete in/1440 discrete out; 1440 analog in/1440 analog out)
|
|
Update Rate
|
Configurable (1ms, 2ms, 4ms, 8ms, 16ms, 32ms, 64ms, 128ms, 256ms, 512ms)
|
|
Power Supply
|
5V DC from VersaMax backplane (0.6A max consumption)
|
|
Operating Temperature
|
-20°C to +60°C (-4°F to 140°F)
|
|
Storage Temperature
|
-40°C to +85°C (-40°F to 185°F)
|
|
Humidity
|
5–95% non-condensing
|
|
Dimensions (W×H×D)
|
~134 mm × 132 mm × 50 mm (5.3 in × 5.2 in × 2.0 in) (approximate)
|
|
Weight
|
~0.5 kg (1.1 lbs)
|
|
Certifications
|
CE, UL, RoHS (compliant with EU directives)
|

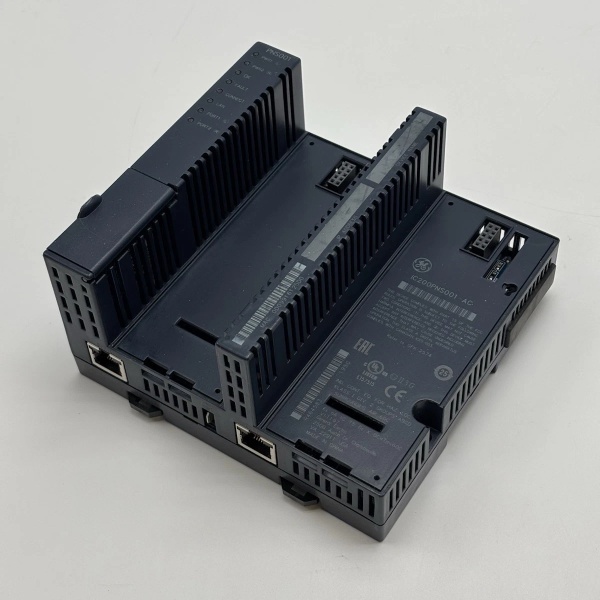

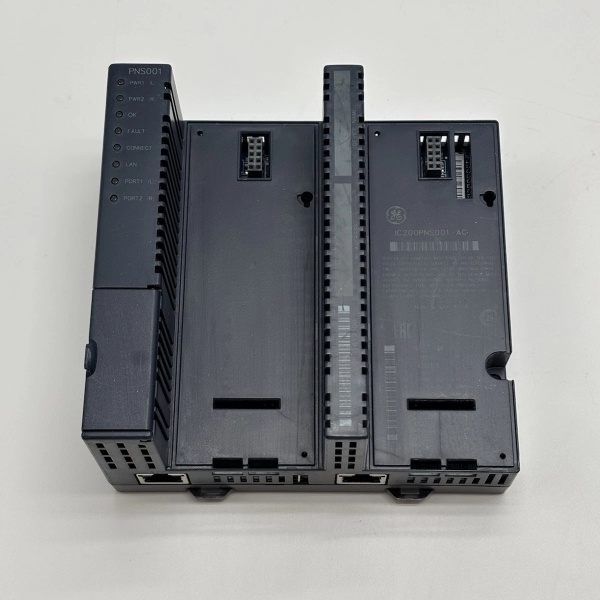

GE IC200PNS001
Customer Value & Operational Benefits
Enhanced System Reliability
The IC200PNS001’s ring topology redundancy and PROFINET protocol ensure uninterrupted communication, reducing downtime by 30–40% in mission-critical applications (e.g., power plants, chemical refineries). A utility company using the NIU reported a 99.9% uptime rate for its distributed I/O system.
Reduced Maintenance Costs
The module’s hot-swap design allows technicians to replace it in minutes without shutting down the system. A manufacturing plant using the IC200PNS001 cut maintenance downtime by 50% compared to traditional non-hot-swappable NIUs.
Cost-Effective Integration
Compatible with GE’s VersaMax PLCs and third-party controllers (e.g., Siemens S7-1200), the IC200PNS001 eliminates the need for custom interfaces. A water treatment plant using the module saved $10,000 in integration costs by retaining its existing PLC infrastructure.
Improved Diagnostic Capabilities
The module’s LED status indicators (power, OK, Connect) provide real-time feedback on its operation. A technician can quickly identify a “Connect” fault (e.g., loose cable) without using a multimeter, reducing troubleshooting time by 25%.
Field Engineer’s Notes (From the Trenches)
When installing the IC200PNS001, always use shielded twisted-pair (STP) cables for PROFINET connections—unshielded cables can pick up electromagnetic interference (EMI) from nearby motors or power lines, leading to data corruption. I once saw a site where a technician used unshielded cables, resulting in a 15% error rate in sensor data. Switching to STP cables eliminated the problem immediately.Another gotcha: verify the PROFINET device name—the module must have a unique name (e.g., “VersaMax_Rack1”) to avoid conflicts with other devices on the network. I’ve fixed countless “communication timeout” errors by forgetting to rename the module.If the module’s “OK” LED blinks amber, check the power supply—the VersaMax backplane may not be supplying 5V DC. Use a multimeter to test the backplane voltage before replacing the module.
Real-World Applications
-
Power Generation:A coal-fired power plant uses the IC200PNS001 to connect 8 VersaMax I/O modules (monitoring temperature, pressure, and flow) to a GE PACSystem RX7i PLC. The NIU’s 1ms update rate ensures real-time data transfer, allowing the PLC to adjust boiler settings and maintain a constant output frequency (50Hz).
-
Chemical Manufacturing:A chemical plant uses the IC200PNS001 to interface 16 VersaMax I/O modules (controlling valves, pumps, and sensors) with a Series 90-70 PLC. The NIU’s ring topology redundancy ensures that if one cable fails, the network reroutes traffic through the other port, preventing process interruptions.
-
Water Treatment:A water treatment plant uses the IC200PNS001 to connect 8 VersaMax I/O modules (monitoring pH, turbidity, and chlorine levels) to a third-party SCADA system. The NIU’s PROFINET protocol compatibility allows seamless integration with the SCADA system, enabling real-time monitoring and control.

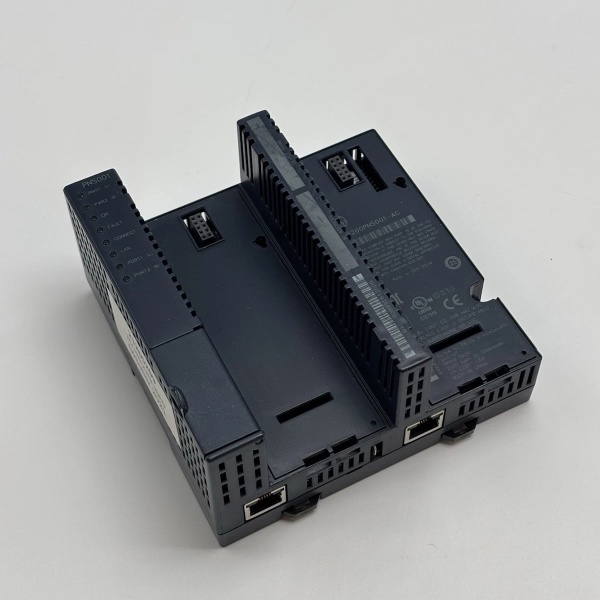

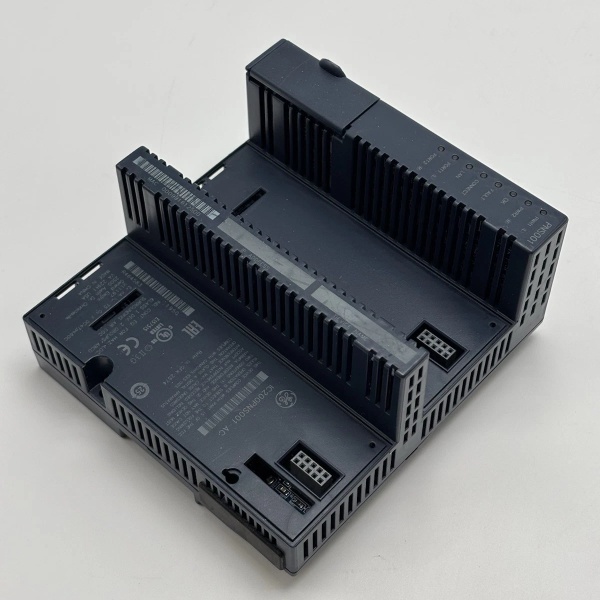

GE IC200PNS001
High-Frequency Troubleshooting FAQ
Q: What does the “OK” LED indicate on the GE IC200PNS001?
A: The green “OK” LED indicates normal operation. If it blinks amber, there is a power supply issue or terminal error. If it is off, the module is not receiving power or has a fatal fault.
Q: Can the IC200PNS001 be used with non-GE controllers?
A: Yes, the module supports the PROFINET protocol (an open standard), making it compatible with most third-party controllers (e.g., Siemens S7-1200, Allen-Bradley CompactLogix). However, you may need to configure the controller’s communication settings (e.g., IP address, subnet mask) to match the NIU’s requirements.
Q: How do I configure the PROFINET device name on the IC200PNS001?
A: Use GE’s Proficy Machine Edition software to configure the device name:
-
Open Proficy Machine Edition: Launch the software and connect to the PLC.
-
Select the IC200PNS001: Navigate to the “I/O Configuration” tab and select the module.
-
Set Device Name: Enter a unique name (e.g., “VersaMax_Rack1”) in the “PROFINET Device Name” field.
-
Save Configuration: Click “Save” to apply the changes to the module’s memory.
Q: Why is the IC200PNS001’s communication slow?
A: Check three things first:
-
Cable Length: PROFINET cables longer than 100 meters can cause signal degradation (use fiber optic cables for longer distances).
-
Network Congestion: Ensure the network is not overloaded with traffic (e.g., too many devices on the same segment).
-
Update Rate: Verify the update rate is set to the minimum required for the application (e.g., 1ms for critical control loops).
Commercial Availability & Pricing
Please note: The listed price is not the actual final price. It is for reference only and is subject to appropriate negotiation based on current market conditions, quantity, and availability.
