Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IC200PWR101D |
| Manufacturer | GE Fanuc |
| Product Category | Power Supply Module |
| Series | VersaMax |
| Input Voltage Range | 120/240 VAC |
| Output Voltage | 5 V DC and 3.3 V DC |
| Output Current | 5 V DC: 3 A; 3.3 V DC: 1.5 A |
| Power Efficiency | High efficiency design |
| Certifications | CE, UL |
| Operating Temperature Range | -20°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Dimensions (L×W×H) | 49 mm × 133.4 mm × 39 mm |
| Weight | 0.6 kg |

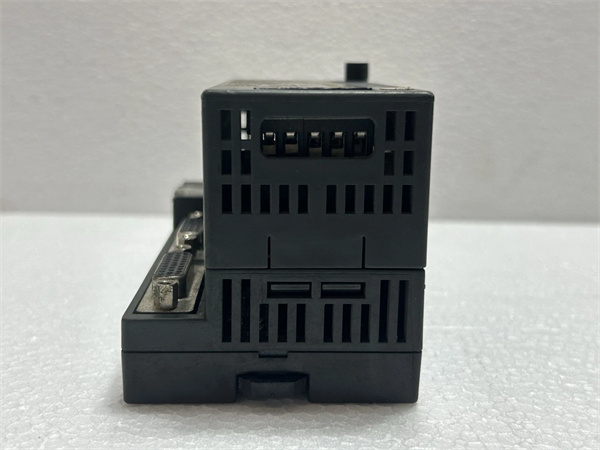

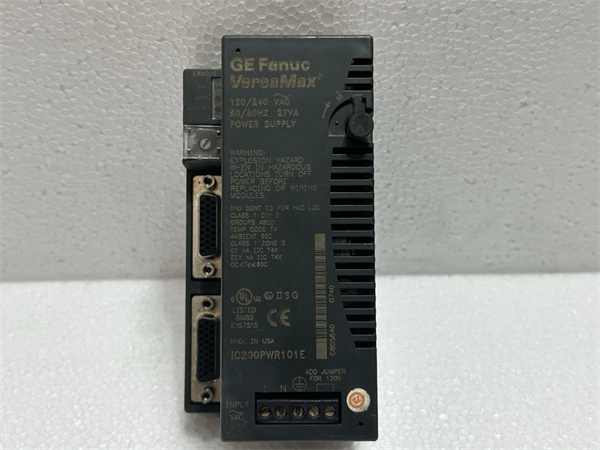

GE IC200PWR101D
Product Introduction
The GE IC200PWR101D is a high-performance power supply module designed for the VersaMax series of programmable logic controllers (PLCs). It provides reliable and efficient power management, ensuring stable operation even under fluctuating load conditions. This module is essential for providing consistent power to all connected components within the automation system, enabling smooth and uninterrupted operation.
Core Advantages and Technical Highlights
Wide Input Voltage Range: The IC200PWR101D can handle an input voltage range of 120/240 VAC, ensuring compatibility with various industrial power supplies. This wide tolerance reduces the risk of power-related disruptions and provides a stable power source for connected devices.
High Efficiency: The module boasts a high efficiency design, minimizing power losses during the conversion process. This not only reduces energy consumption but also decreases heat generation, leading to increased reliability and a longer lifespan.
Advanced Protection Features: The IC200PWR101D includes overvoltage, undervoltage, and short-circuit protection, safeguarding connected equipment from potential damage. These features ensure robust performance in demanding industrial settings.
Robust Design: Built with high-quality materials, the module is designed for long-lasting performance and minimal maintenance. It operates reliably within a wide temperature range and features efficient thermal management.
Compact Size: The module is designed for compactness and easy integration into existing systems. Its small size allows for efficient use of space in control cabinets, which is especially beneficial in modern industrial settings where space optimization is key.

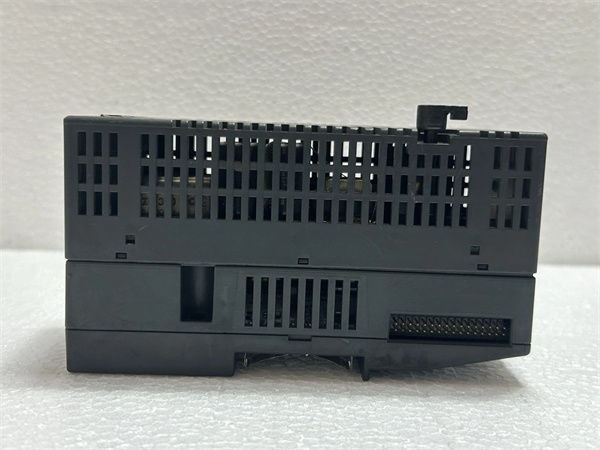

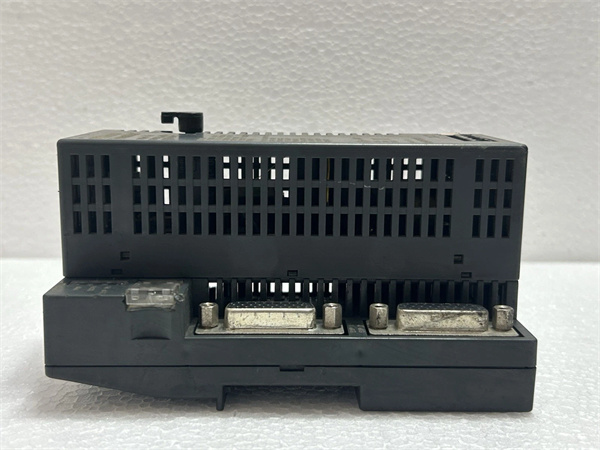

GE IC200PWR101D
Typical Application Scenarios
The GE IC200PWR101D is widely used in various industrial sectors, including:
-
Manufacturing Plants: Powers PLCs, sensors, and actuators on production lines, ensuring accurate control and monitoring.
-
Power Generation Plants: Provides power to control systems that monitor and manage electricity generation, transmission, and distribution.
-
Process Control Systems: Powers valves, pumps, and other equipment in chemical, pharmaceutical, and food processing industries.
Related Model Recommendations
-
IC200PWR001: A similar power supply module with a 24V DC output, suitable for applications requiring only a 24V DC power source.
-
IC200PWR012D: Another power supply module with a 5V DC and 24V DC output, offering additional configuration options.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation: Ensure the input power supply falls within the specified 120/240 VAC range. The installation location should be clean, dry, and well-ventilated, with an ambient temperature between -20°C and +60°C. Mount the module securely on a DIN rail or panel, following the provided installation guidelines.
Maintenance Suggestions: Regularly inspect the module for physical damage, monitor output voltages using a multimeter, and check for abnormal heat generation or noises. Clean the module’s surface periodically to prevent dust accumulation, which can affect heat dissipation. If any issues are detected, refer to the product manual for troubleshooting steps or contact GE’s technical support.
Service and Guarantee Commitment
The GE IC200PWR101D is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. GE offers technical support and service to assist with installation, troubleshooting, and maintenance.
