Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IC3645LXCD1 |
| Manufacturer | GE Fanuc |
| Product Category | Power Controller and Forklift Control Card |
| Series | LX Series Control |
| Application | EV-100 Forklifts |
| Input Voltage Range | 120/240 VAC |
| Output Voltage | Programmable |
| Output Current | Programmable |
| Power Efficiency | High efficiency design |
| Certifications | CE, UL |
| Operating Temperature Range | -20°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Dimensions (L×W×H) | 152 mm × 102 mm × 51 mm |
| Weight | 0.75 kg |

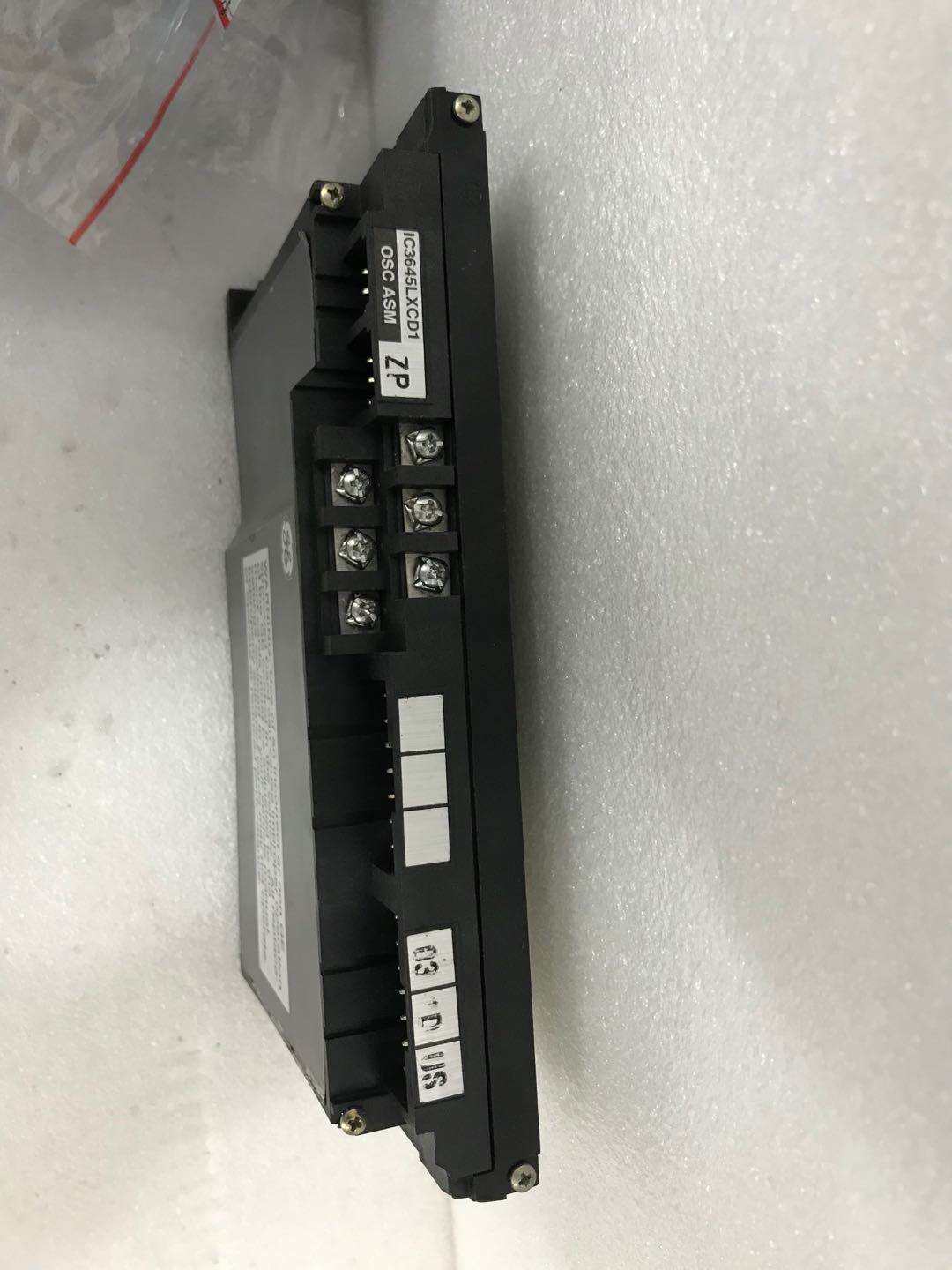

IC3645LXCD1
Product Introduction
The GE IC3645LXCD1 is a high-performance power controller and forklift control card designed for the EV-100 series of electric forklifts. It is part of the LX series control system and is known for its robust design and efficient power management.
Core Advantages and Technical Highlights
Programmable Output: The IC3645LXCD1 features programmable output voltage and current, allowing for customization to meet specific application requirements.
High Efficiency: The module is designed for high efficiency, ensuring long battery life and extended usage time for the forklift.
Advanced Diagnostics: The module includes advanced diagnostic tools, enabling quick identification and troubleshooting of issues.
Robust Construction: Built with high-quality materials, the IC3645LXCD1 is designed to withstand harsh industrial environments, including extreme temperatures, dust, and moisture.
Typical Application Scenarios
The GE IC3645LXCD1 is specifically designed for use in the EV-100 series of electric forklifts. It provides precise control and efficient power management, ensuring smooth and reliable operation of the forklift.

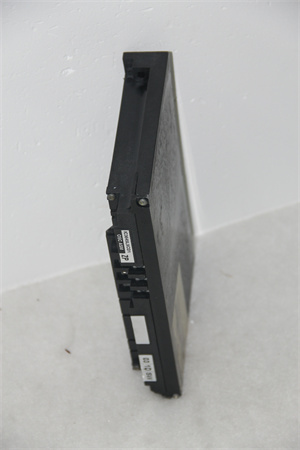

IC3645LXCD1
Related Model Recommendations
-
IC3645LXCD1TX: A variant with additional communication capabilities, suitable for applications requiring advanced networking.
-
IC3645LXCD1BF: A similar model with different firmware options, suitable for specific customization needs.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation: Ensure the input power supply falls within the specified 120/240 VAC range. The installation location should be clean, dry, and well-ventilated, with an ambient temperature between -20°C and +60°C. Mount the module securely on a DIN rail or panel, following the provided installation guidelines.
Maintenance Suggestions: Regularly inspect the module for physical damage, monitor output voltages using a multimeter, and check for abnormal heat generation or noises. Clean the module’s surface periodically to prevent dust accumulation, which can affect heat dissipation. If any issues are detected, refer to the product manual for troubleshooting steps or contact GE’s technical support.
Service and Guarantee Commitment
The GE IC3645LXCD1 is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. GE offers technical support and service to assist with installation, troubleshooting, and maintenance.
